Control Units
CONTROL UNITS LOCATION
| Component | Location | ||
|---|---|---|---|
| Electronic Control Units (ECU) | |||
| ABS | Under left front floorboard. See Figure. | ||
| A/C | Behind A/C control panel. | ||
| Anti-Theft/Door Lock | Behind instrument cluster. See Figure. | ||
| Cooling Fan | Under right side of dash, behind glove compartment. See Figure. | ||
| Cruise Control ECU | Behind left side of dash. See Figure. | ||
| Elec. Controlled Trans. (ECT) | Under left front floorboard. See Figure. | ||

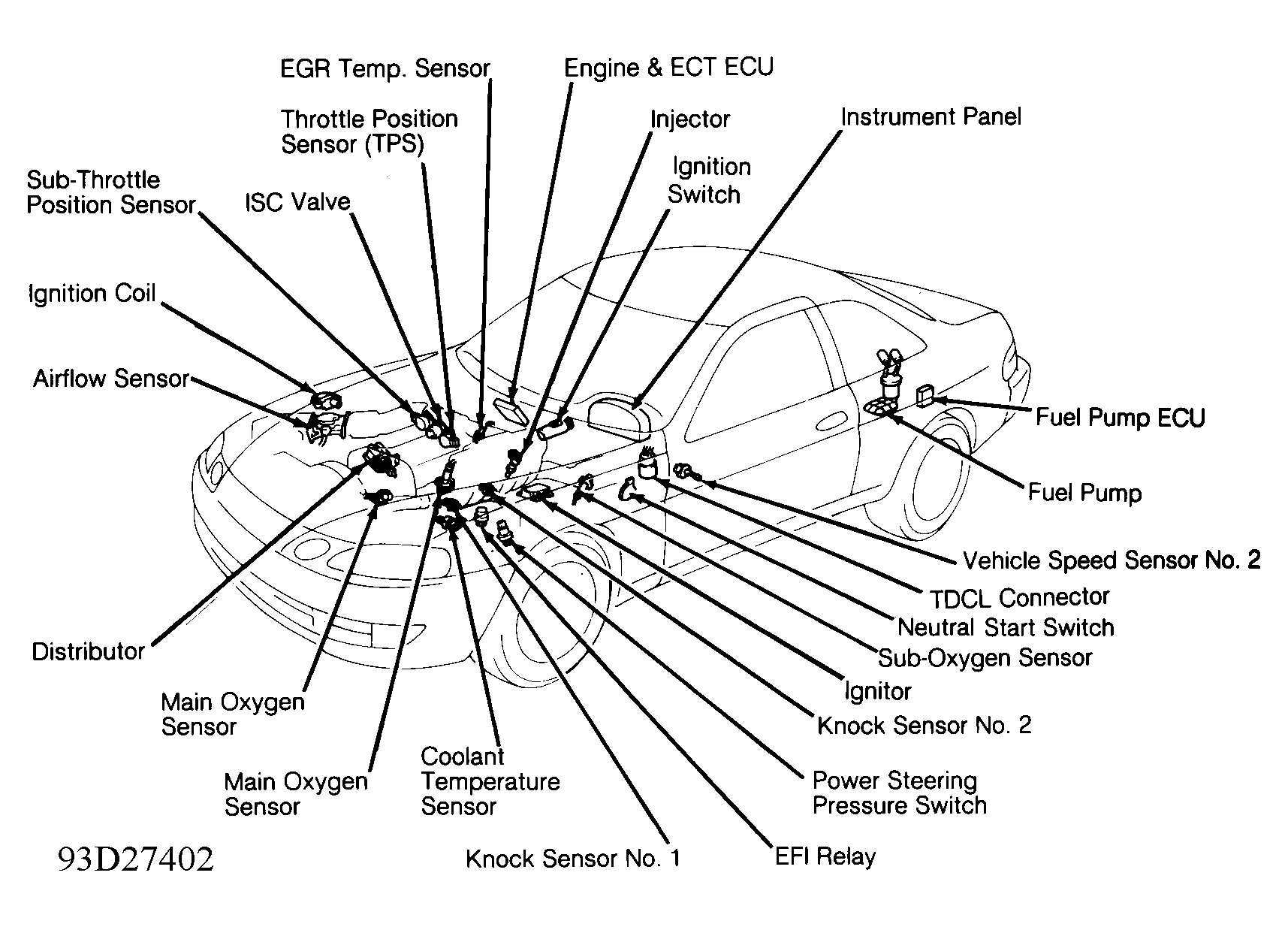

| Engine | |||
| View of Dash | Under left front floorboard. See Figure. | ||
| Harness Layout | Under left front floorboard. See Figure. | ||
| Fuel Pump | |||
| Location of Control Units | Behind left rear quarter panel. See Figure. | ||
| Harness Layout | Behind left rear quarter panel. See Figure. | ||

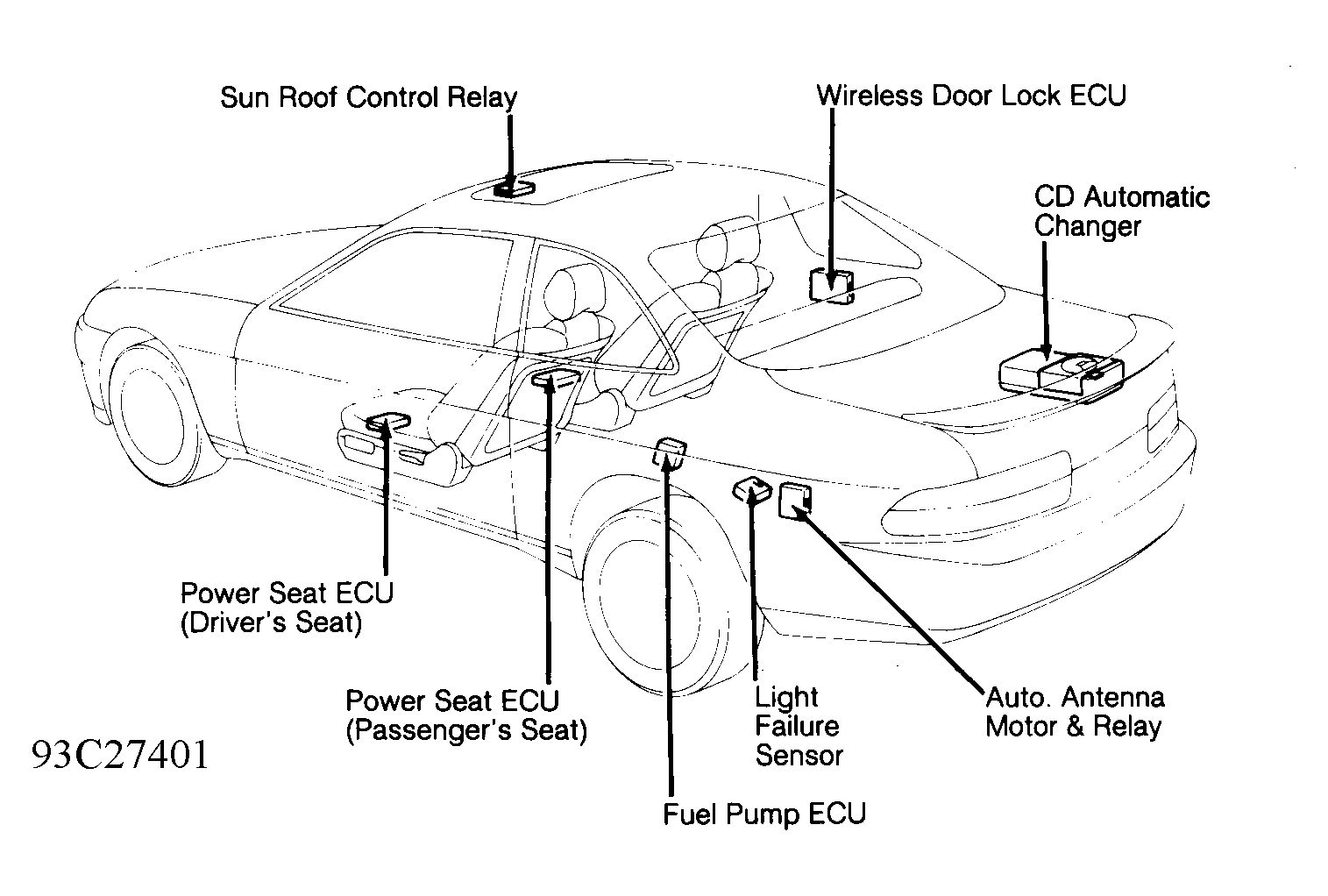

| Power Seat | |||
| Driver Seat | Under driver's seat. See Figure. | ||
| Passenger Seat | Under front passenger's seat. See Figure. | ||
| Progressive Power Steering (PPS) ECU | Under right side of dash. See Figure. | ||
| Remote Control Mirror ECU | Behind left center of dash. See Figure. | ||

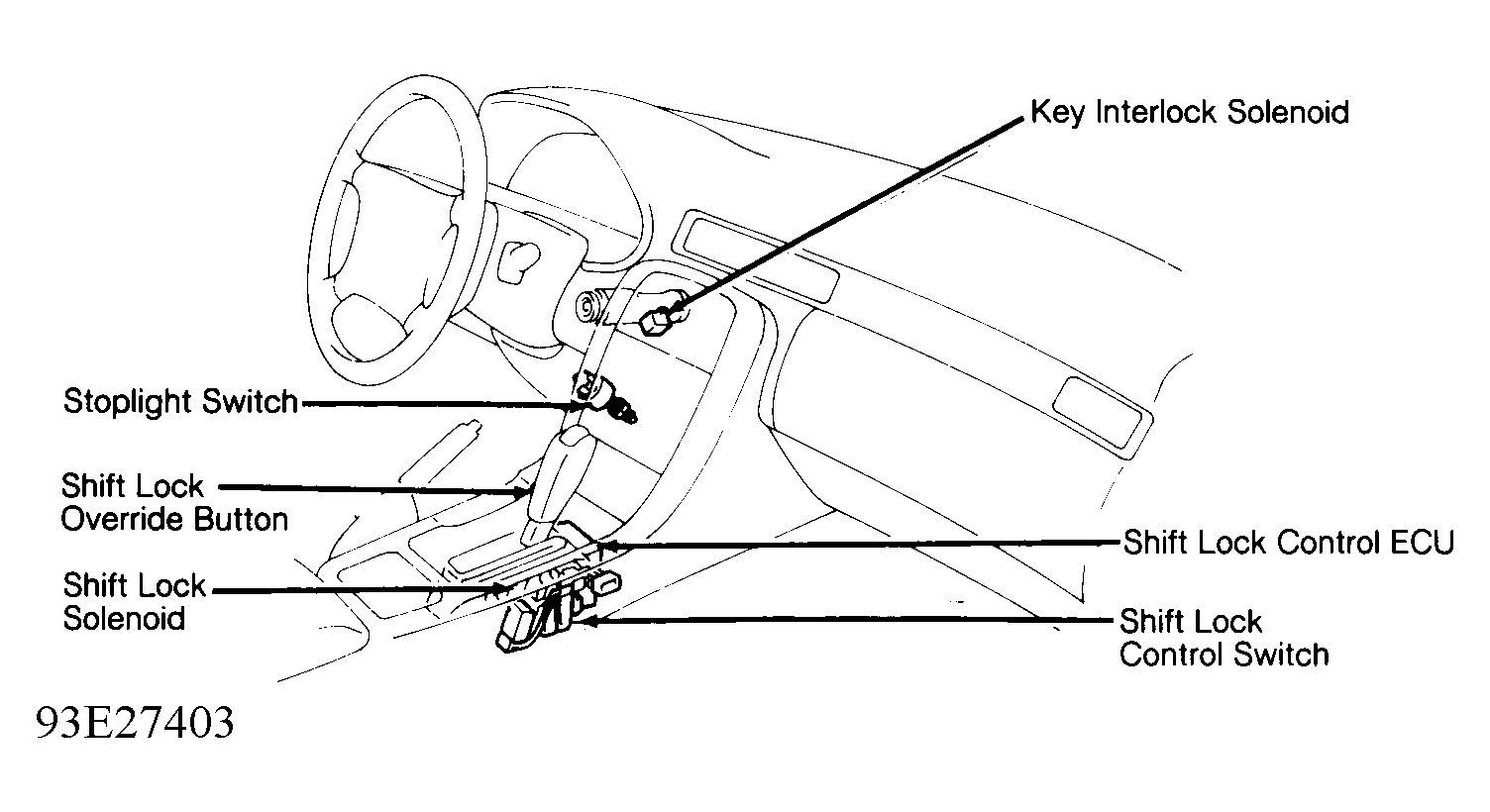

| Shift Lock Control | |||
| View of Dash | Under center console, left of shifter. See Figure. | ||
| View of Dash From Passenger Side | Under center console, left of shifter. See Figure. | ||
| Tilt & Power Telescopic Steering Column | Behind left side of dash. See Figure. | ||
| Traction Control System (TRAC) ECU | Behind right side of dash. See Figure. | ||
| Wireless Door Lock | Behind right rear quarter panel, below window. See Figure. | ||
