Code 24 - Intake Air Temperature Sensor Circuit

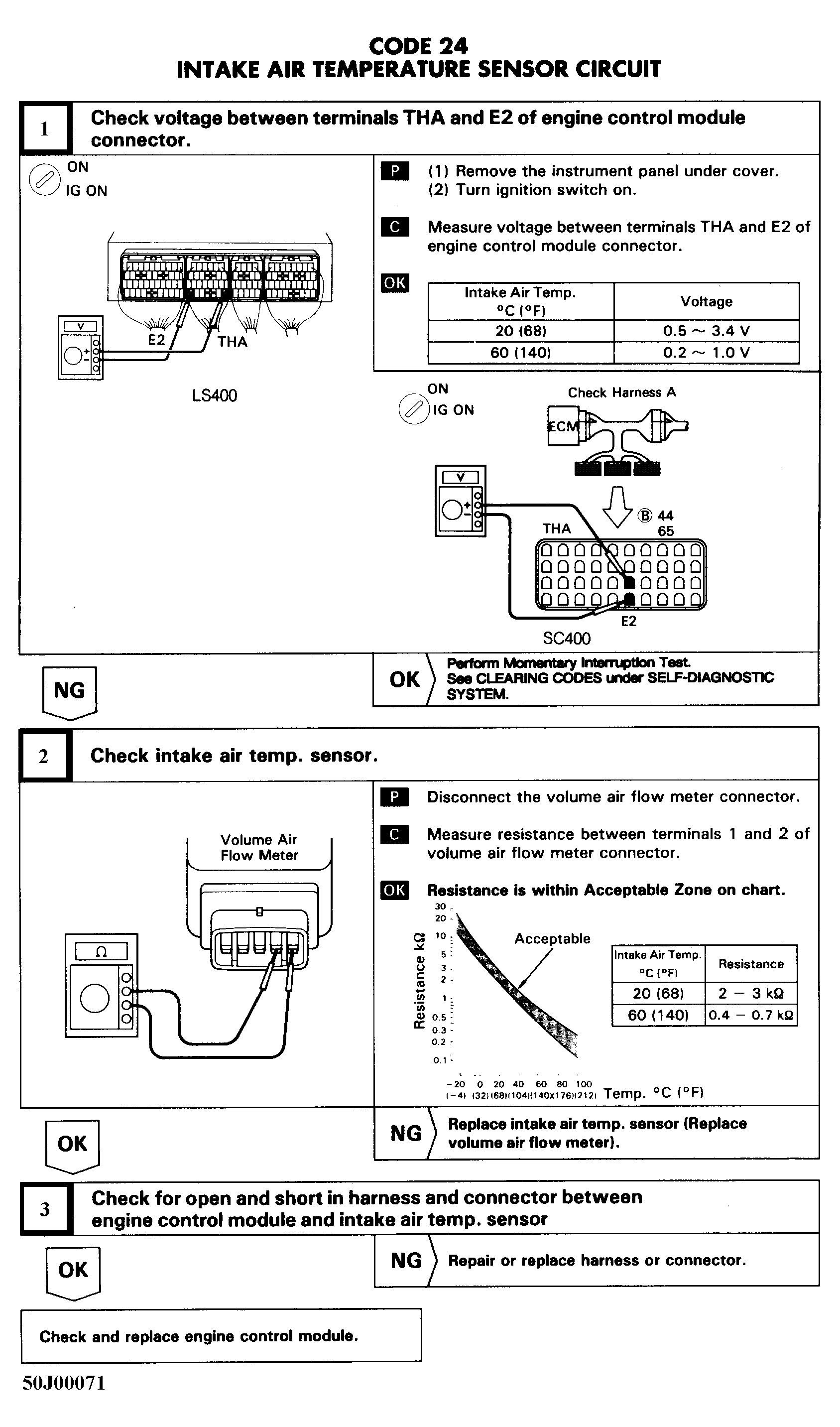

Fig 1: Code 24 - Diagnostic Flowchart
G50J00071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
