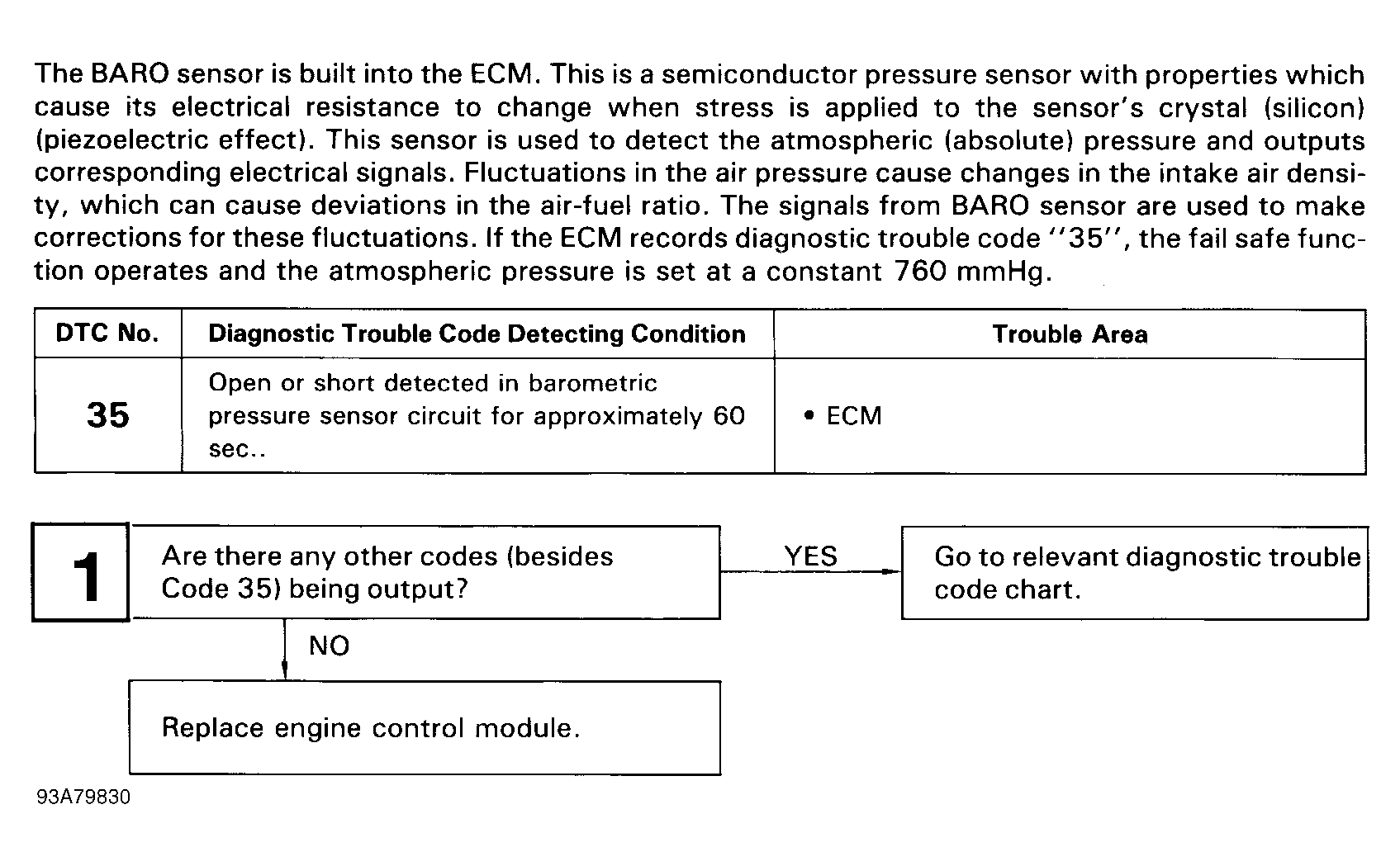

Code 35 - Barometric Pressure Sensor Circuit
The BARO sensor is built into the ECM. This is a semiconductor pressure sensor with properties which cause its electrical resistance to change when stress is applied to the sensor's crystal (silicon) (piezoelectric effect). This sensor is used to detect the atmospheric (absolute) pressure and outputs corresponding electrical signals. Fluctuations in the air pressure cause changes in the intake air density, which can cause deviations in the air-fuel ration. The signals from the BARO sensor are used to make corrections for these fluctuations. If the ECM records diagnostic trouble code "35", the fail safe function operates and the atmospheric pressure is set at a constant 760 mmHg.
