Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION

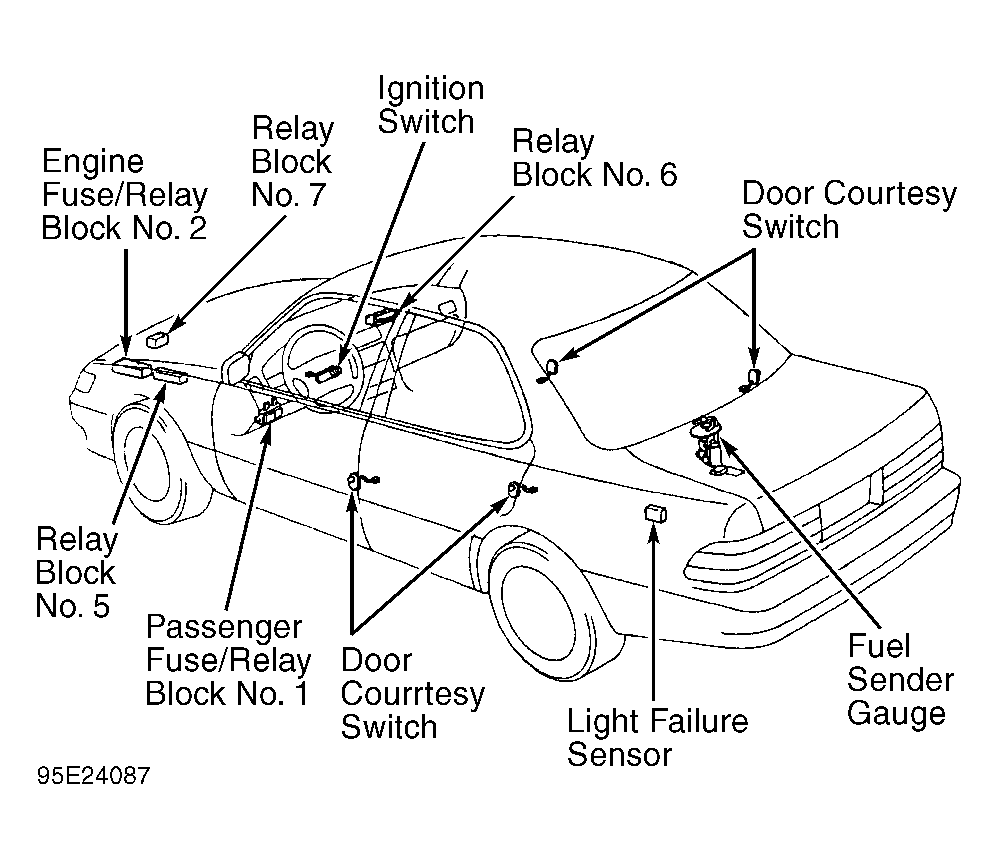

| Component | Location | |
|---|---|---|
| Fuse/Relay Blocks | ||
| Engine Compartment Fuse/Relay Block No. 1 | On left front of engine compartment, beside battery. See Figure. | |
| Passenger Compartment Fuse/Relay Block No. 2 | Behind left side of dash. See Figure. | |
| Fusible Link (Main) | On battery cable positive terminal. | |
| Relay Blocks | ||
| Relay Block No. 1 | Below left of dash. See Figure. | |
| Relay Block No. 2 | On left front of engine compartment, front of battery. See Figure. | |
| Relay Block No. 3 | Above left kick panel. | |
| Relay Block No. 4 | Above right kick panel. | |
| Relay Block No. 5 | On left front of engine compartment, next to junction block No. 1. See Figure. | |
| Relay Block No. 6 | Behind glove compartment, right side of dash. See Figure. | |
| Relay Block No. 7 | On left front of engine compartment, behind left front headlight. See Figure. | |
