Miscellaneous Components
MISCELLANEOUS COMPONENT LOCATIONS
| Component | Location | |
|---|---|---|

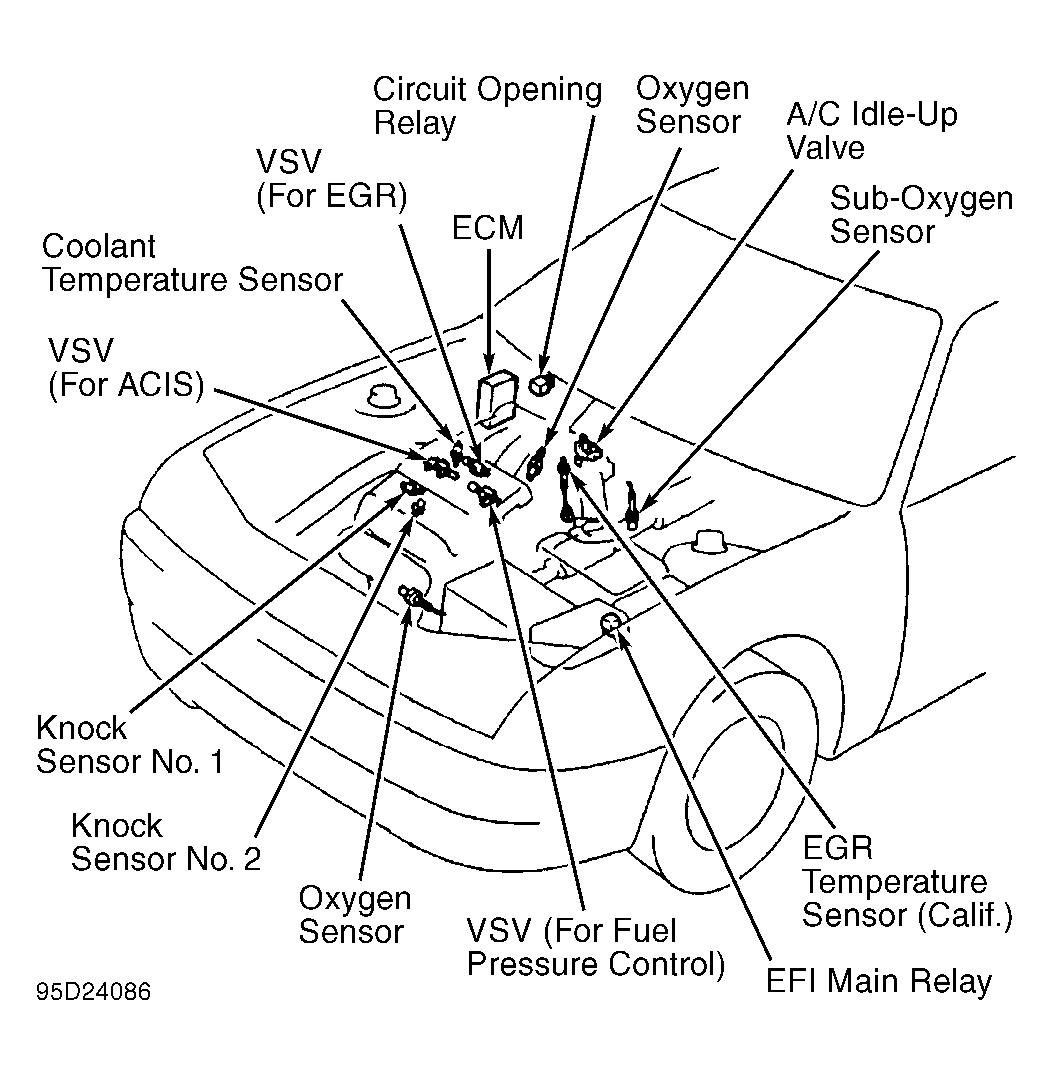

| A/C Idle-Up Valve | On top of air intake manifold. See Figure. | |

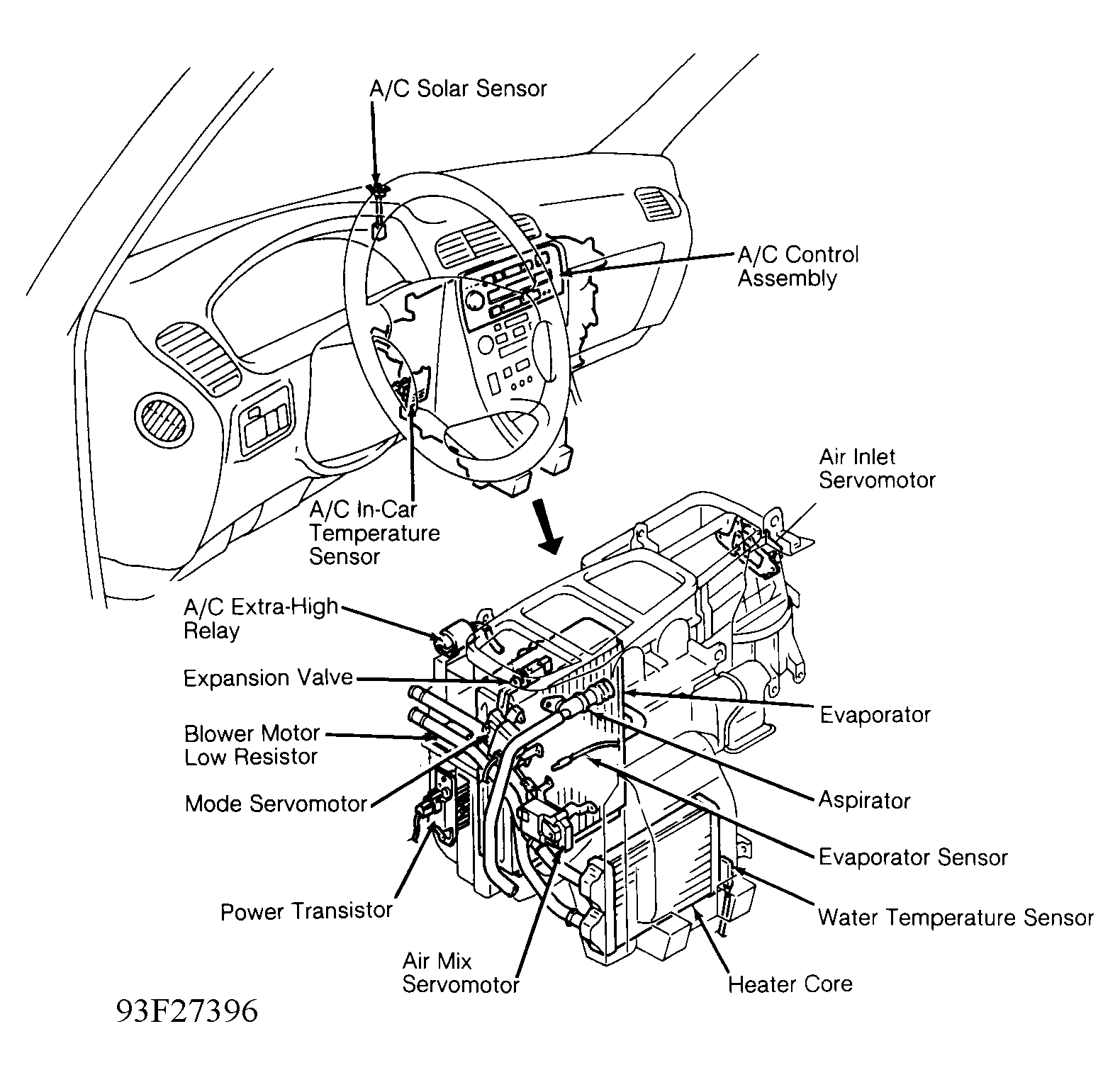

| Blower Motor Low Resistor | Behind right side of dash, on evaporator case. See Figure. | |
| Data Link Connectors (DLC) | ||
| DLC No. 1 | On bracket, behind right strut tower. | |
| DLC No. 2 | Under left side of dash. | |
| Power Transistor | Mounted on evaporator case. See Figure. | |
| Radio Power Amplifier | Under front passenger's seat. | |
| Vacuum Switching Valves (VSV) | ||
| ACIS VSV | On top of air intake manifold. See Figure. | |
| Fuel Pressure Control VSV | On top of air intake manifold. See Figure. | |
| EGR VSV | On top of air intake manifold. See Figure. | |
