ECM Power Source Circuit (Ignition Keyed)

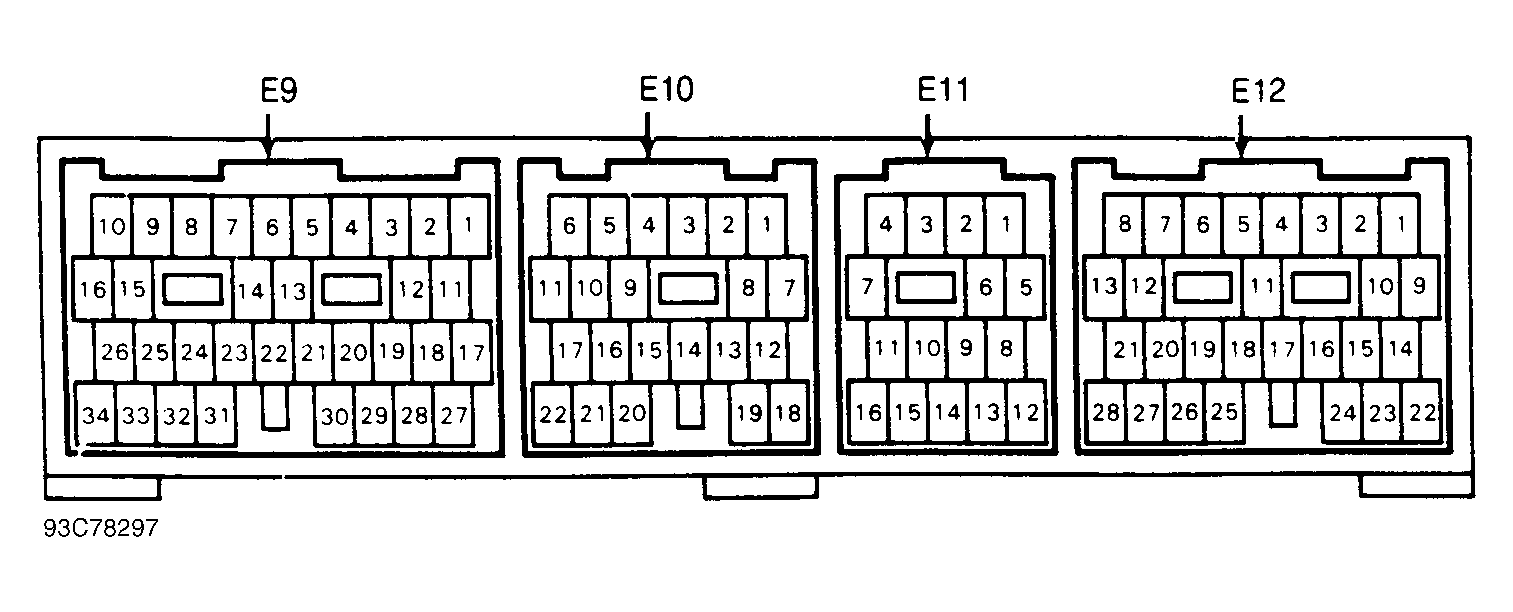

- Ensure ECM ground circuits are okay. See ECM GROUND CIRCUITS . For access to ECM, remove glove box. Leave electrical connectors attached to ECM. Turn ignition on. Measure voltage between chassis ground and terminal No. 22 (Black/Red wire) of ECM connector E12. To identify ECM connectors and terminals, see Figure.
- If battery voltage is present, ECM keyed (ignition) power circuit is okay. If battery voltage is not present, measure voltage between chassis ground and terminal No. 9 (Black/Orange wire) of ECM connector E12. If battery voltage is present, go to step 5).
- If battery voltage is not present, check IGN fuse (10-amp). See COMPONENT LOCATIONS under INTRODUCTION. If fuse is blown, repair circuit. If fuse is okay, check ignition switch. See STEERING COLUMN SWITCHES article in ACCESSORIES & EQUIPMENT section.
- If ignition switch is okay, repair open circuit between battery and ignition switch, or between ignition switch and ECM.
- Measure voltage between chassis ground and terminal No. 13 (Black/Orange wire) of ECM connector E12. If battery voltage is not present, replace ECM. If battery voltage is present, check EFI fuse (20-amp). See COMPONENT LOCATIONS under INTRODUCTION.
- If EFI fuse is blown, repair circuit. If EFI fuse is okay, check EFI main relay. See RELAYS under MODULES, MOTORS, RELAYS & SOLENOIDS. If EFI main relay is okay, check circuit between chassis ground and terminal No. 13 (Black/Orange wire) of ECM connector E12. If circuit is okay, repair circuit between battery and EFI fuse.
