Steering Column: Overhaul: Notes

NOTE: For exploded view of manual steering column, see Fig 1.

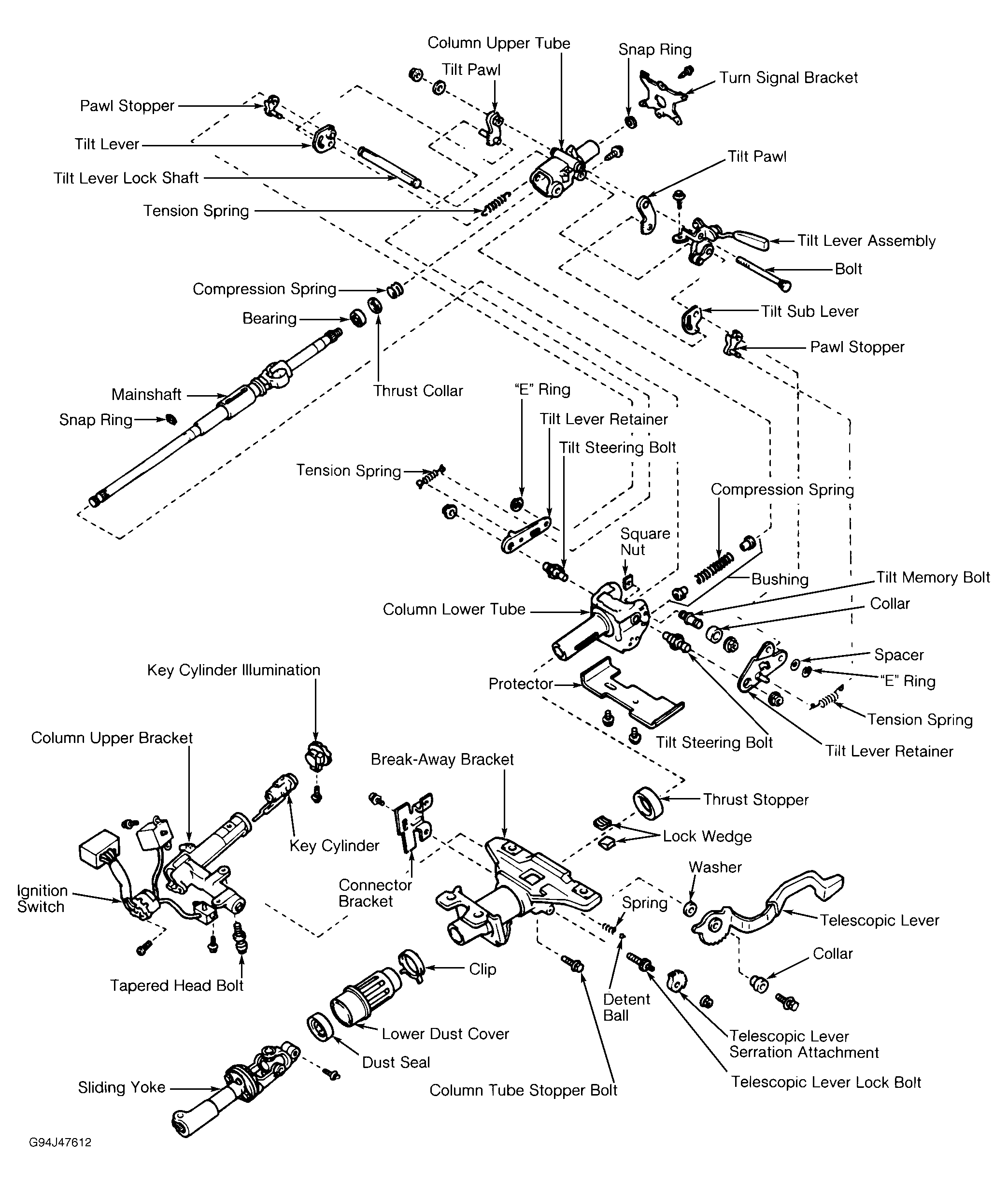

Fig 1: Exploded View Of Manual Tilt & Telescoping Steering Column (Typical)
G94J47612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
