Code 21 - Main O2 Sensor CKT (Front Sensor)

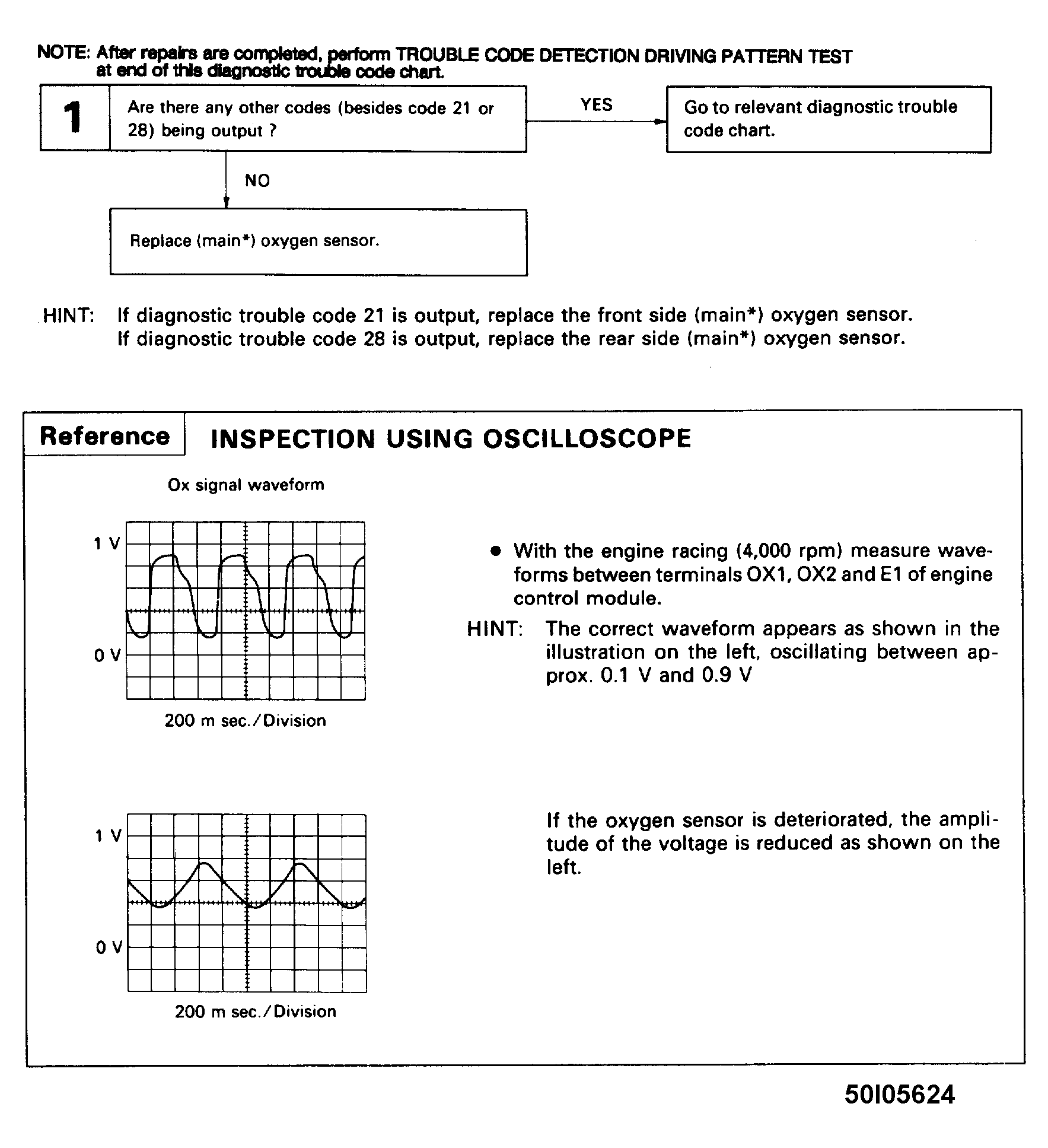

Fig 1: Code 21 Flow Chart (SC300) Main O2 Sensor Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

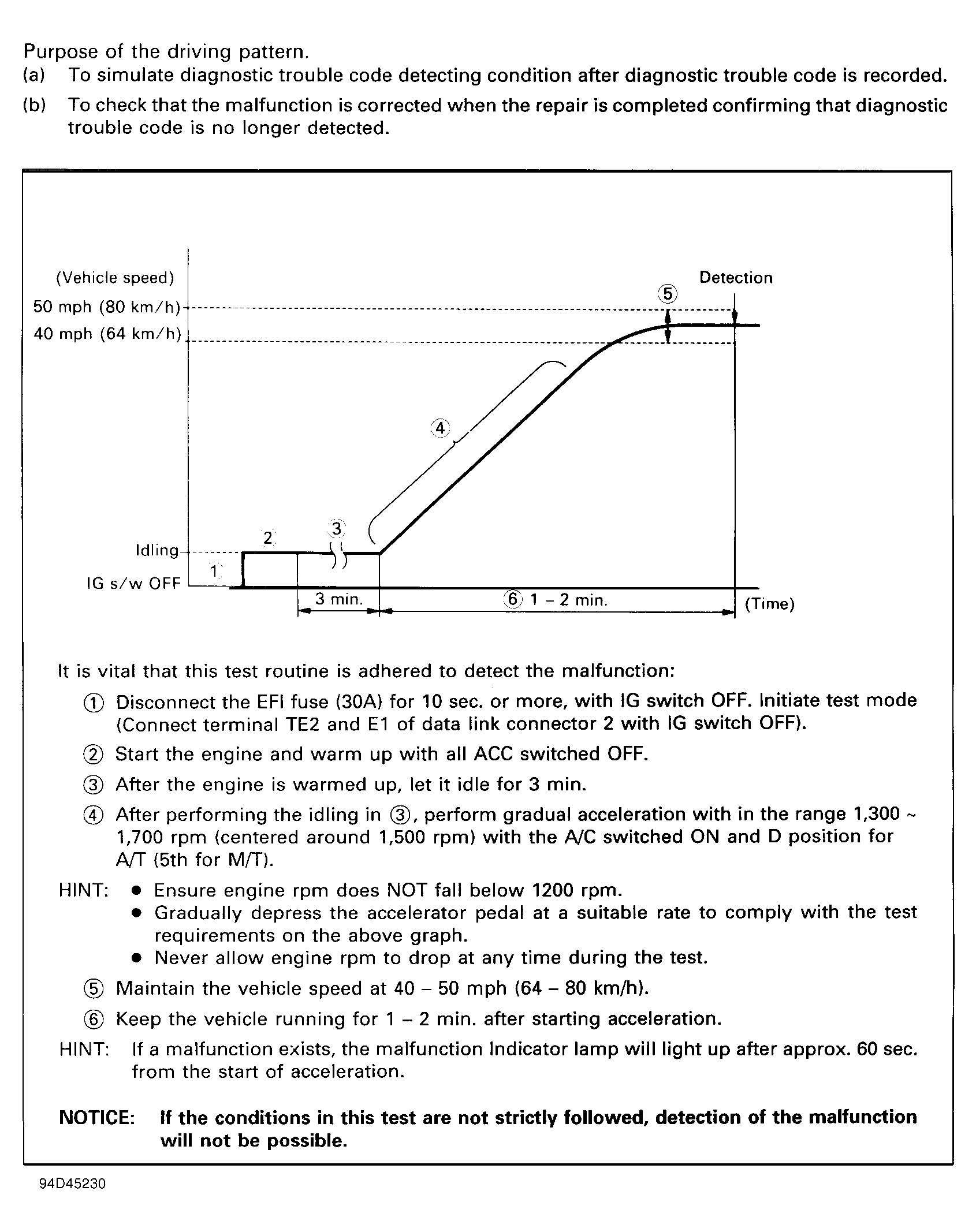

Fig 2: Code 21 Trouble Code Detection Test (SC300) Main O2 Sensor Circuit
