Code 28 - Main O2 Sensor CKT (Rear Sensor)

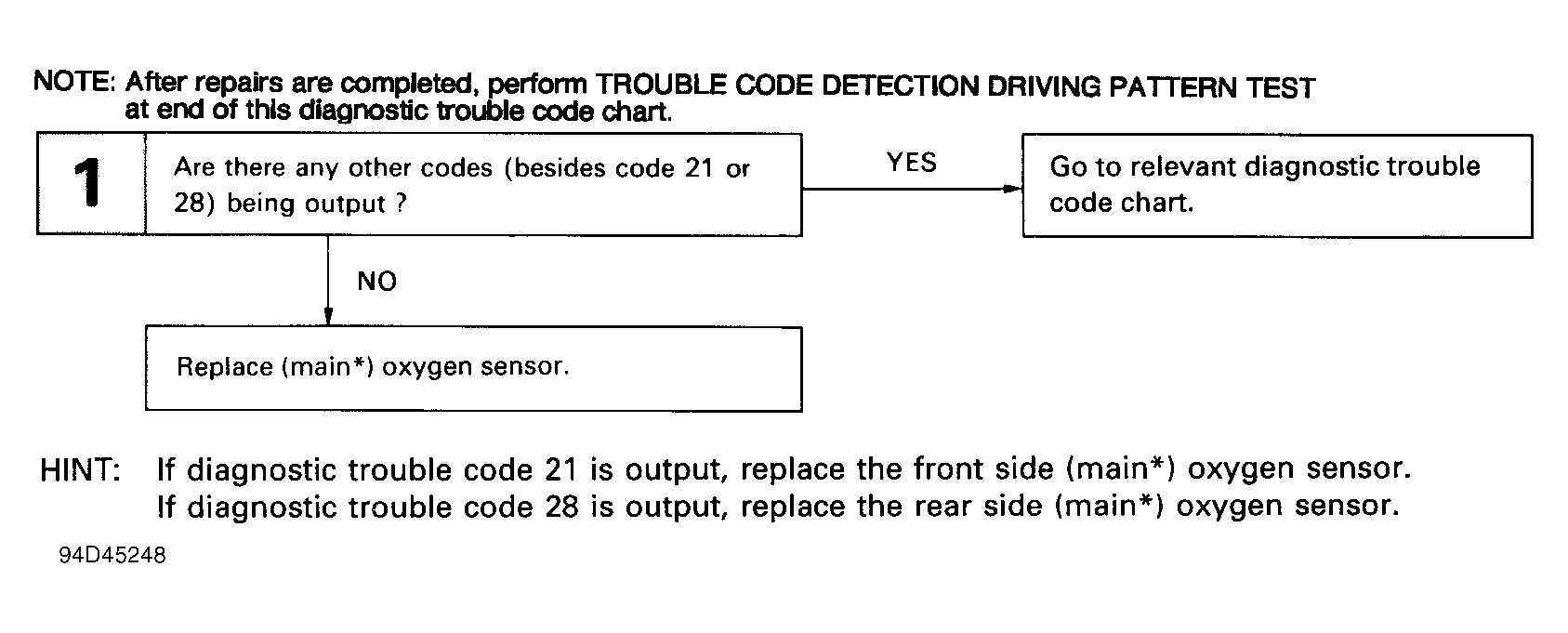

Fig 1: Code 28 Flow Chart (SC300) Main O2 Sensor Circuit
G94D45248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

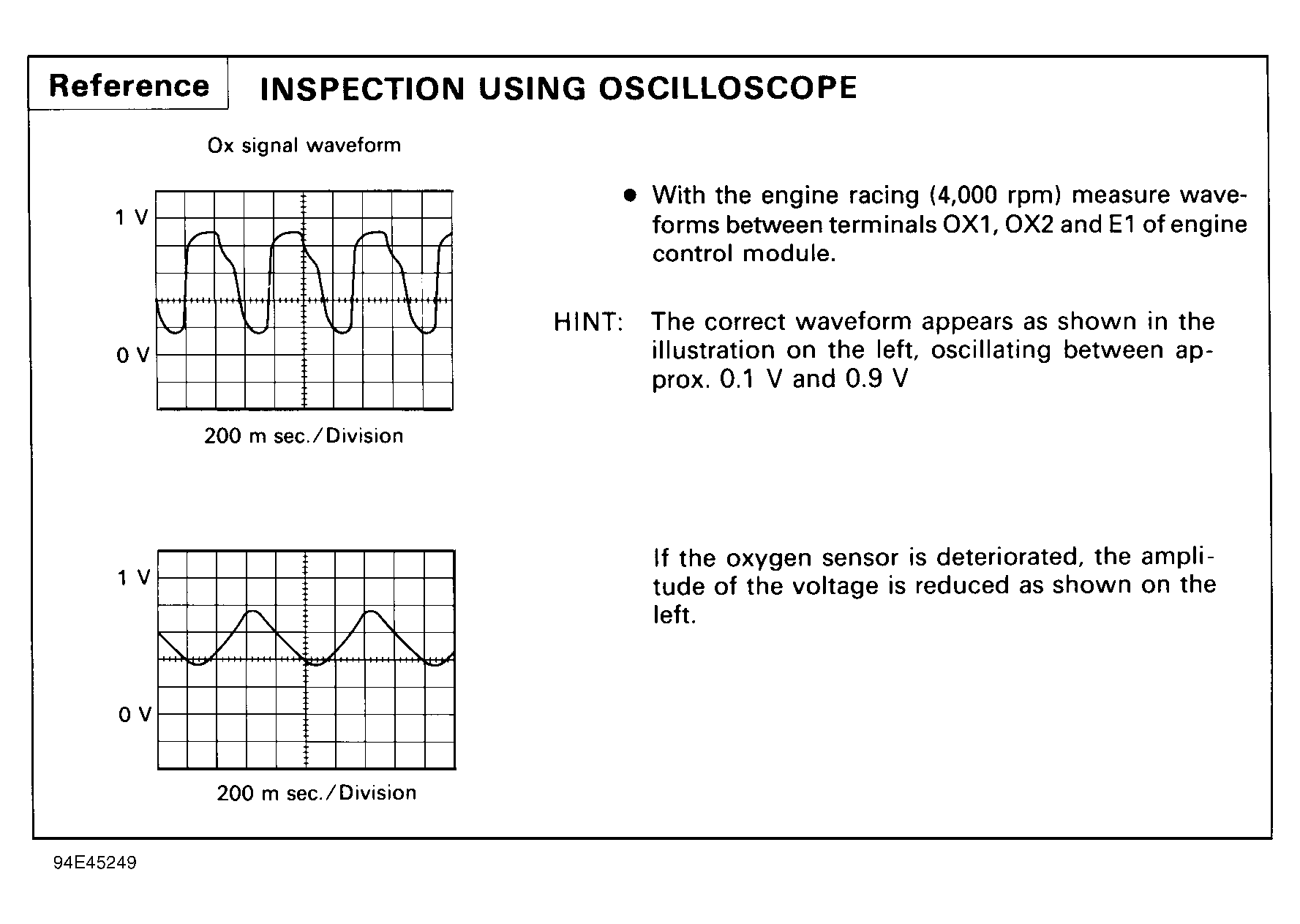

Fig 2: Code 28 - Inspection Using Oscilloscope (SC300) Main O2 Sensor Circuit
G94E45249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Code 28 Trouble Code Detection Test (SC300) Main O2 Sensor Circuit
G94D45230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
