Power Main Relay Test

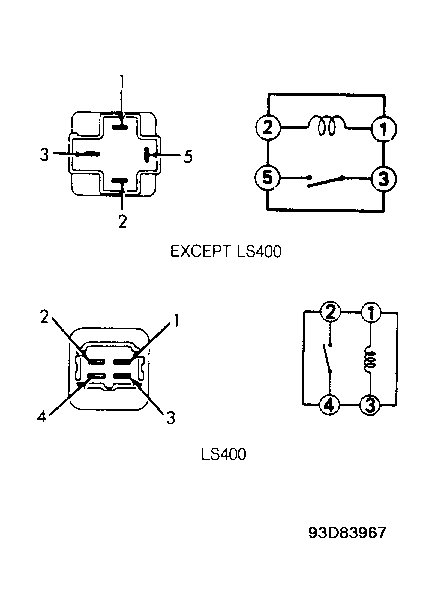

Remove relay. Replace relay if it does not operate as follows. See Fig 1.
- There should be no continuity between terminals No. 3 and 5.
- Apply battery voltage across terminals No. 1 and 2. There should be continuity between terminals No. 3 and 5.
