Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Electronic Control Unit | Under left front floorboard. See Figure. | |
| A/C Control Unit | Behind A/C control panel. | |
| Anti-Theft/Door Lock ECU | Behind left side of dash. See Figure. | |
| Cruise Control ECU | Behind left side of dash. | |
| Elec. Controlled Trans. (ECT) ECU | Under left front floorboard. | |

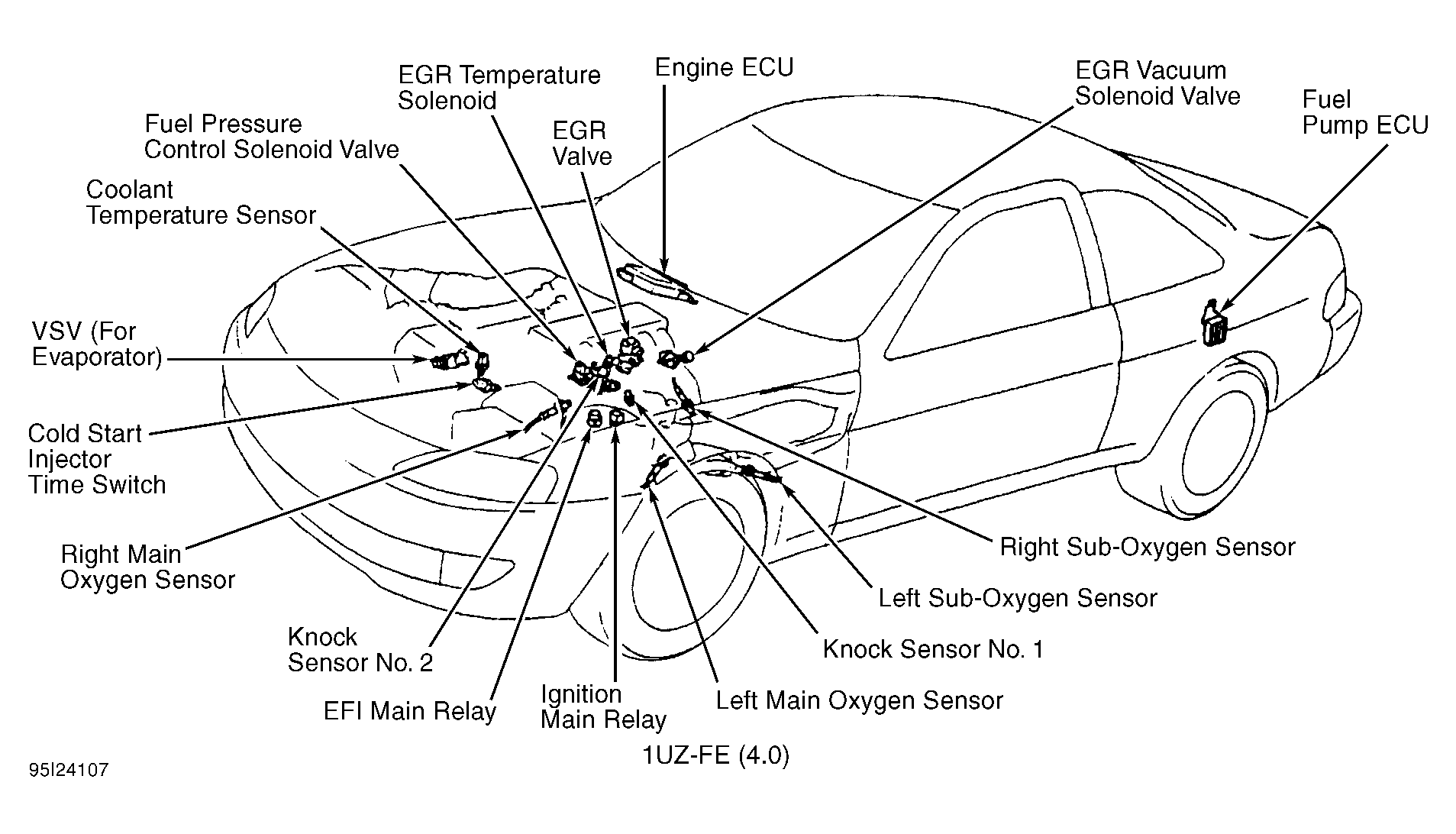

| Engine Control Unit | Under left front floorboard. See Figure. | |
| Engine Control Unit | Under left front floorboard. See Figure. | |
| Fuel Pump Control Unit | Behind left rear quarter panel. See Figure. | |
| Power Seat Control Units | ||
| Driver Seat Control Unit | Under driver's seat. | |
| Passenger Seat Control Unit | Under front passenger's seat. | |
| Progressive Power Steering (PPS) Control Unit | Under right side of dash. See Figure. | |
| Remote Control Mirror ECU | Behind left center of dash. See Figure. | |

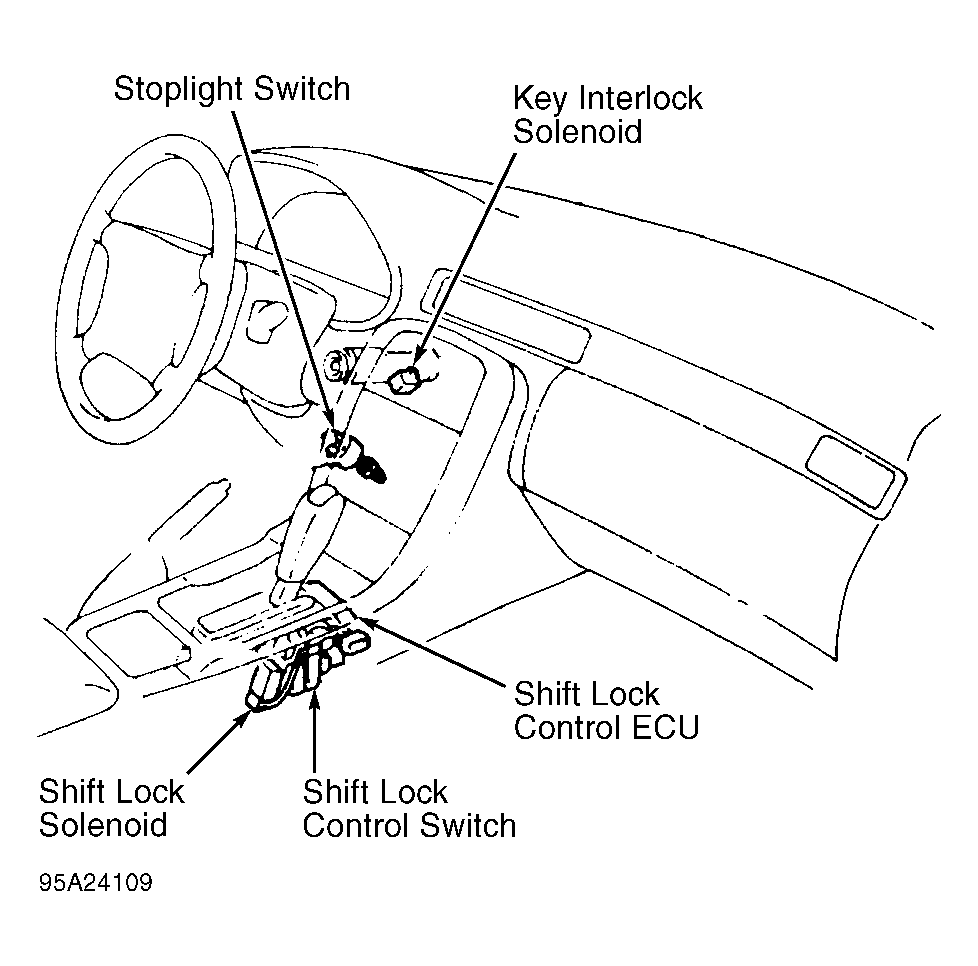

| Shift Lock Control Unit | Under center console, left of shifter. See Figure & Figure . | |
| Tilt & Power Telescopic Steering Column Control Unit | Behind left side of dash. See Figure. | |
| Traction Control System (TRAC) Control Unit | Behind right side of dash. See Figure. | |
| Wireless Door Lock Control Unit | Behind right rear quarter panel, below window. | |
