Power Window Master Switch: Circuit

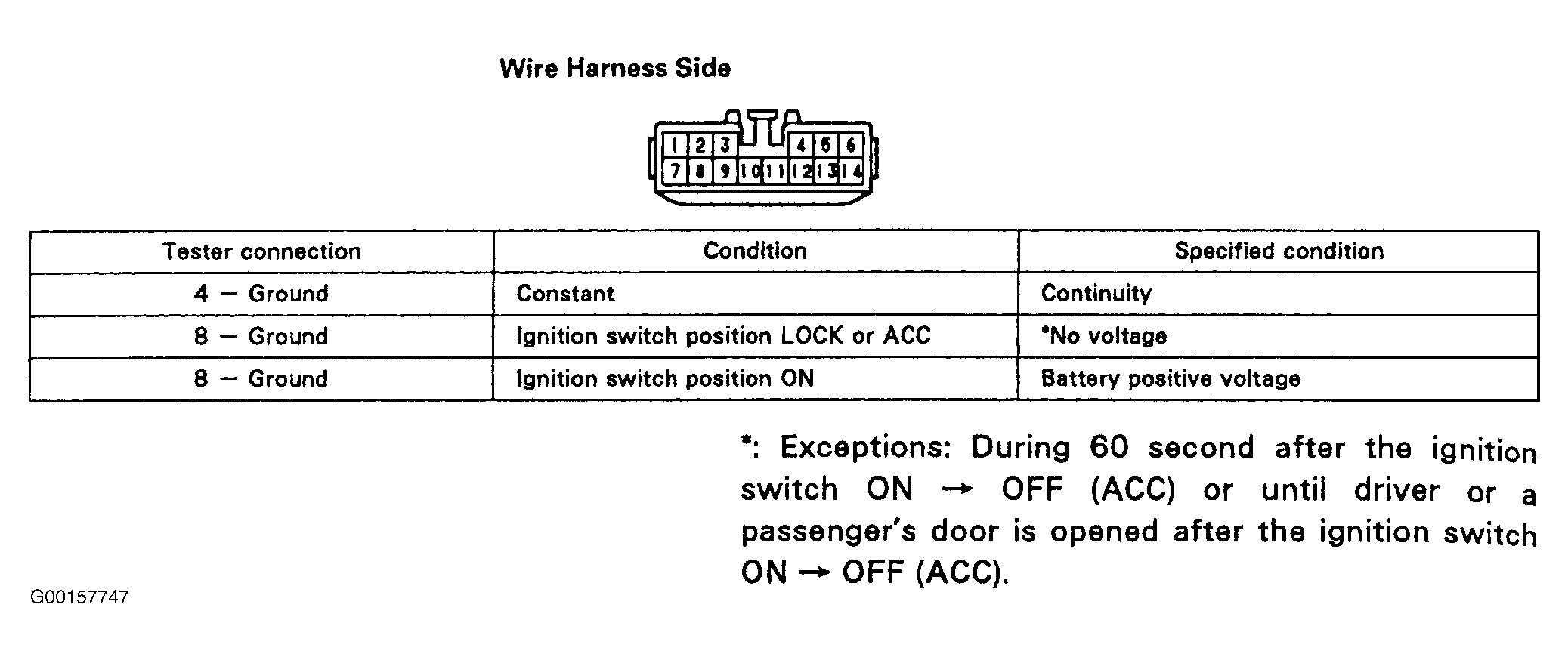

Disconnect the connector from the power window master switch and inspect the connector on the wire harness side. See Fig 1. If the circuit is not as specified, inspect the circuit connected to other parts. See WIRING DIAGRAMS .
