Power Window Master Switch: Continuity

Disconnect power window master switch. Check continuity between appropriate power window master switch terminals with switch in appropriate position. See Fig 1-Fig 9 . If continuity is not as specified, replace power window master switch.

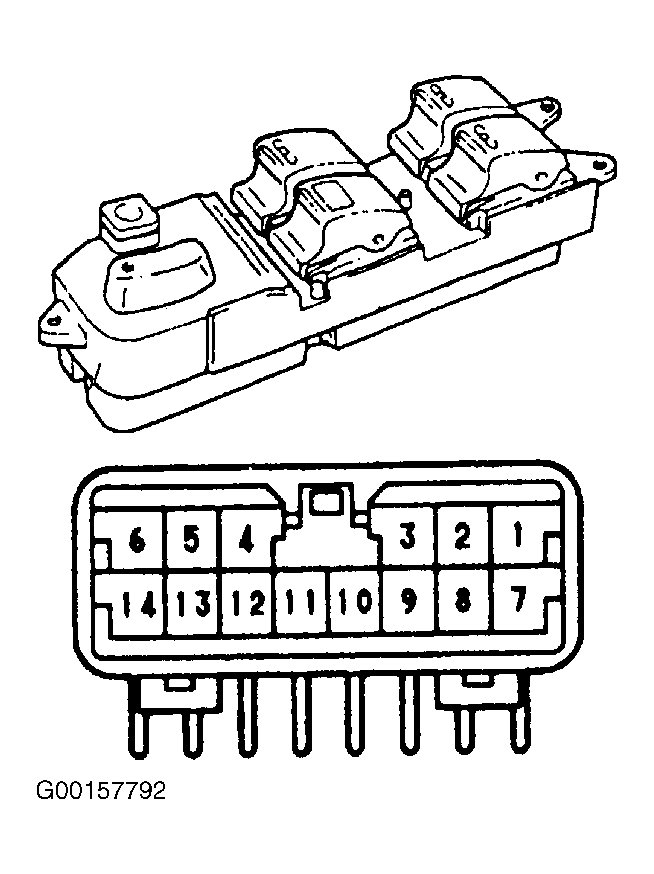

Fig 1: Identifying Power Window Master Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

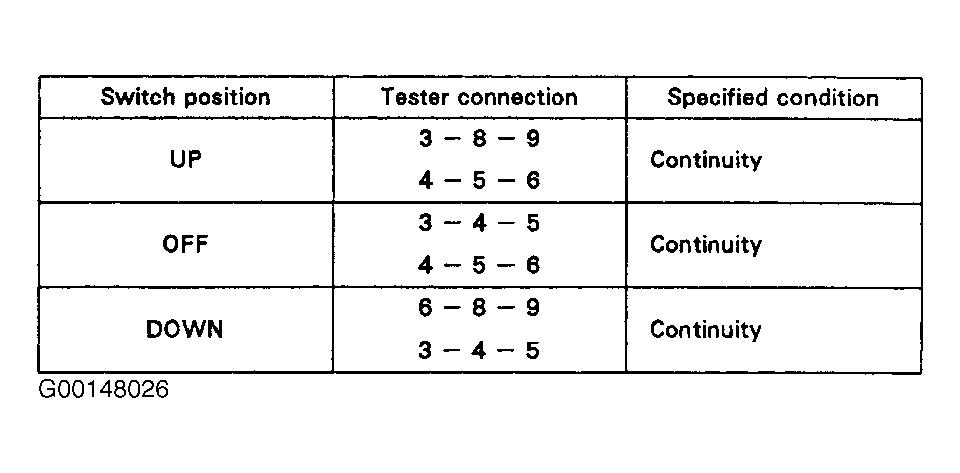

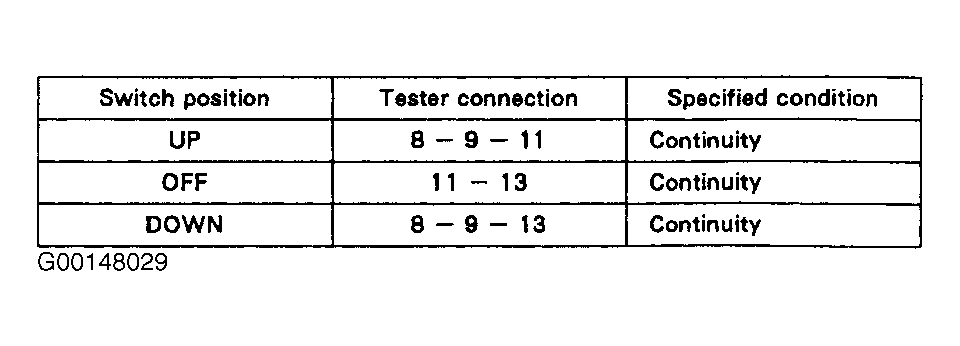

Fig 2: Testing Continuity Front Driver's Switch (Window Unlock)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

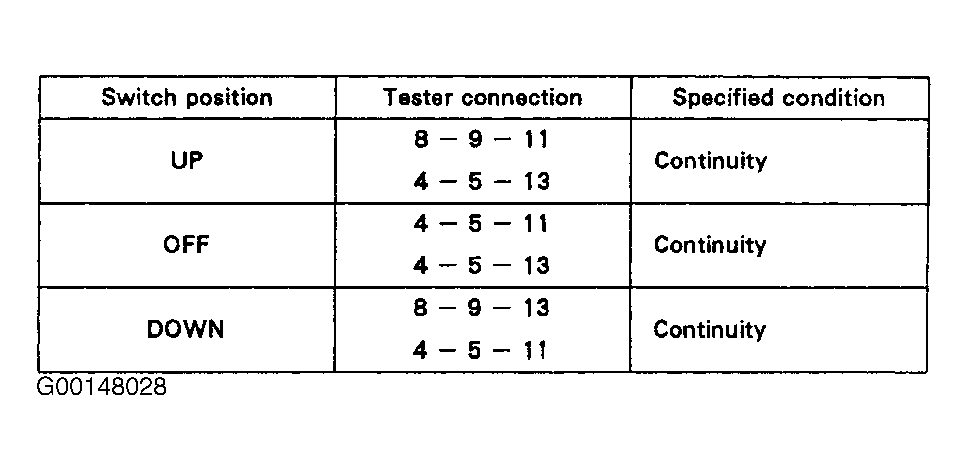

Fig 3: Testing Continuity Front Driver's Switch (Window Lock)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

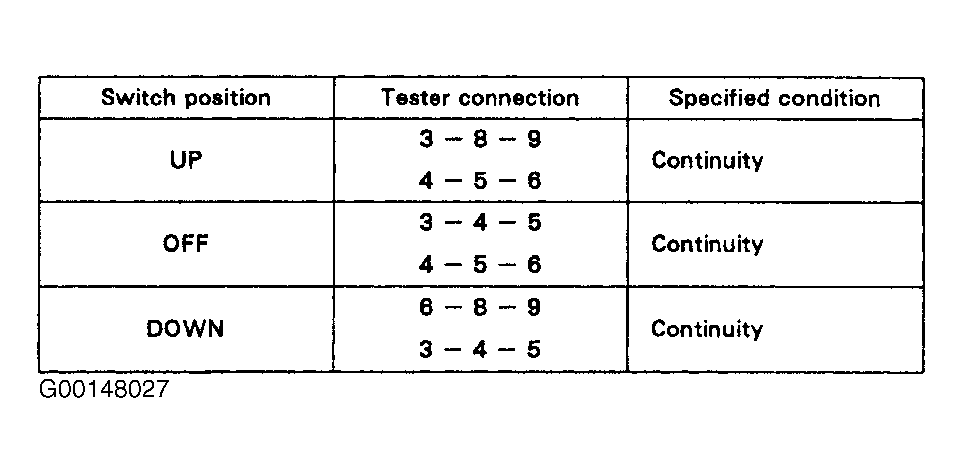

Fig 4: Testing Continuity Front Passenger's Switch (Window Unlock)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

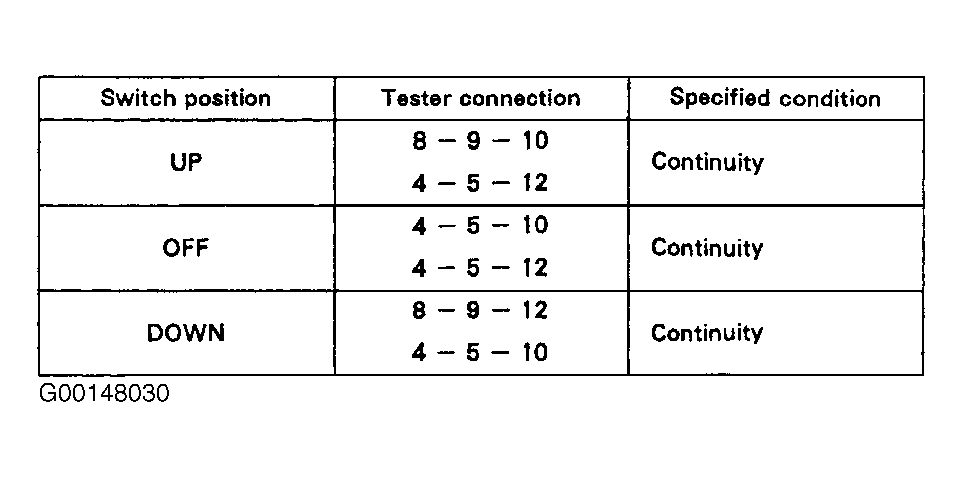

Fig 5: Testing Continuity Front Passenger's Switch (Window Lock)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

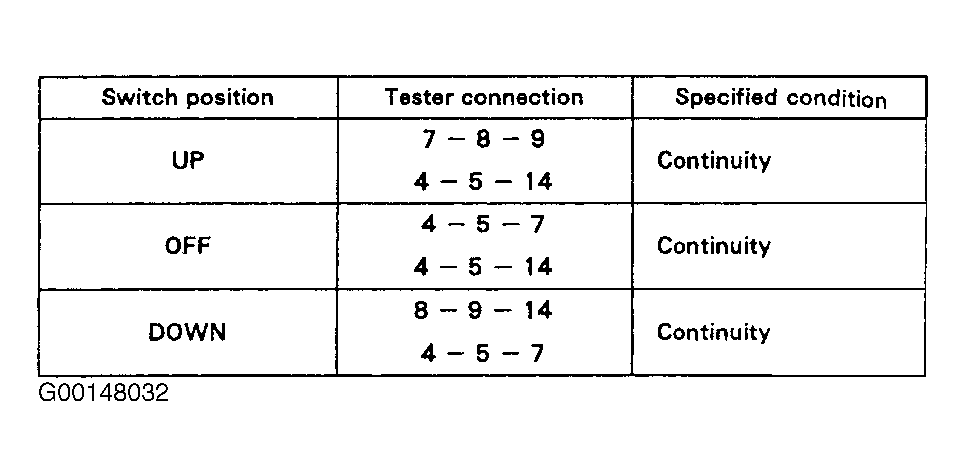

Fig 6: Testing Continuity Rear Left Switch (Window Unlock)

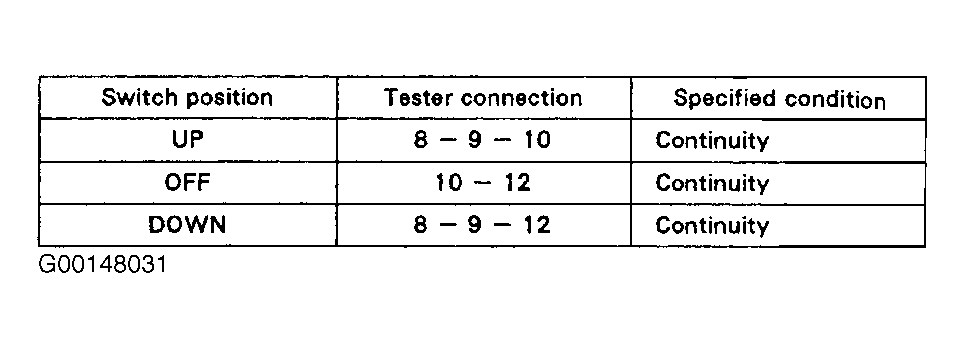

Fig 7: Testing Continuity Rear Left Switch (Window Lock)

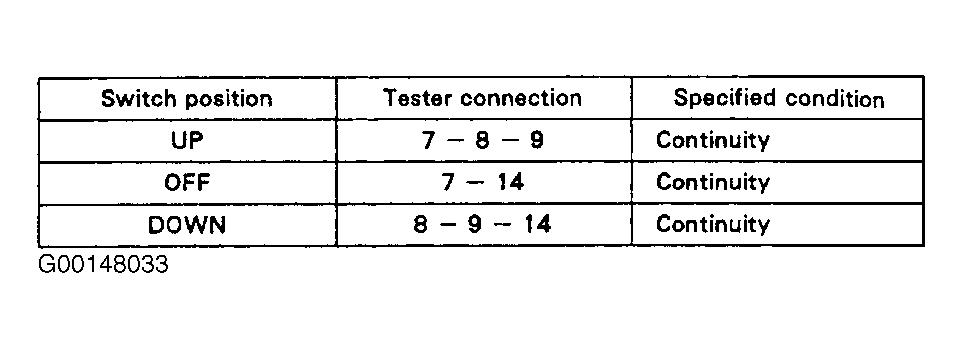

Fig 8: Testing Continuity Rear Right Switch (Window Unlock)

Fig 9: Testing Continuity Rear Right Switch (Window Lock)
