Power Window Switch: Circuit

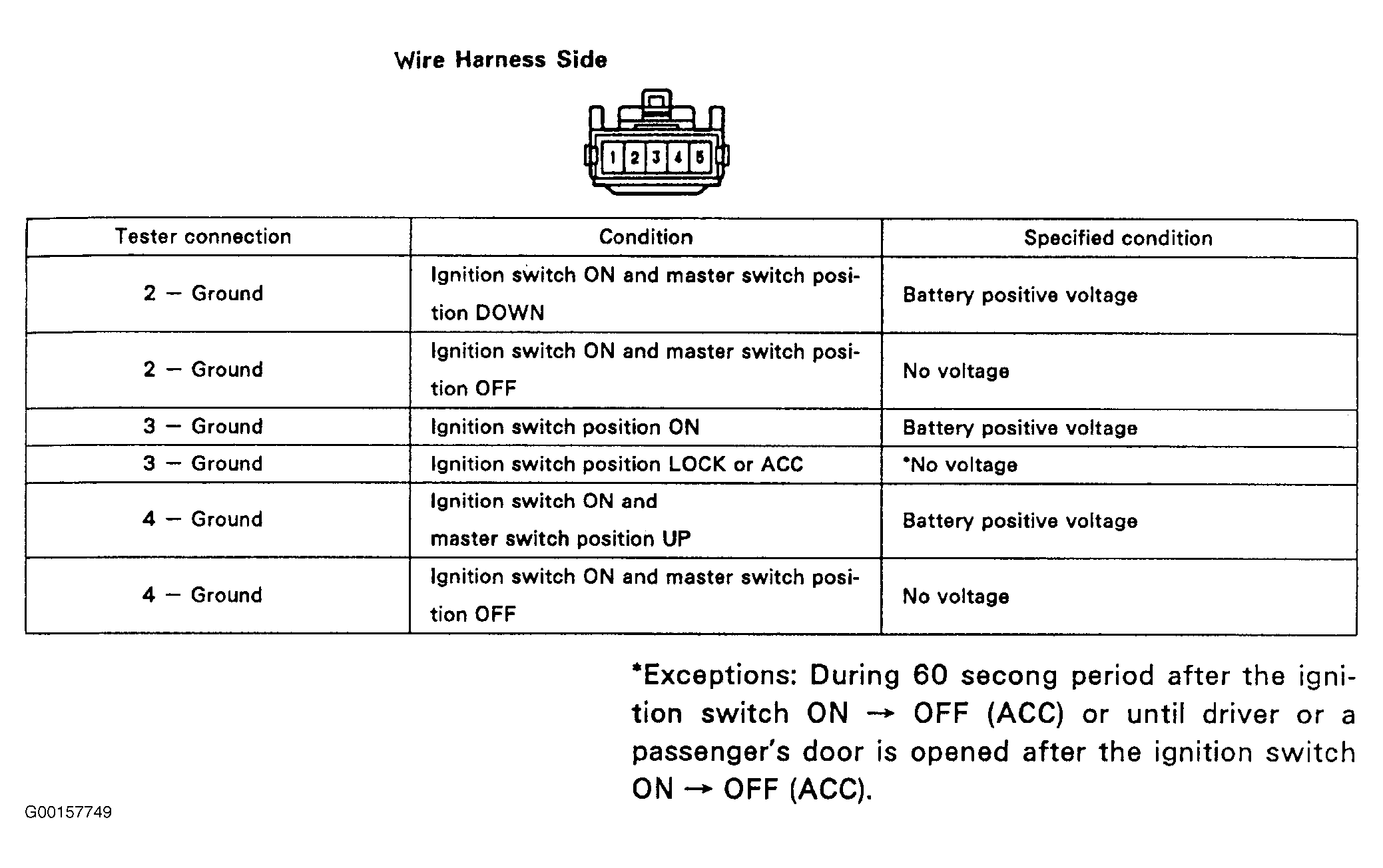

Disconnect the connector from the switch and inspect the connector on the wire harness side. See Fig 1. If the circuit is not as specified, inspect the circuits connected to other parts. See WIRING DIAGRAMS .
Disconnect the connector from the switch and inspect the connector on the wire harness side. See Fig 1. If the circuit is not as specified, inspect the circuits connected to other parts. See WIRING DIAGRAMS .
