Power Window Switch: Continuity

Disconnect appropriate power window switch. Check continuity between appropriate power window switch terminals with switch in appropriate position. See Fig 1. If continuity is not as specified, replace appropriate power window switch.

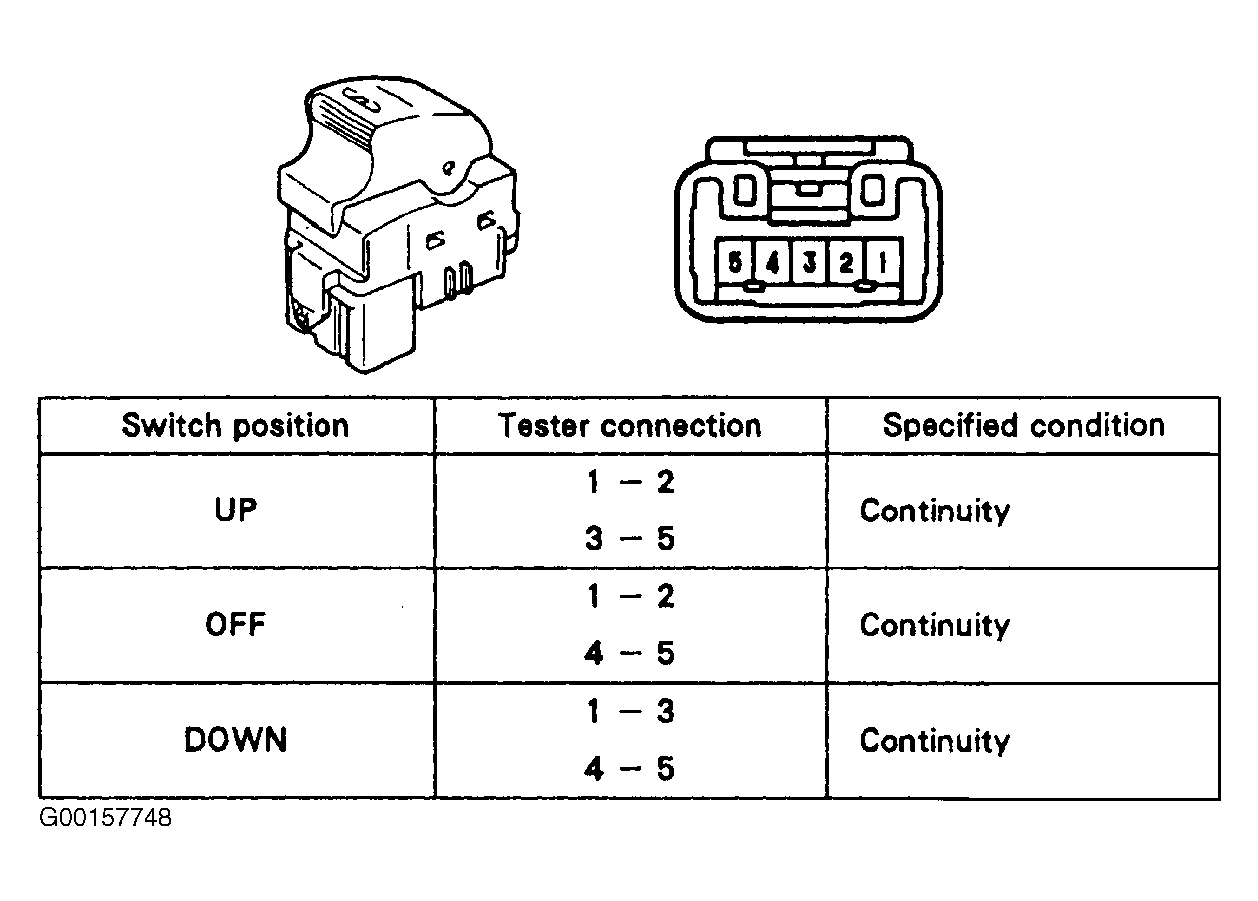

Fig 1: Testing Power Window Switch Continuity
G00157748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
