Connector Identification

CONNECTOR IDENTIFICATION

Description	Illustration
ABS Electronic Control Unit	See Fig 1
Check Harness	See Fig 2
Electronic Control Module (ECM)	See Fig 3
Sub-Throttle Actuator	See Fig 4
TRAC Actuator	See Fig 5
TRAC Electronic Control Unit	See Fig 6
TRAC Pump Motor	See Fig 7
Throttle Valve Motor Driver	See Fig 8

Fig 1: Identifying ABS ECU Connector SC300 & SC400

G96C20588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Check Harness

G96E09639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Electronic Control Module (ECM) SC300 & SC400

G93B78296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Sub-Throttle Actuator Harness Connector

G96F20599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying TRAC Actuator Harness Connectors SC300 & SC400

G96D20589

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

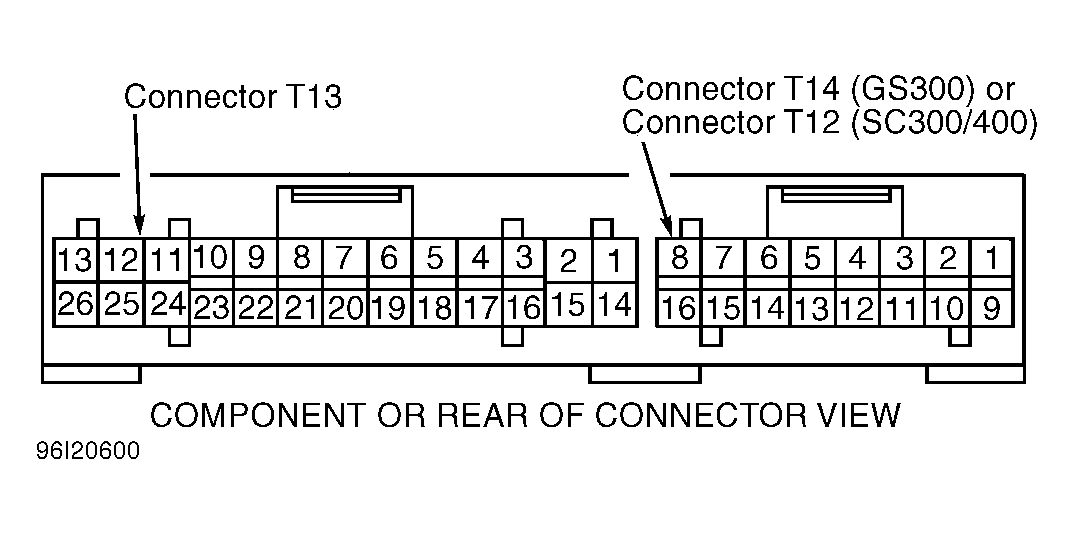

Fig 6: Identifying TRAC ECU Connector

G96I20600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying TRAC Pump Motor

G96A19653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Throttle Valve Motor Driver

G96A20602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
