Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

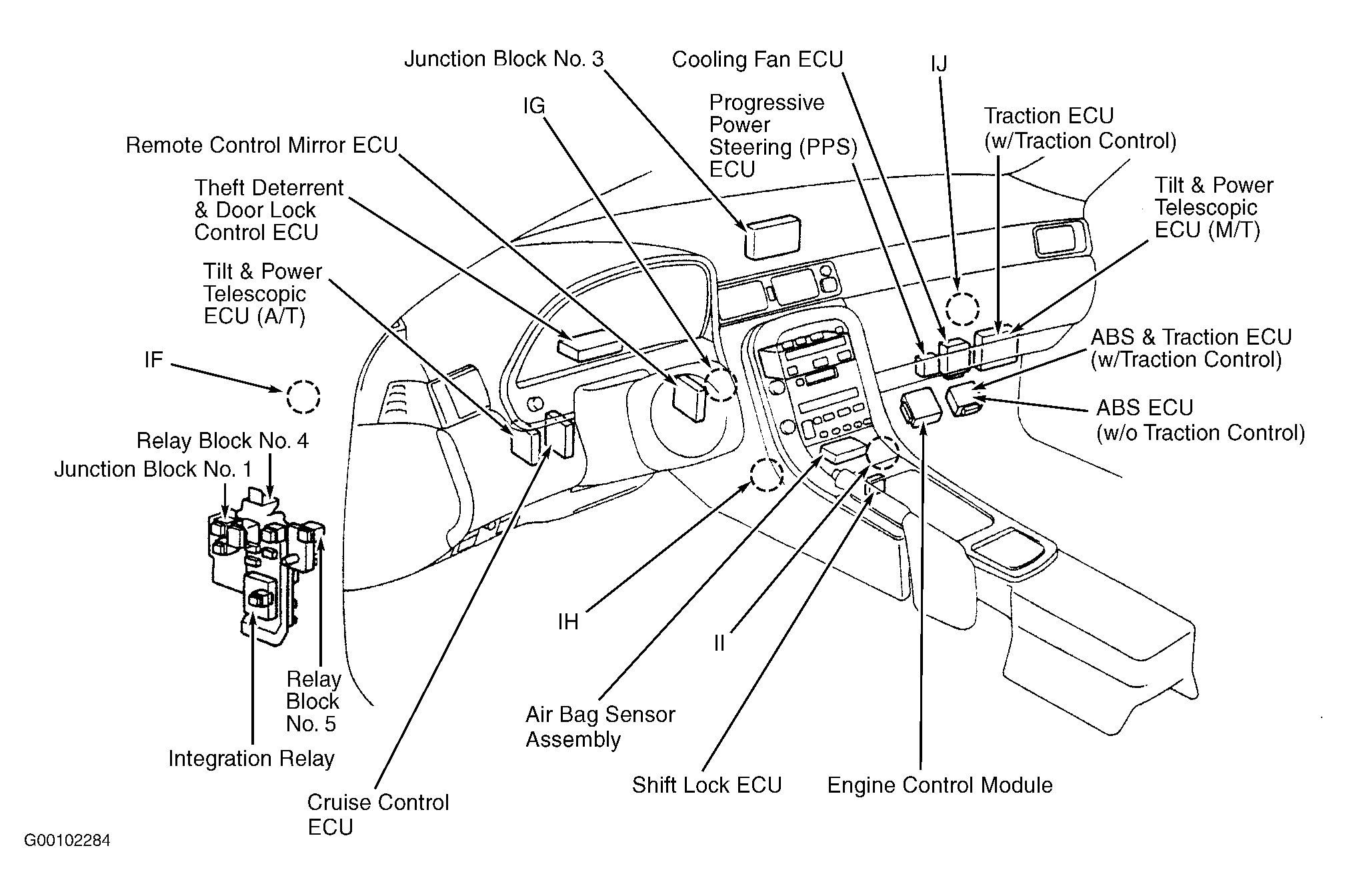

Junction Block No. 1 Behind left kick panel. See Figure.
Junction Block No. 3 Behind center of dash. See Figure.
Relay Block No. 2 In left front of engine compartment, behind battery.
Relay Block No. 4 Behind left kick panel. See Figure.
Relay Block No. 5 Behind left kick panel. See Figure.
