Rear Suspension

Measure and record camber and toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . If adjustment is necessary, loosen adjuster cam bolts. Rotate adjuster cams as necessary. See Fig 1. Tighten adjuster cam bolts to specification. See TORQUE SPECIFICATIONS .

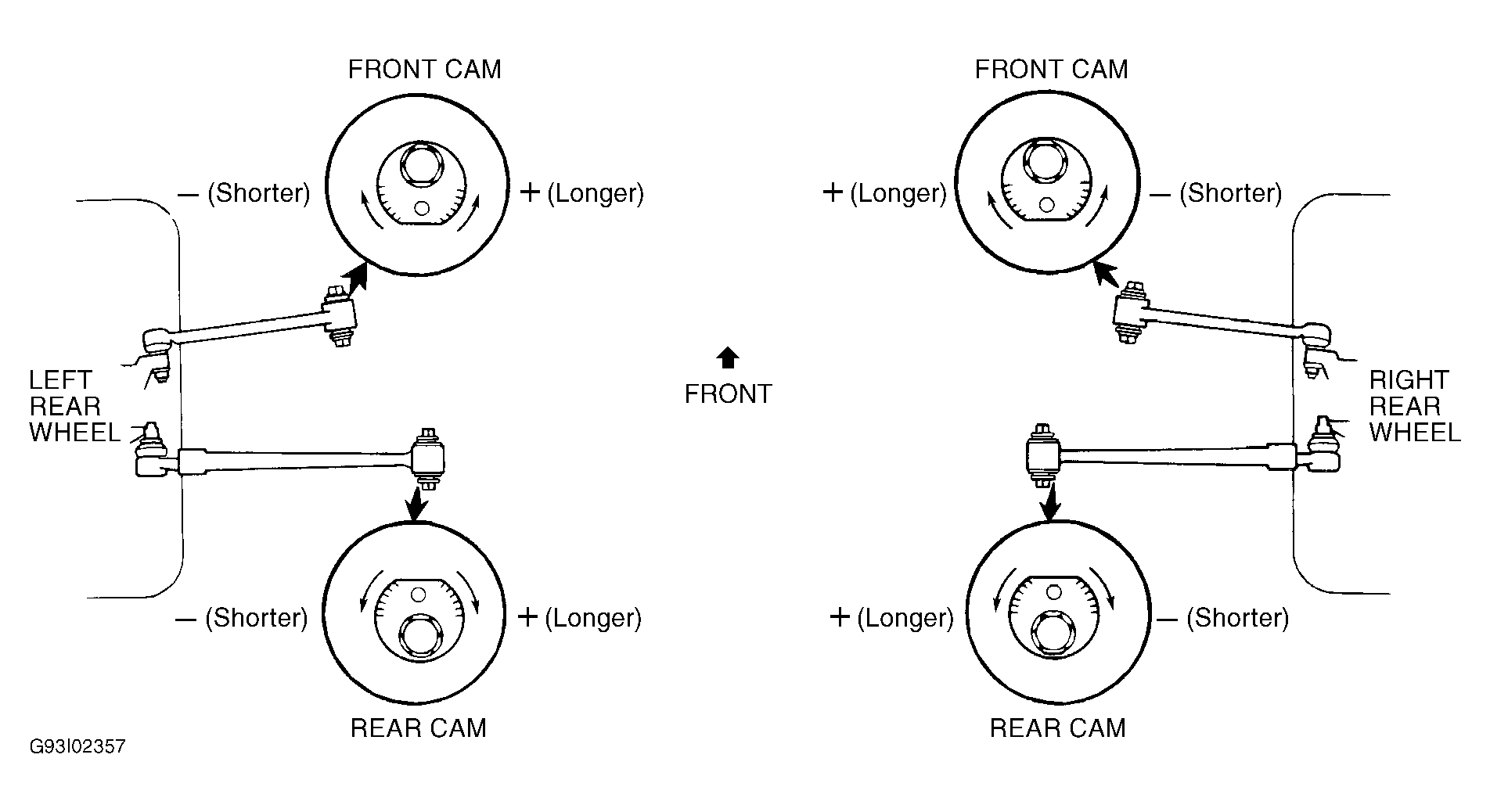

Fig 1: Identifying Rear Camber & Toe-In Adjuster Cams

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
