Power Window Motor: Circuit

Disconnect the connector from the motor.
Connect the connector to the master switch and power window switch.
Inspect the connector on the wire harness side, See Fig 1, Fig 2 and/or Fig 3 .

Fig 1: Identifying Power Window Motor Harness Connector Terminals

G00157760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

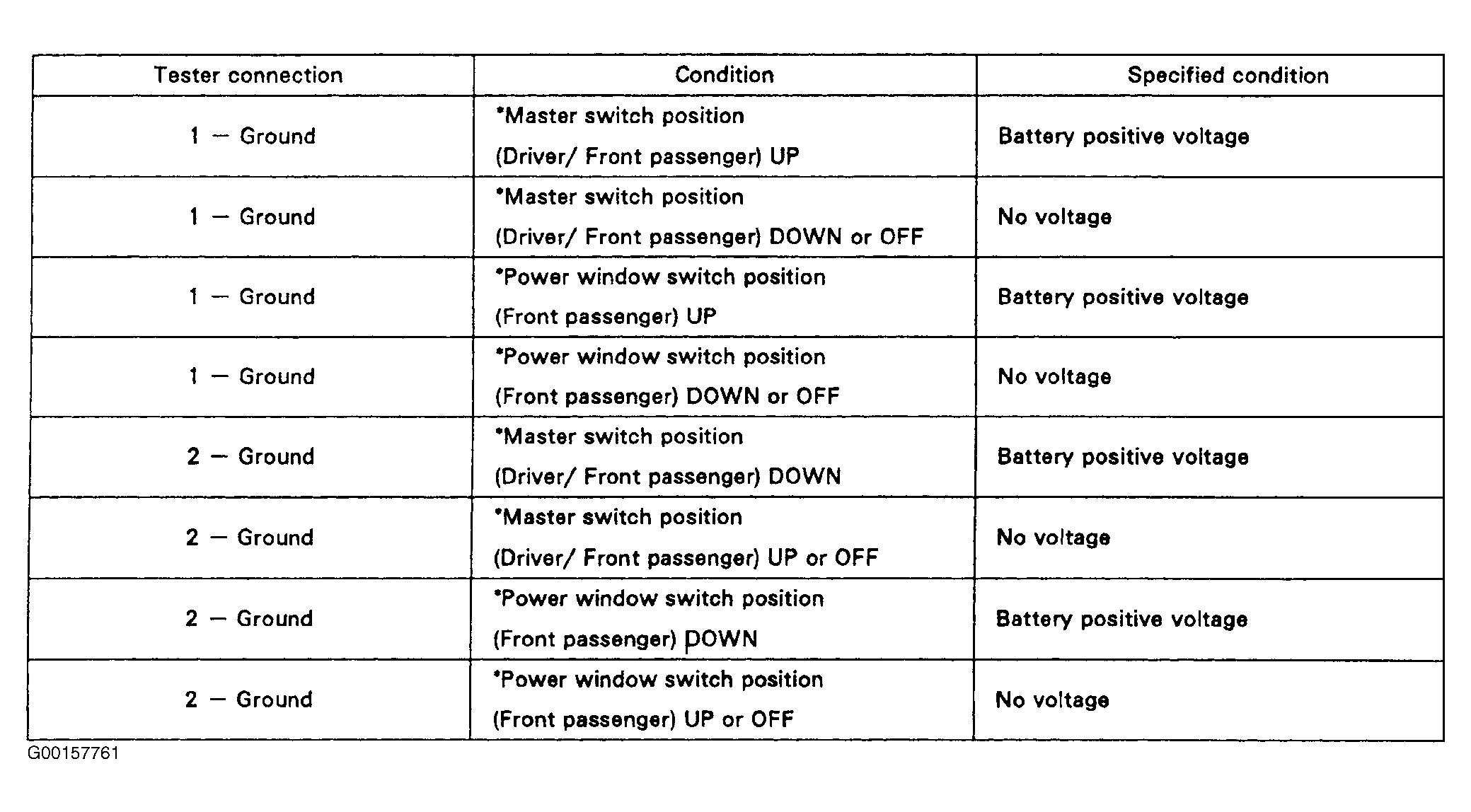

Fig 2: Testing Front Door Motor Circuit

G00157761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

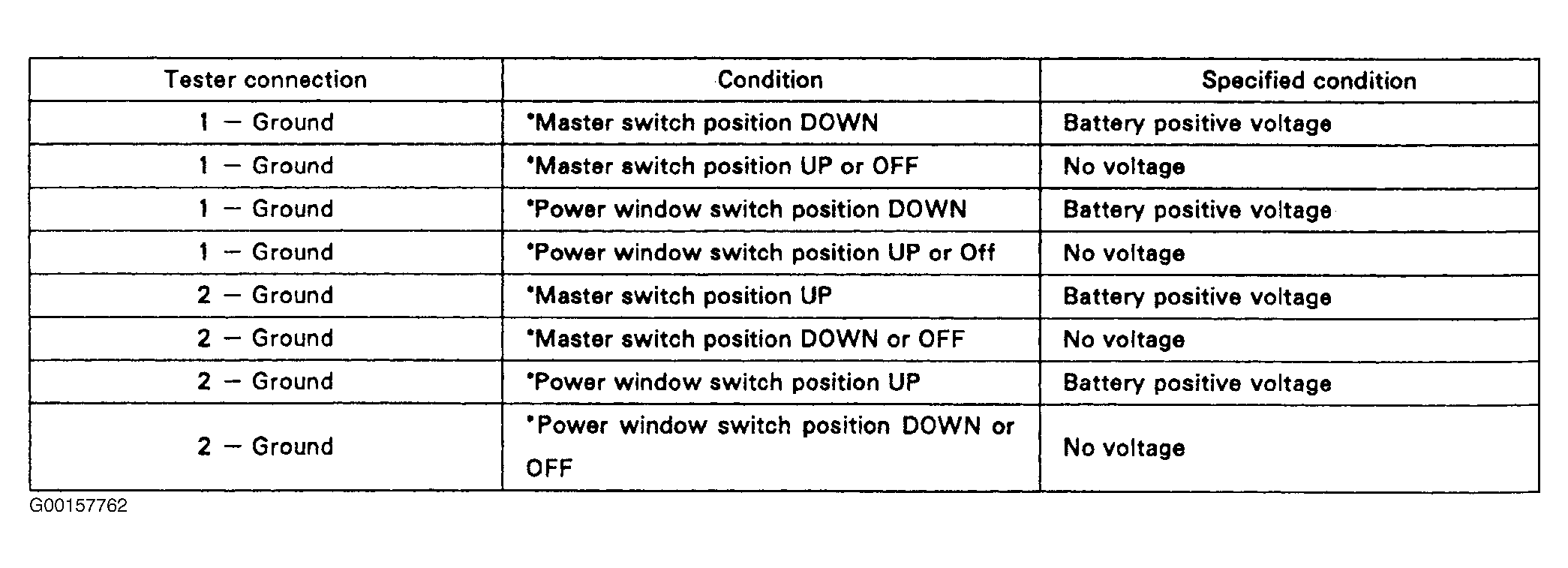

Fig 3: Testing Rear Door Motor Circuit

G00157762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
