Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Fusible Link (Main) On battery cable positive terminal.

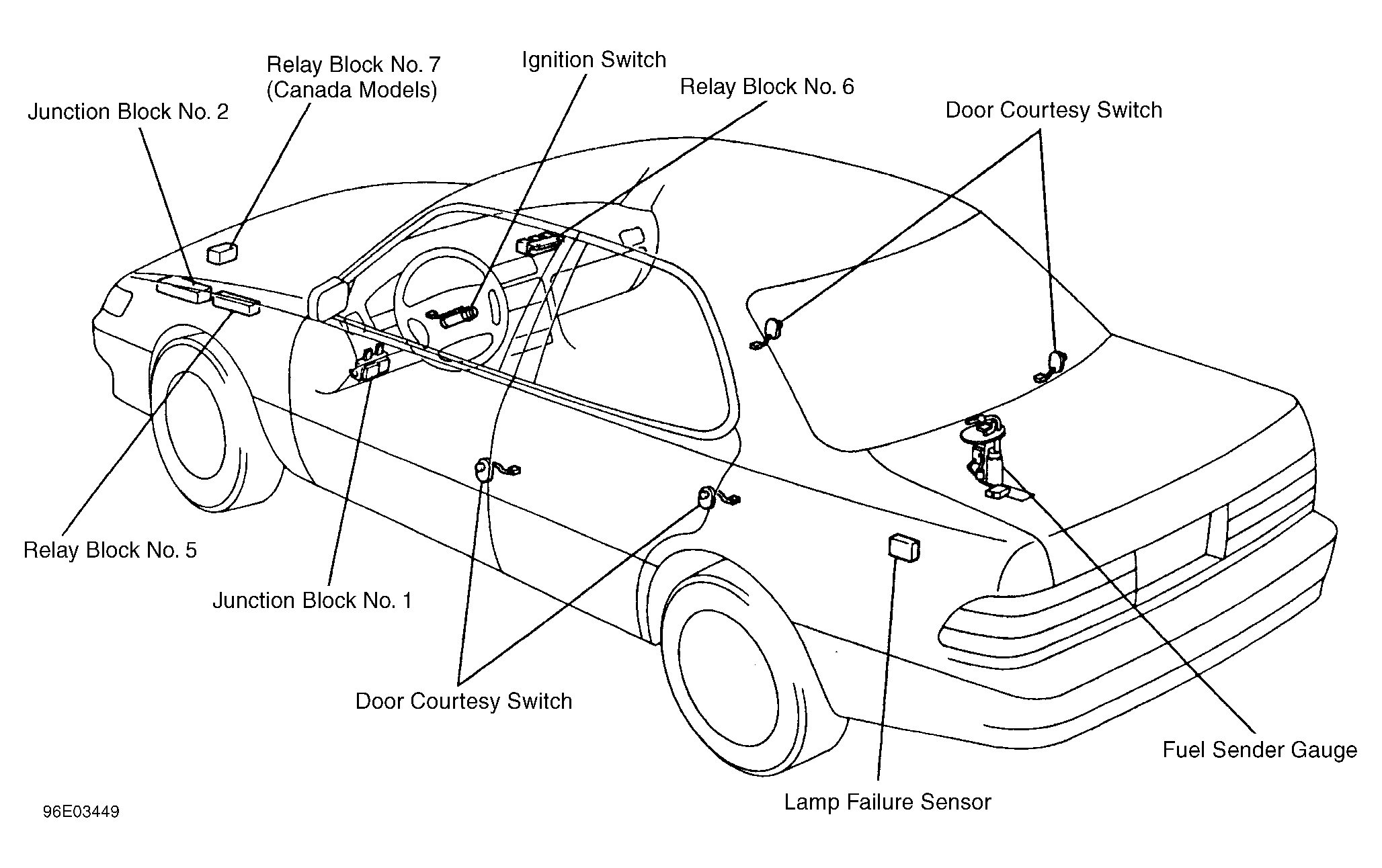

Junction Block No. 1 Below left of dash. See Figure.
Junction Block No. 2 On left front of engine compartment, front of battery. See Figure.
Junction Block No. 3 Behind combination meter.
Relay Block No. 1 Above left kick panel.
Relay Block No. 4 Above right kick panel.
Relay Block No. 5 On left front of engine compartment, next to junction block No. 1. See Figure.
Relay Block No. 6 Behind glove compartment, right side of dash. See Figure.
Relay Block No. 7 (Canada Models) On left front of engine compartment, behind left front headlamp. See Figure.
