Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

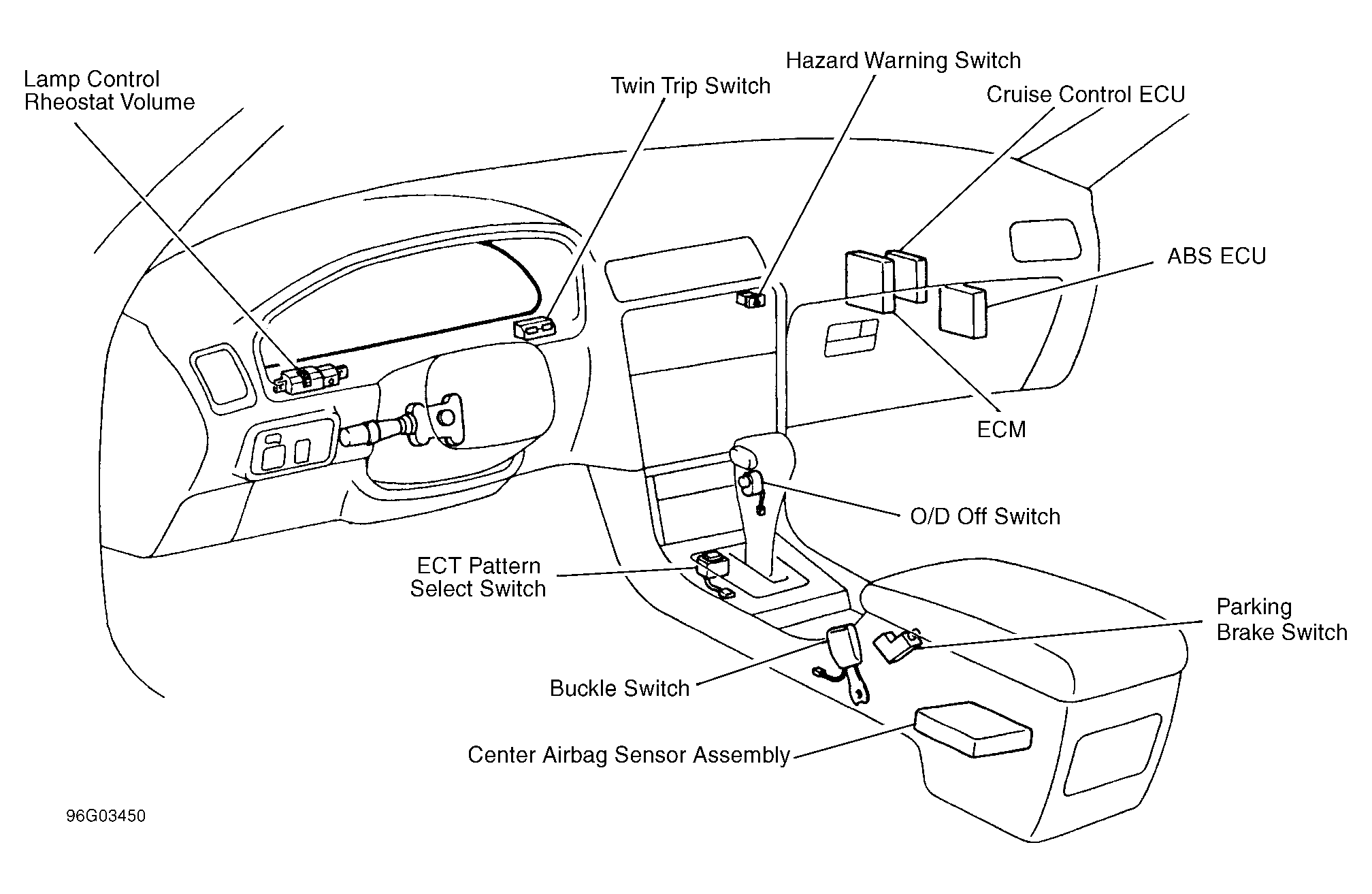

| ABS ECU | Behind right side of dash. See Figure. |
| Anti-Theft/Door Lock ECU | Behind right side of dash. |
| Blower Unit | Behind right side of dash, behind glove compartment. |
| Cruise Control ECU | Behind right side of dash. See Figure. |
| Engine Control Module (ECM) (View 1) | Behind right side of dash. See Figure. |
| Engine Control Module (ECM) (View 2) | Behind right side of dash. See Figure. |
| Shift Lock ECU (A/T) | Under center console, behind shifter. |
| Wireless Door Lock ECU | On left side of luggage compartment. |
