Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

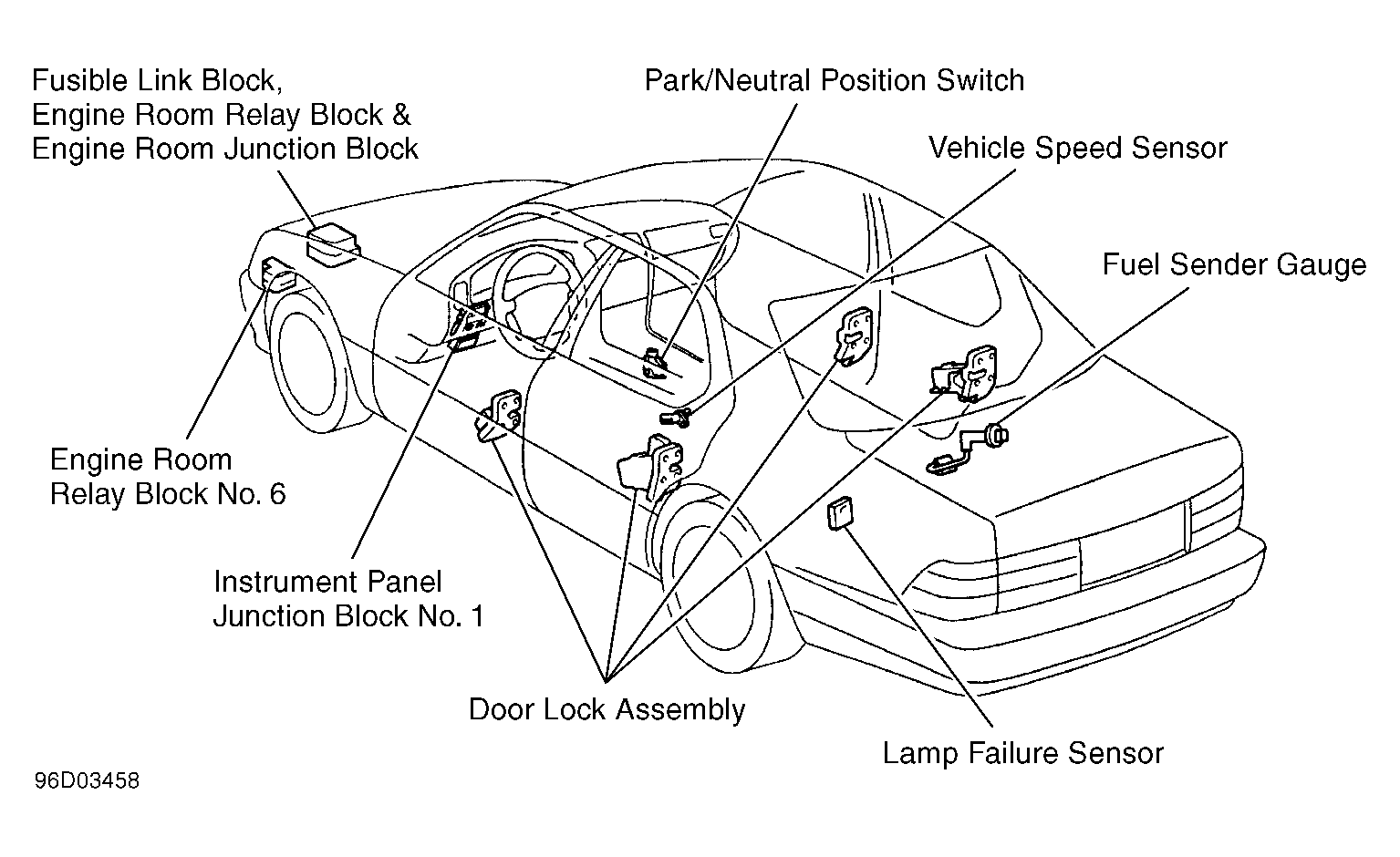

Engine Room Junction Block On left side of engine compartment. See Figure.
Engine Room Relay Block On left side of engine compartment. See Figure.
Engine Room Relay Block No. 6 On left front of engine compartment, behind headlamp. See Figure.
Fusible Link Block On left side of engine compartment. See Figure.
Instrument Panel Junction Block No. 1 Under left side of dash. See Figure.
