Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS ECU | Behind right side of dash. See Figure. |
| A/C System ECU | Behind center of console, integral of A/C control assembly. |

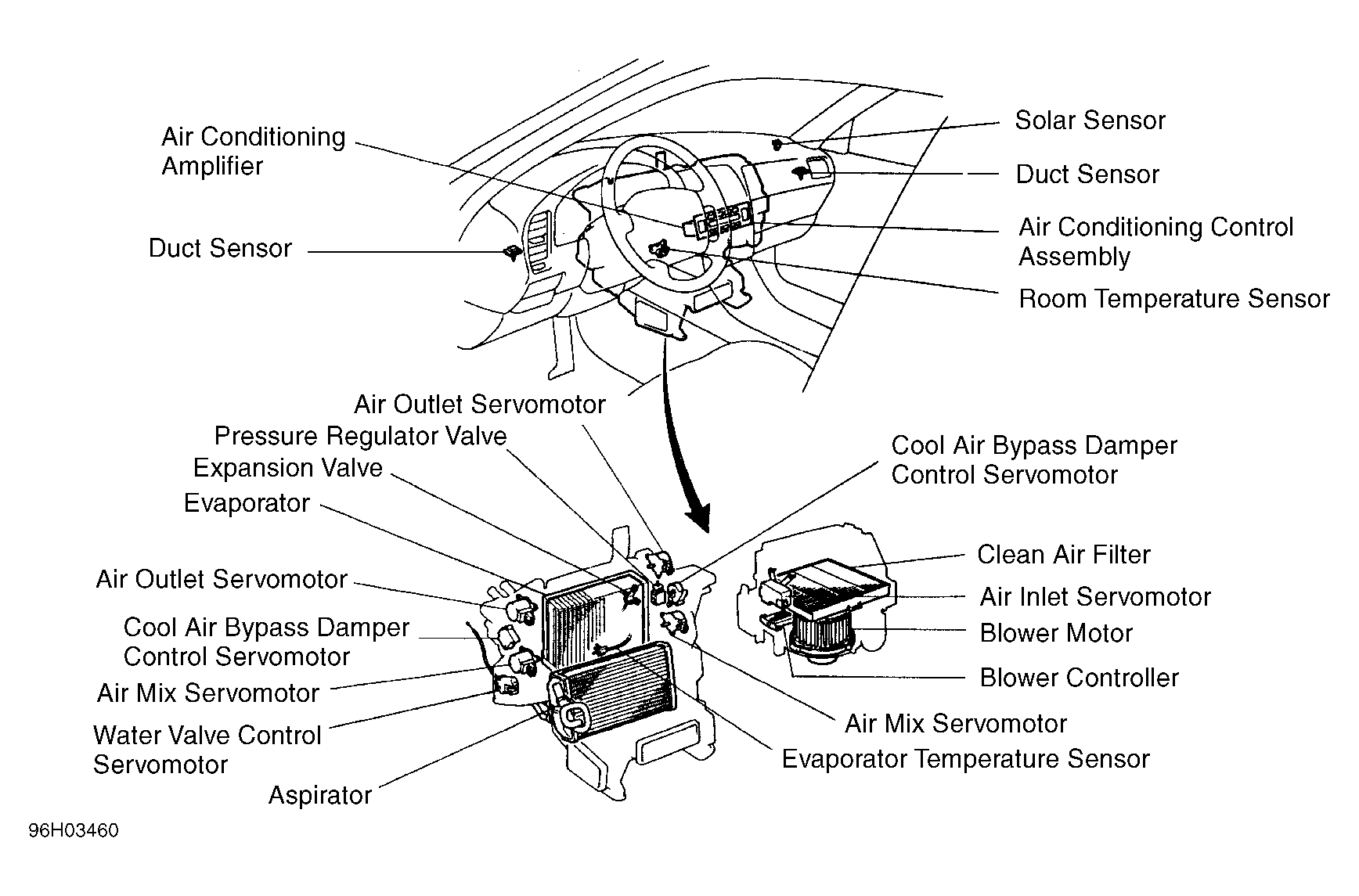

| Air Conditioning Amplifier | Behind center of dash. See Figure. |

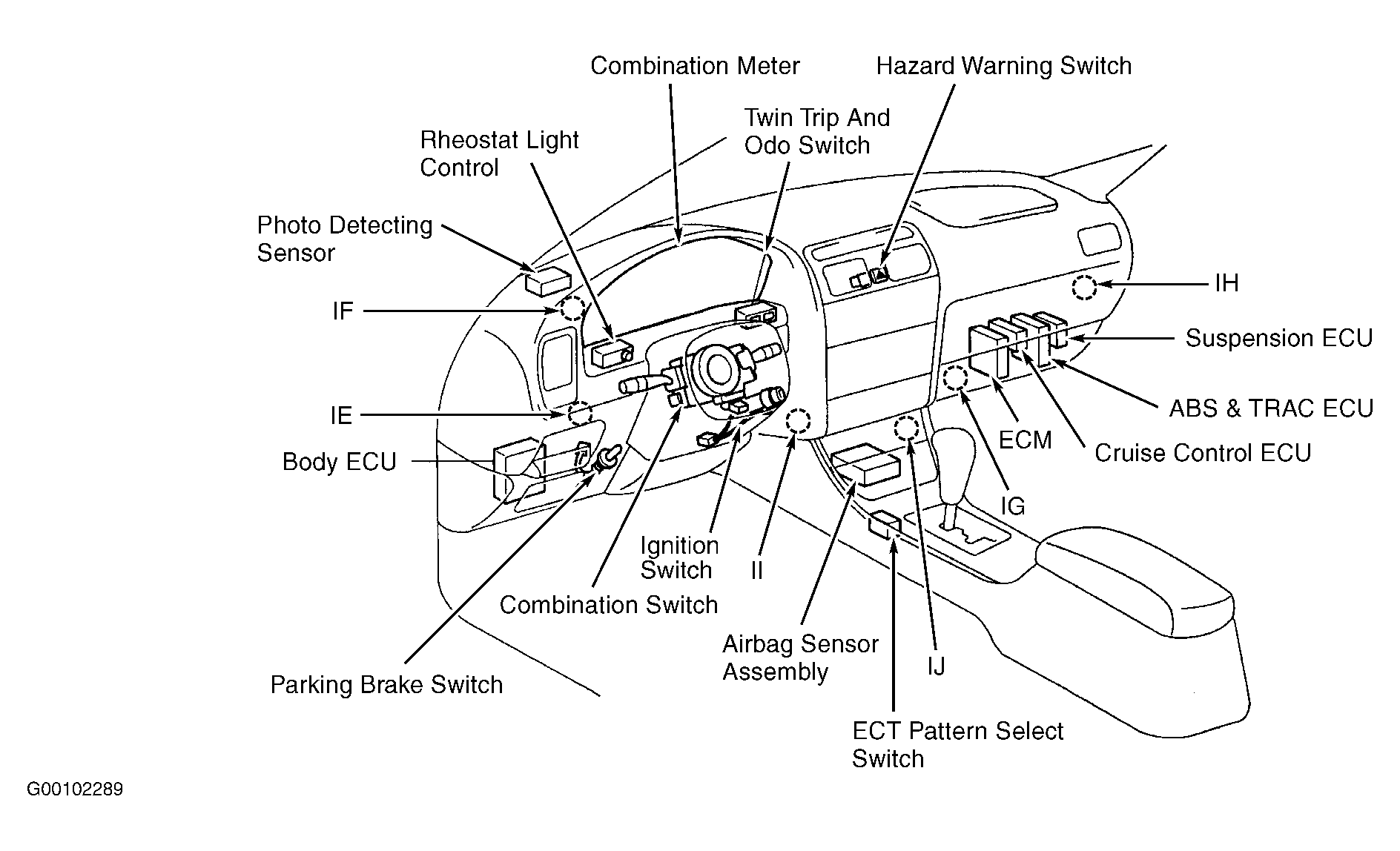

| Body ECU | Behind left side of dash. See Figure. |
| Cruise Control ECU | Behind right side of dash See Figure. |
| Driver Door ECU | In driver door. |
| Engine Control Module (ECM) (View 1) | Behind right side of dash. See Figure. |
| Engine Control Module (ECM) (View 2) | Behind right side of dash. See Figure. |
| Passenger Door ECU (Front) | In front passenger door. |
| Power Seat ECU | Under driver's seat. |
| Progressive Power Steering ECU | Behind left side of dash, above steering column. |
| Shift Lock ECU | Under center console, on base of gear selector. |
| Suspension ECU | Behind right side of dash. See Figure. |
| Tilt & Telescopic Steering Column ECU | Behind left side of dash, above steering column. |
| TRAC ECU | Behind right side of dash, integral of ABS ECU. See Figure. |
| Transmission ECU | Behind right side of dash, integral of engine ECU. |
| Wireless Door Lock ECU | Behind right side of dash. |
