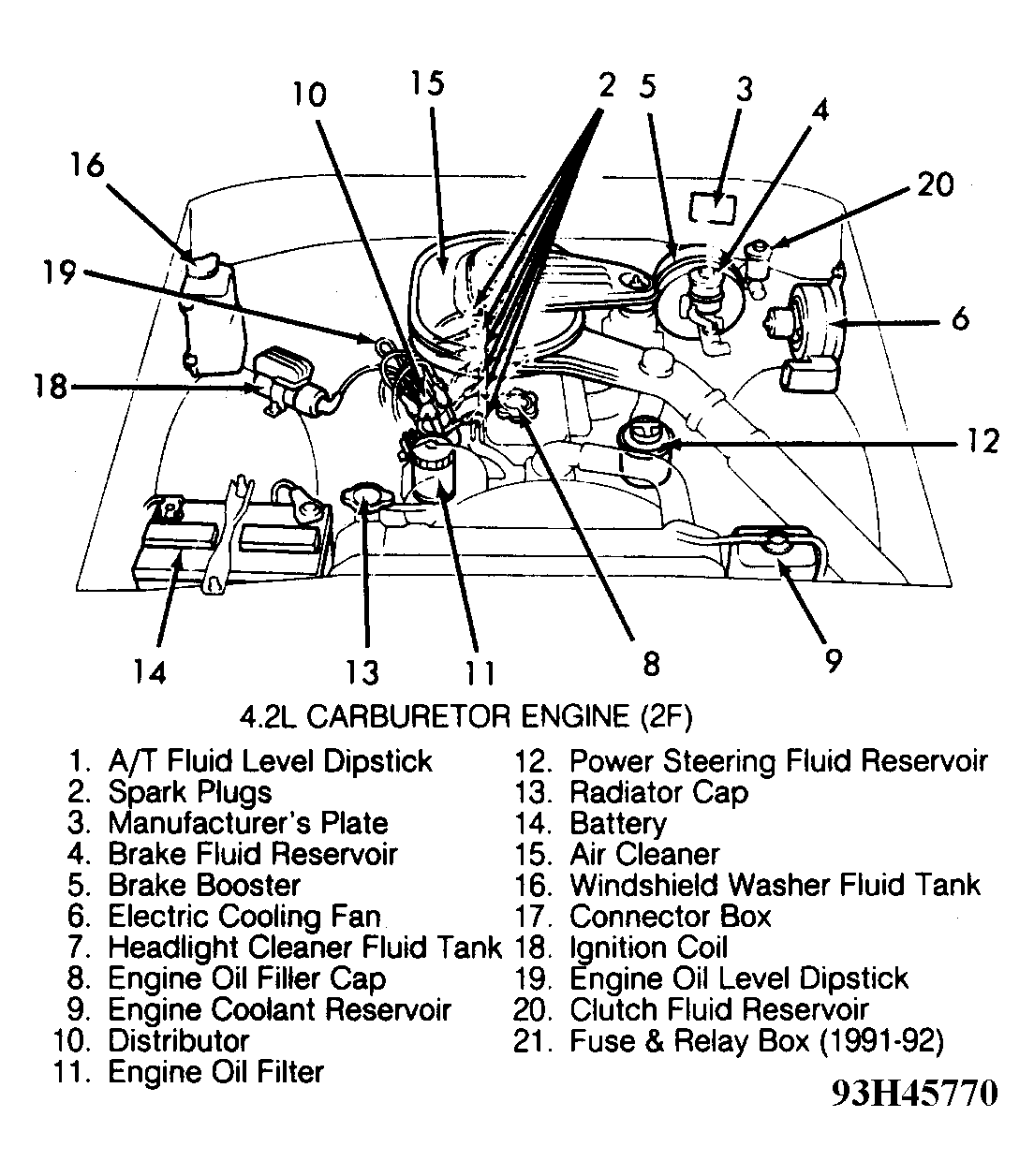

Fig 1: Service Point Locations (1983-87 4.2L Engine (2F))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

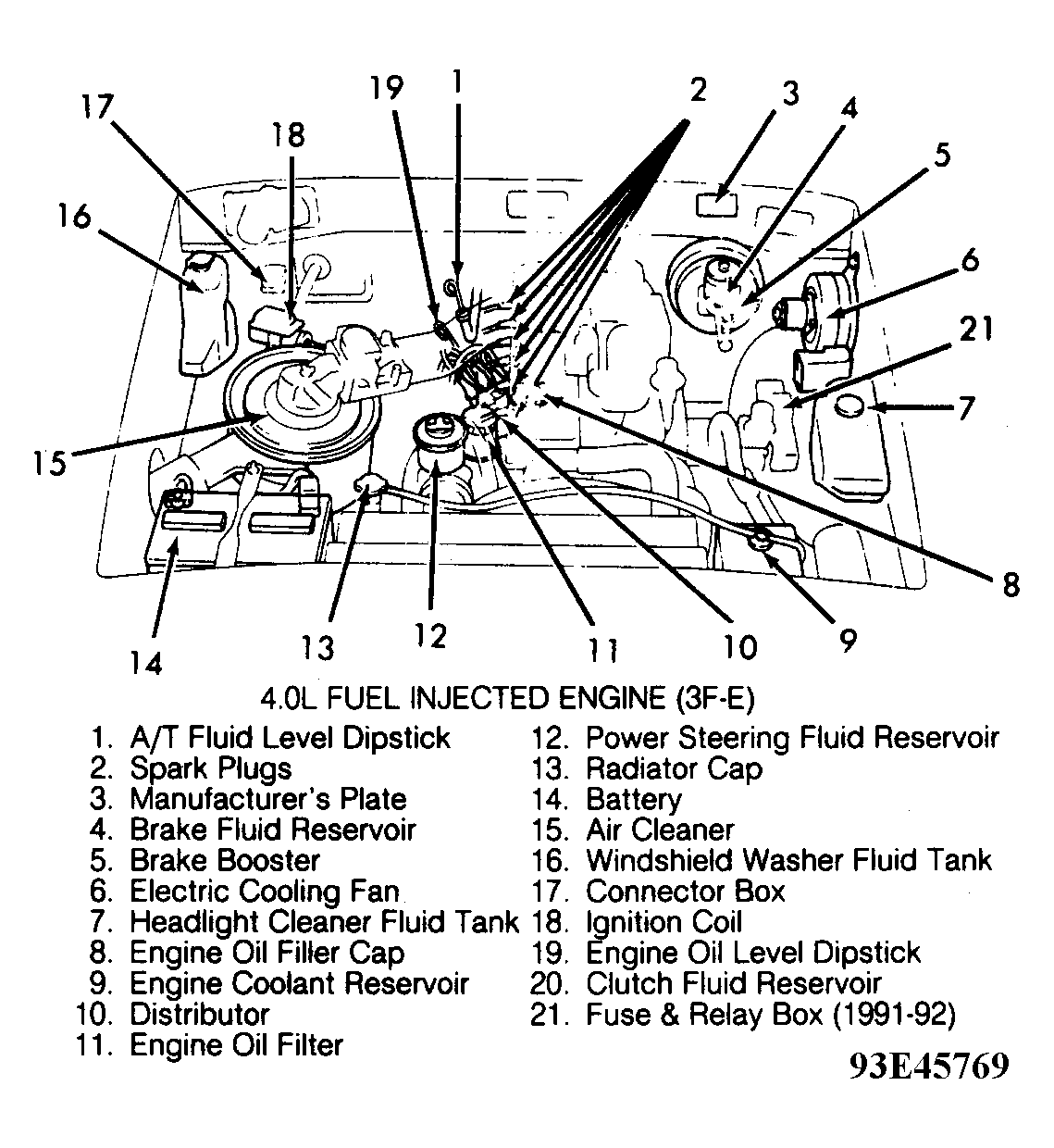

Fig 2: Service Point Locations (1988-92 4.0L Engine (3F-E))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

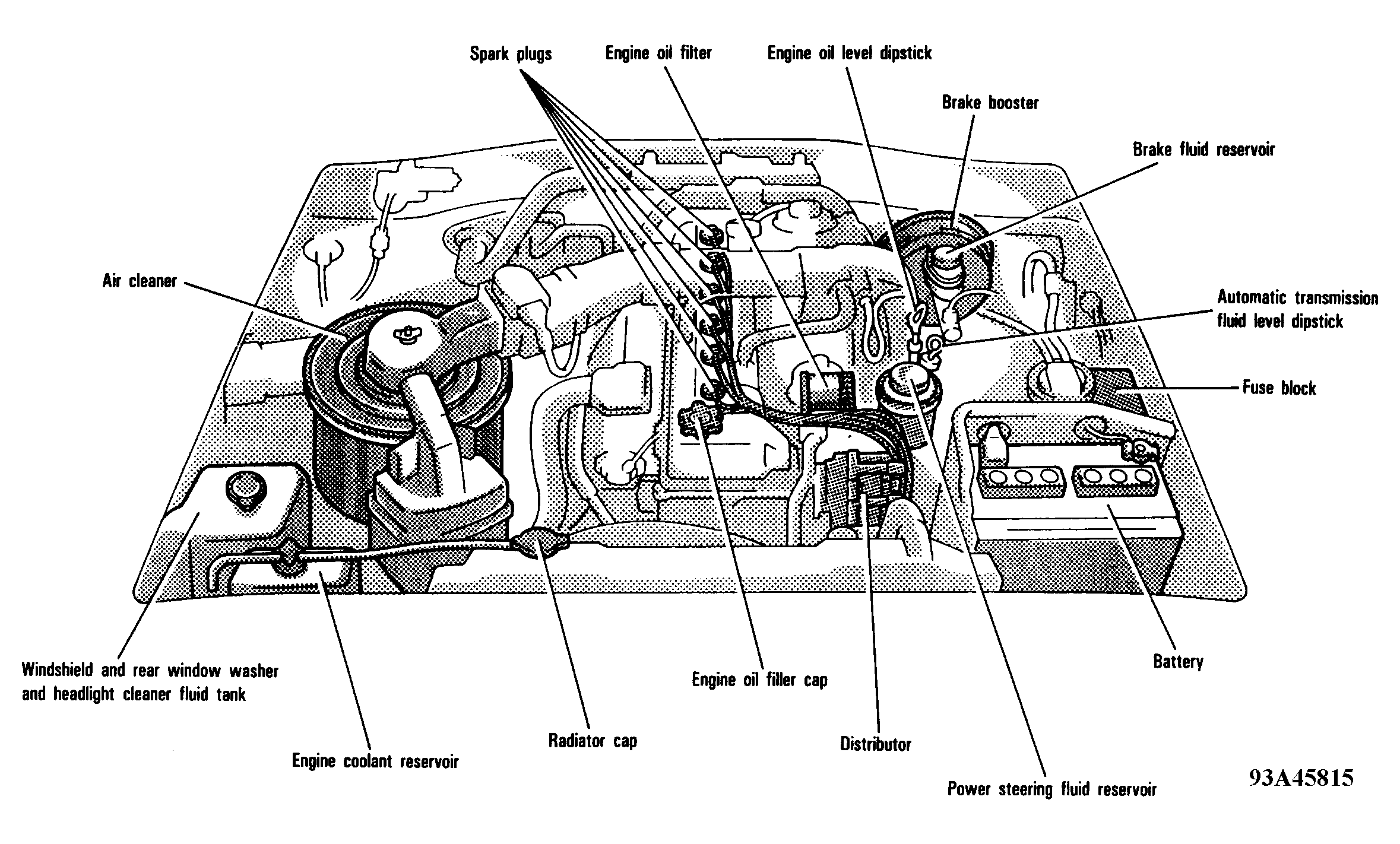

Fig 3: Service Point Locations (1993-96 4.5L Engine (1FZ-FE))
