Connecting Tachometer
CAUTION:
Ensure tachometer is compatible with ignition system. DO NOT
allow tachometer terminal (IG-) to become grounded, as it could result in damage to ignitor and/or ignition coil.

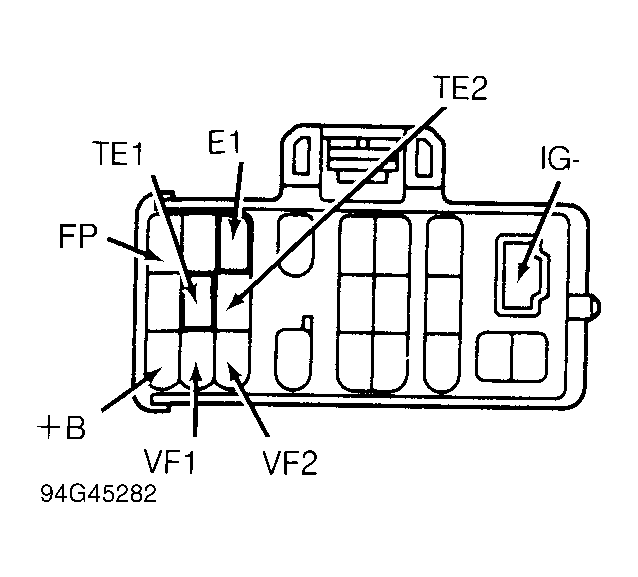

Connect tachometer between chassis ground and terminal IG- at DLC No. 1. See Fig 1. DLC No. 1 is located on front of air intake chamber.
