Sub-Throttle Position (Sub-TP) Sensor: Adjustment

1. Disconnect sub-TP sensor connector. Loosen sub-TP sensor mounting screws. Remove sub-throttle actuator. See Fig 1. Ensure sub-throttle valve is fully closed and sub-throttle valve gear is touching stop screw. Insert feeler gauge between gear and stop screw. See SUB-TP SENSOR ADJUSTMENT  table.

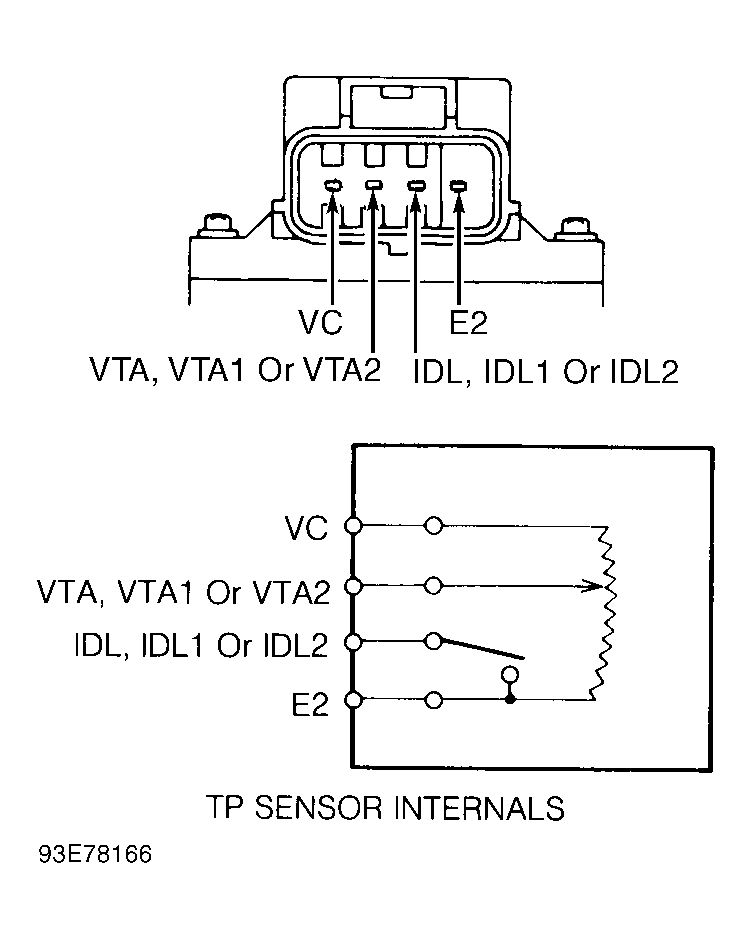

2. Connect ohmmeter between terminals IDL2 and E2 of sub-TP sensor connector. See Figure. Rotate sub-TP sensor counterclockwise until there is no continuity, then rotate it clockwise until there is continuity. Tighten sub-TP sensor mounting screws. Inspect sub-TP sensor again.

SUB-TP SENSOR ADJUSTMENT

Application	Feeler Gauge Thickness
Sub-TP Sensor	.012" (.30 mm)

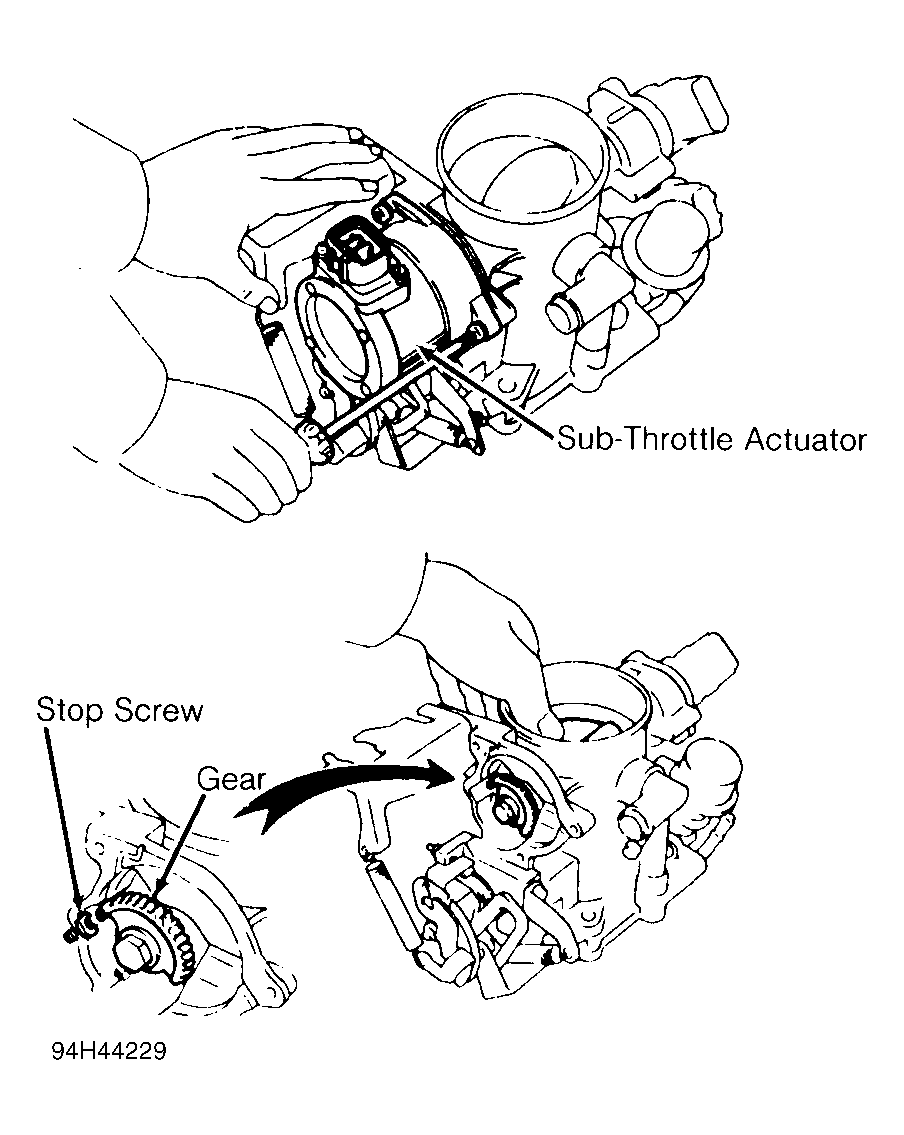

Fig 1: Locating Sub-Throttle Valve Stop Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
