Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

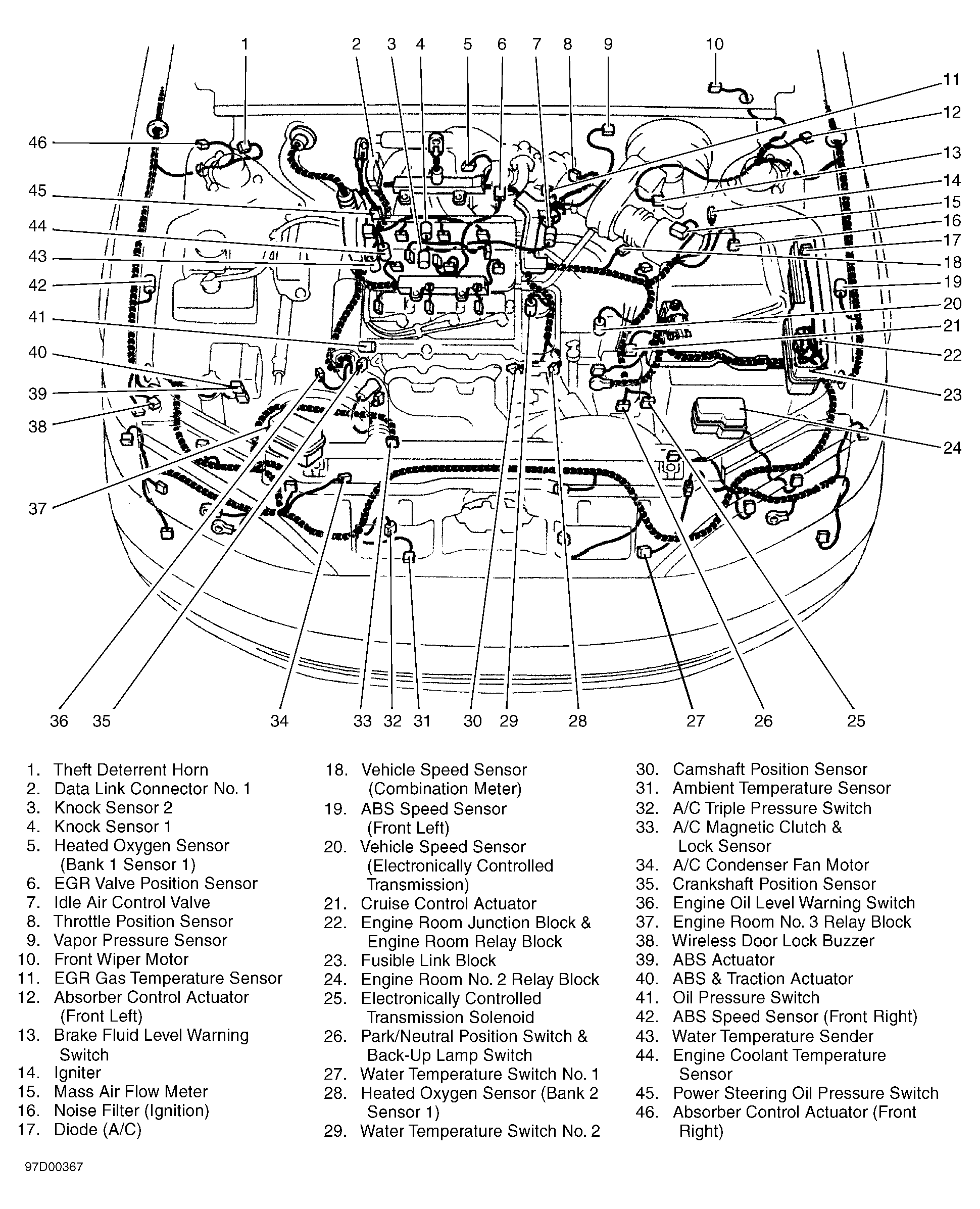

Engine Room Junction Block On left side of engine compartment. See Figure.
Engine Room No. 2 Relay Block On left front of engine compartment. See Figure.
Engine Room No. 3 Relay Block In right front of engine compartment, on radiator upper support. See Figure.
Engine Room Relay Block On left side of engine compartment, inside engine room junction block. See Figure.
Fusible Link Block On left side of engine compartment, inside engine room junction block. See Figure.
Instrument Panel Junction Block Behind left side of dash, near kick panel. See Figure.
