Control Units

CONTROL UNITS

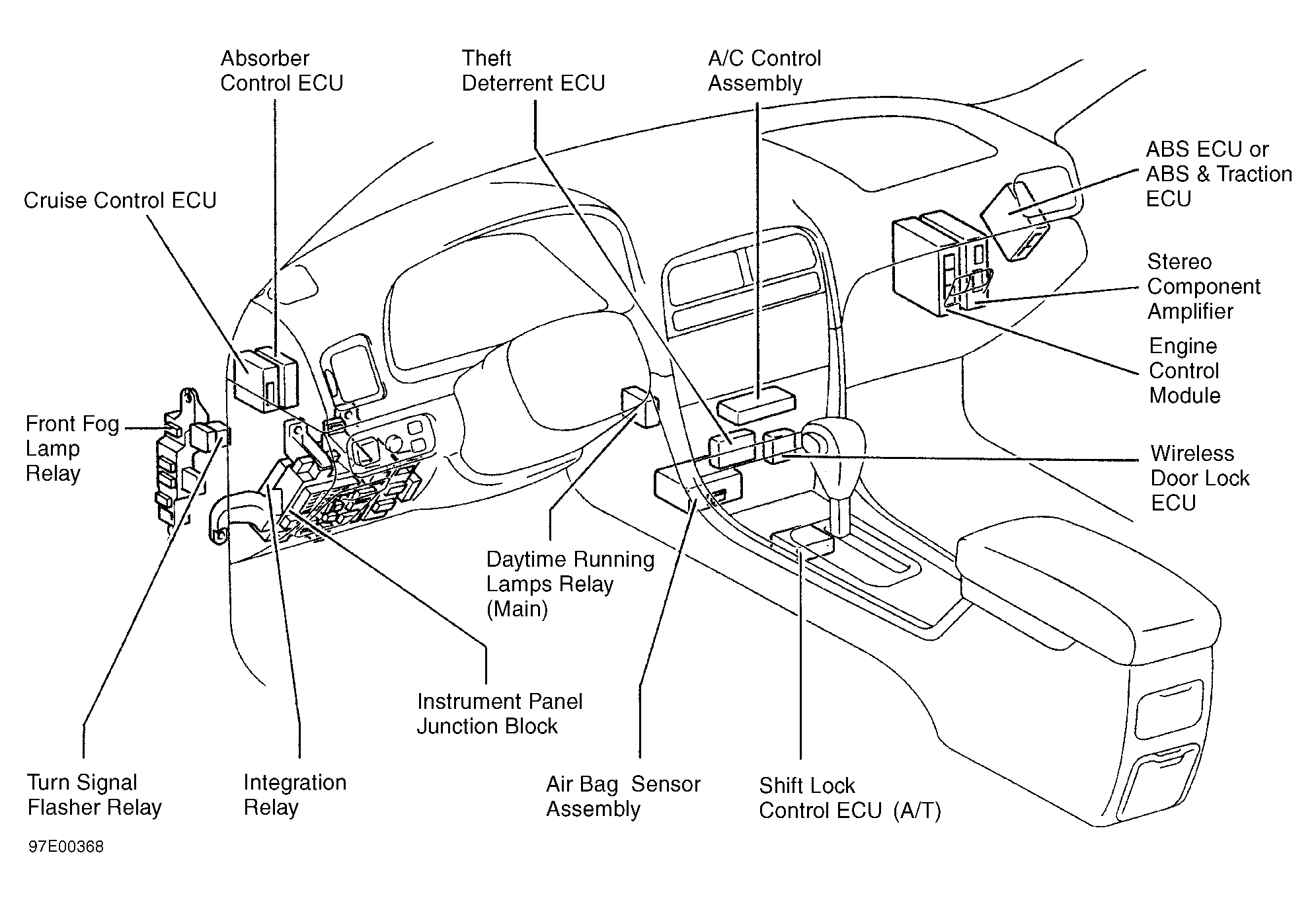

Component Component Location
ABS ECU Behind right side of dash. See Figure.
ABS & Traction ECU Behind right side of dash. See Figure.
Absorber Control ECU Behind left side of dash. See Figure.
A/C Control Assembly Under center of dash, behind center console. See Figure.
Cruise Control ECU Behind left side of dash. See Figure.
Engine Control Module Behind right side of dash. See Figure.
Shift Lock Control ECU (A/T) Under center console, beside shift lever. See Figure.
Theft Deterrent ECU Under center of dash, behind center console. See Figure.
Wireless Door Lock ECU Under center of dash, behind center console. See Figure.
