ACIS Intake Air Control System

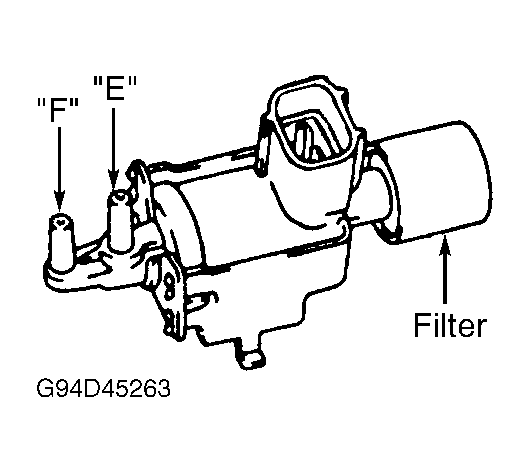

  1. Install a 3-way vacuum "T" fitting in vacuum hose between Intake Air Control Valve (IACV) actuator and ACIS Vacuum Switch Valve (VSV). See Figure. Connect a vacuum gauge to vacuum "T" fitting. Start engine. With engine idling, ensure no vacuum reading is obtained.
  2. Fully open throttle and ensure vacuum reading momentarily reads at least 8 in. Hg and IACV actuator rod pulls downward. If IACV actuator rod pulls downward, no problem is indicated. If actuator valve rod fails to pull downward, go to next step.
  3. Remove IACV. Apply about 8 in. Hg to IACV actuator. If IACV actuator rod does not move, replace IACV actuator. If IACV actuator rod moves, check to see if diaphragm holds vacuum for at least one minute. If diaphragm does not hold vacuum, replace actuator. If diaphragm holds vacuum, no problem is indicated. Check ACIS vacuum tank. See ACIS VACUUM TANK .
