Reading Trouble Codes

Trouble codes are displayed as flashes of open door indicator light. All trouble codes are 2-digit numbers. Pay careful attention to length of pauses in order to read codes correctly. See Fig 1.

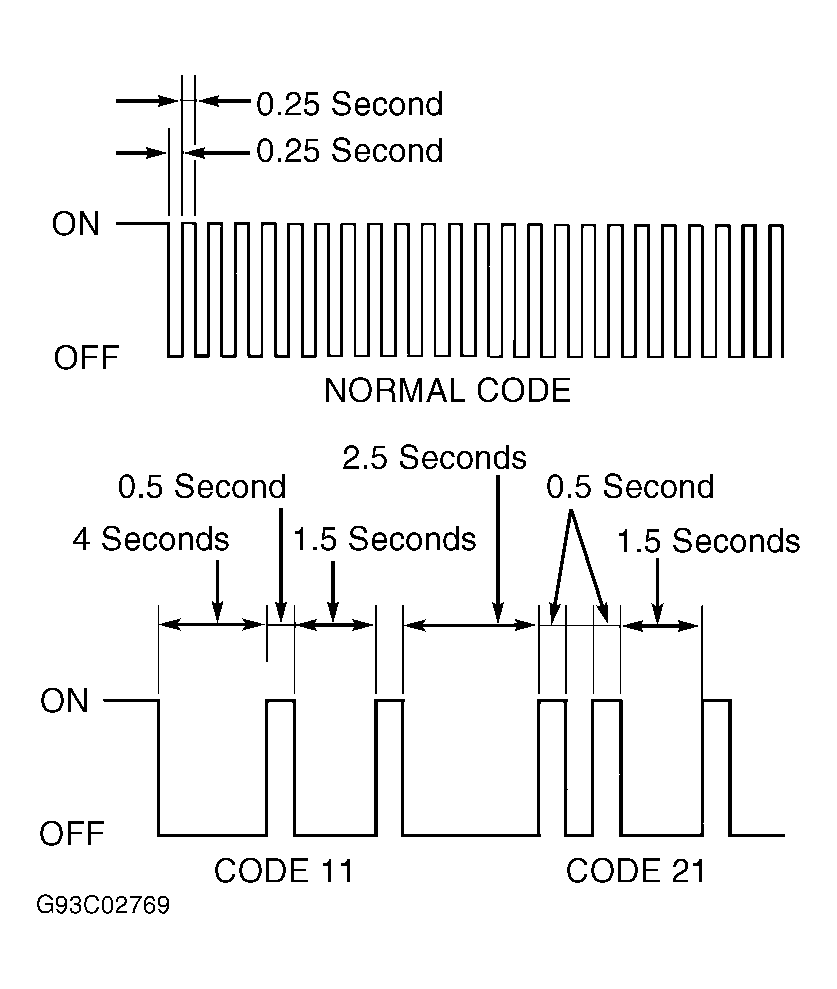

Fig 1: Reading Trouble Codes
G93C02769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
