Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

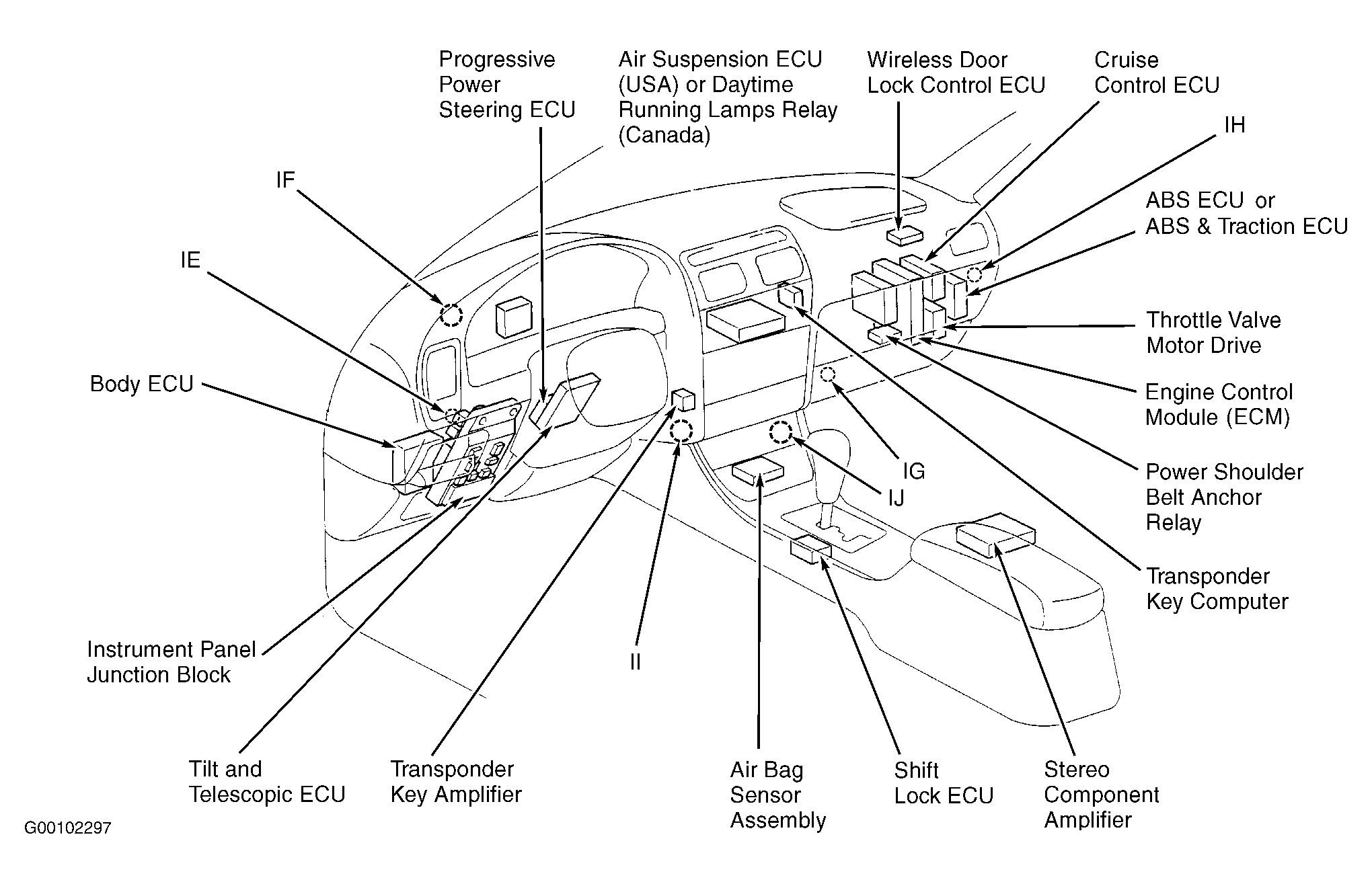

| ABS ECU | Behind right side of dash. See Figure. |
| ABS & Traction ECU | Behind right side of dash. See Figure. |
| A/C System ECU | Behind center of console, integral of A/C control assembly. |
| Air Suspension ECU (USA) | Behind right side of dash. See Figure. |
| Body ECU | Behind left side of dash. See Figure. |
| Cruise Control ECU | Behind right side of dash. See Figure. |

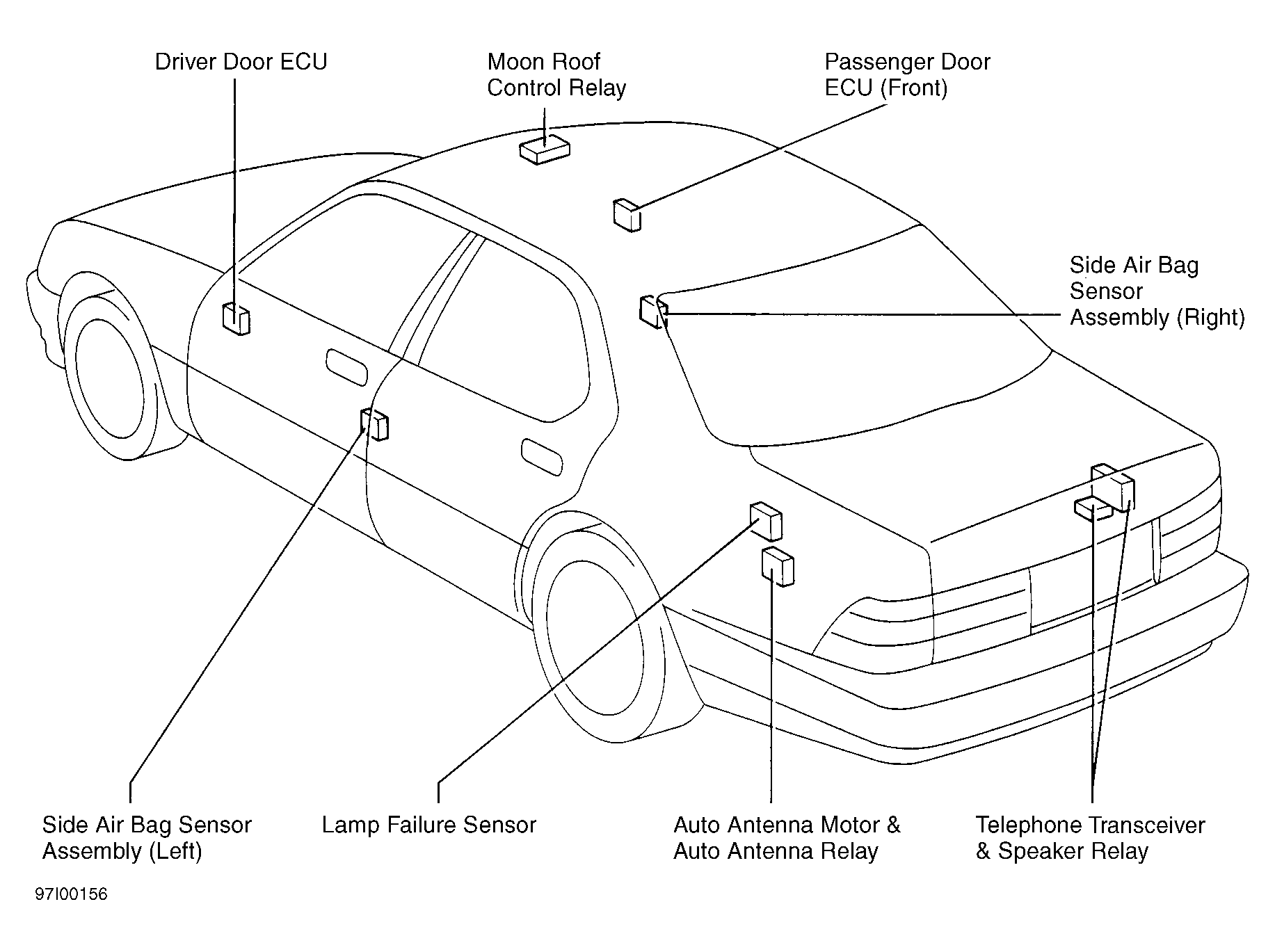

| Driver Door ECU | In driver's door. See Figure. |
| Engine Control Module (ECM) | Behind right side of dash. See Figure. |
| Passenger Door ECU (Front) | In front passenger's door. See Figure. |
| Power Seat ECU | Under driver's seat. |
| Progressive Power Steering ECU | Behind left side of dash above steering column. See Figure. |
| Shift Lock ECU | Under center console, on base of gear selector. See Figure. |
| Tilt & Telescopic ECU | Behind left side of dash, above steering column. See Figure. |
| Transmission ECU | Behind right side of dash, integral of engine ECU. |
| Wireless Door Lock Control ECU | Behind right side of dash. See Figure. |
