Pin Voltage Charts

NOTE: When using pin voltage chart, it may be necessary to determine wire color by using wire color abbreviation. See WIRE COLOR ABBREVIATIONS table.
NOTE: For wiring circuit identification, see appropriate wiring diagram in WIRING DIAGRAMS article.
WIRE COLOR ABBREVIATIONS (1)

Color Code Wire Color
B Black
BR Brown
G Green
GR Gray
L Blue
LG Light Green
O Orange
P Pink
R Red
V Violet
W White
Y Yellow
(1) Example: L-Y is a Blue wire with a Yellow tracer.

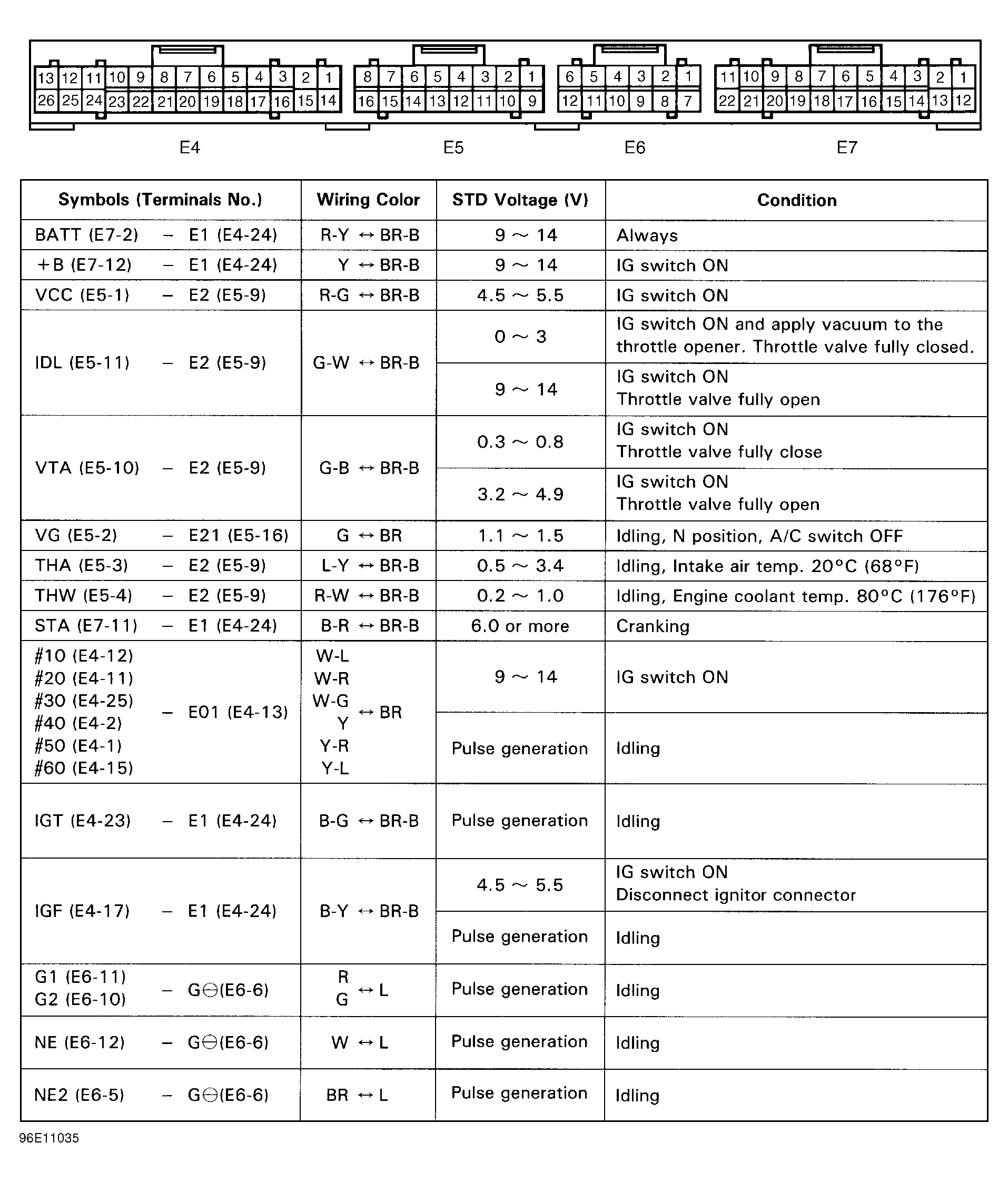

Fig 1: Pin Voltage Chart (1 Of 2)
G96E11035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

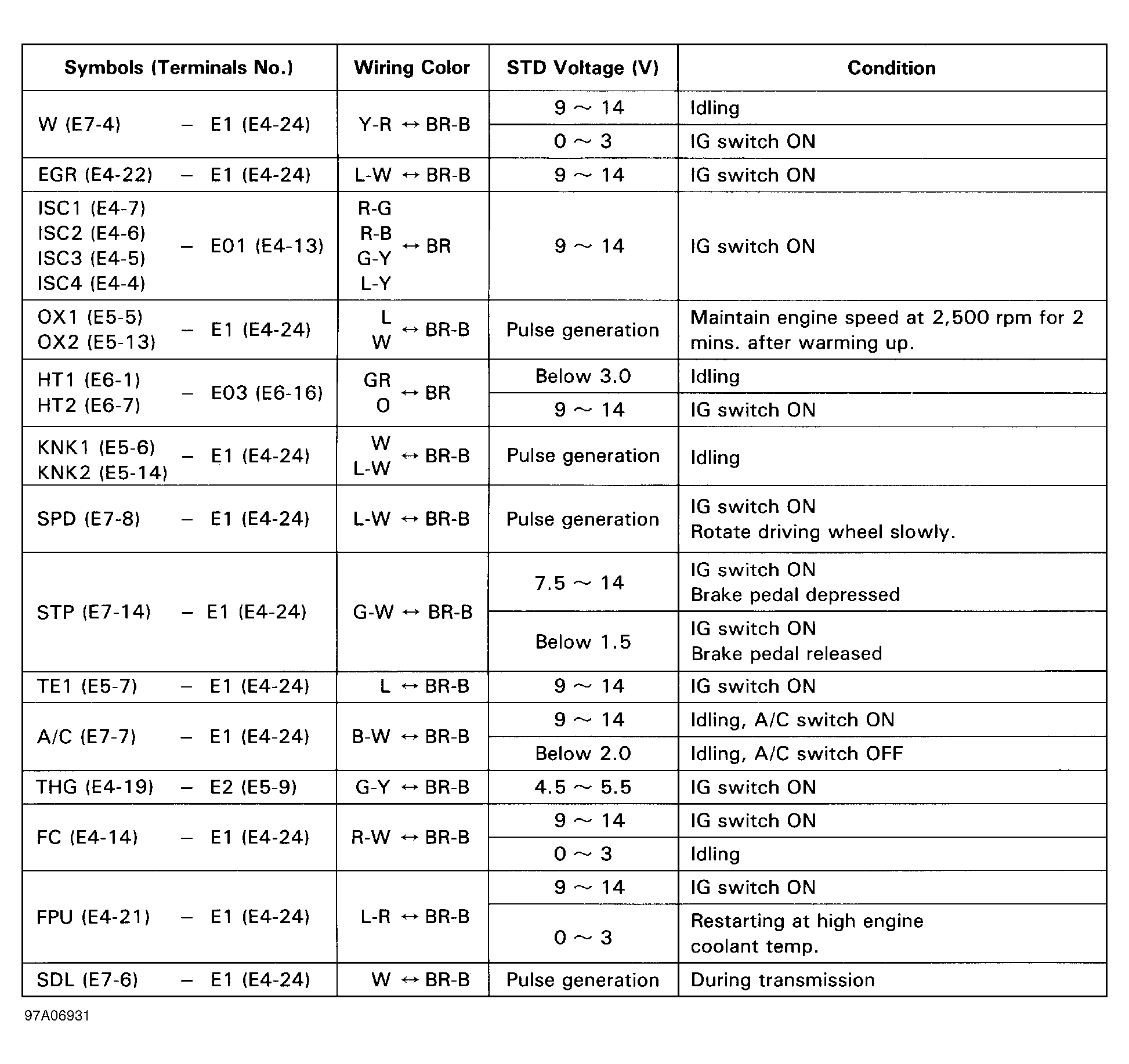

Fig 2: Pin Voltage Chart (2 Of 2)
G97A06931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
