Firing Order

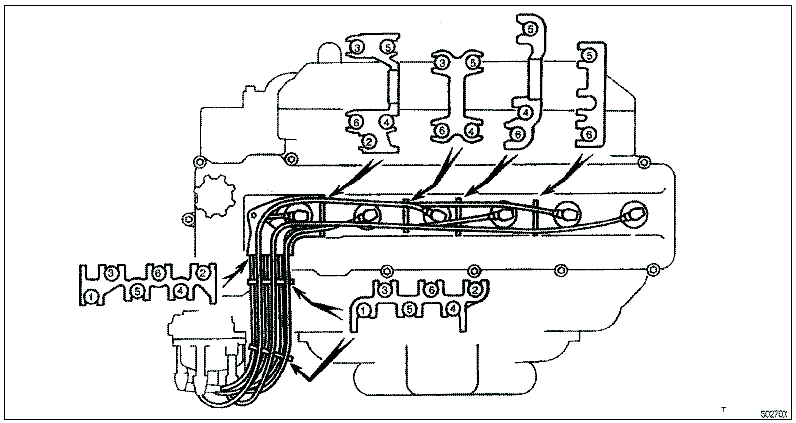

Fig 1: Ignition Wire Routing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FIRING ORDER

Application

Firing Order

6-Cylinder ⁽¹⁾

1-5-3-6-2-4

⁽¹⁾	Cylinder No. 1 is located at timing belt or timing chain end of engine. Cylinder No. 6 is located at flywheel end of engine.
