Data Link Connector

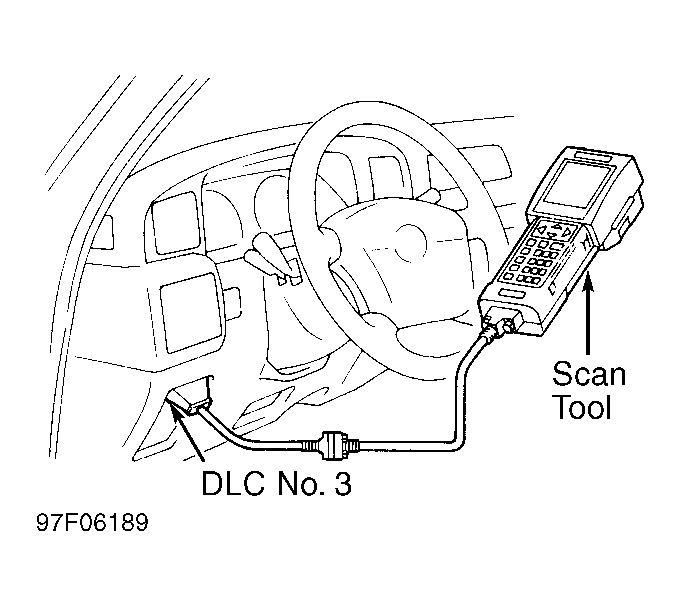

OBD-II regulations (SAE J-1850) standardizes Data Link Connector (DLC) configurations. See DATA LINK CONNECTOR (DLC) NO . 3 LOCATION table. See Figure.
DATA LINK CONNECTOR (DLC) NO. 3 LOCATION
| Application | Location |
|---|---|
| LX 450/Land Cruiser | Left Side Of Instrument Panel, Left Of Steering Column |
