Passenger's Switch Test

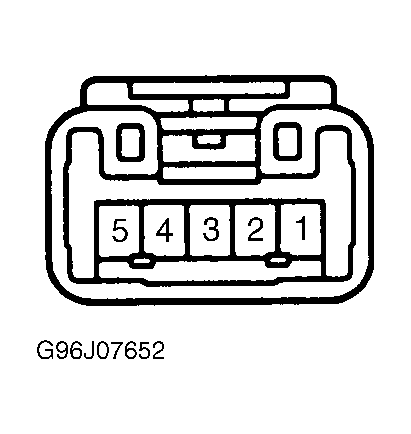

Remove passenger's switch. Check for continuity between specified terminals of passenger's switch. See Fig 1. See PASSENGER'S SWITCH CONTINUITY TEST table. If continuity is not as specified, replace passenger's switch.
PASSENGER'S SWITCH CONTINUITY TEST
| Position | Terminals No. |
|---|---|
| Off (Neutral) | 1 & 2; 4 & 5 |
| Up | 1 & 2; 3 & 5 |
| Down | 1 & 3; 4 & 5 |
