Anti-Theft Indicator

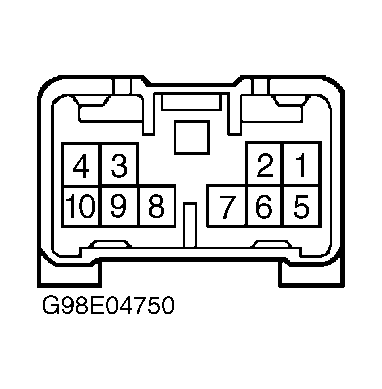

Disconnect indicator light Blue 10-pin connector. Connect battery positive lead to terminal No. 4 (Violet/Red wire) and negative battery lead to terminal No. 7 (White/Black wire). See Fig 1. If indicator light does not come on, replace light and retest system operation. If indicator light comes on, repair or replace wire harness and connectors between indicator light, body ECU No. 1 and combination meter (instrument cluster).
