Front Windows

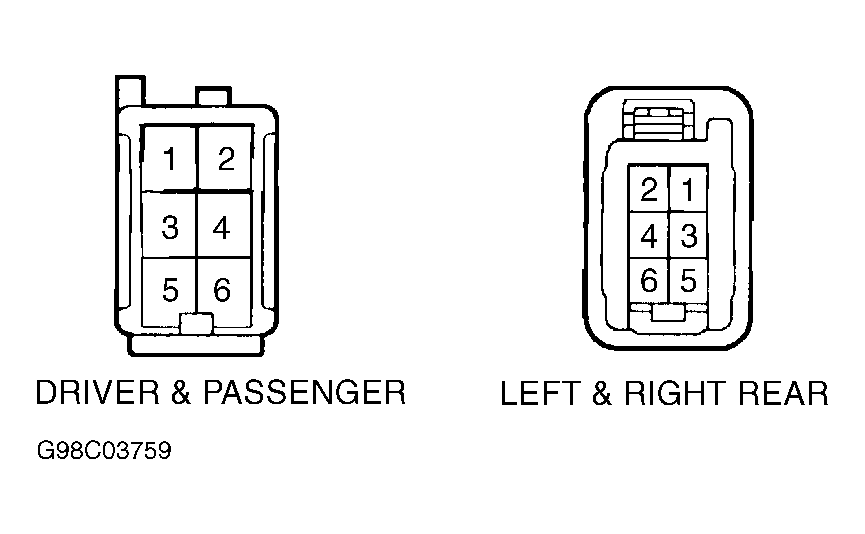

  1. Disconnect window motor connector. Apply battery positive lead to motor connector terminal No. 1 and battery negative lead to motor connector terminal No. 2. See Figure. Window motor should turn clockwise. To reverse motor direction, reverse polarity of voltage to motor. Replace motor if it does not turn counterclockwise.
  2. If battery voltage continues to be applied to motor after window has stopped moving, a circuit breaker in motor should open in 4-90 seconds and motor should stop. After circuit breaker opens, reverse polarity of voltage to motor.
  3. Within 60 seconds, motor should move in opposite direction, indicating circuit breaker has closed. Replace motor as necessary.
