Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

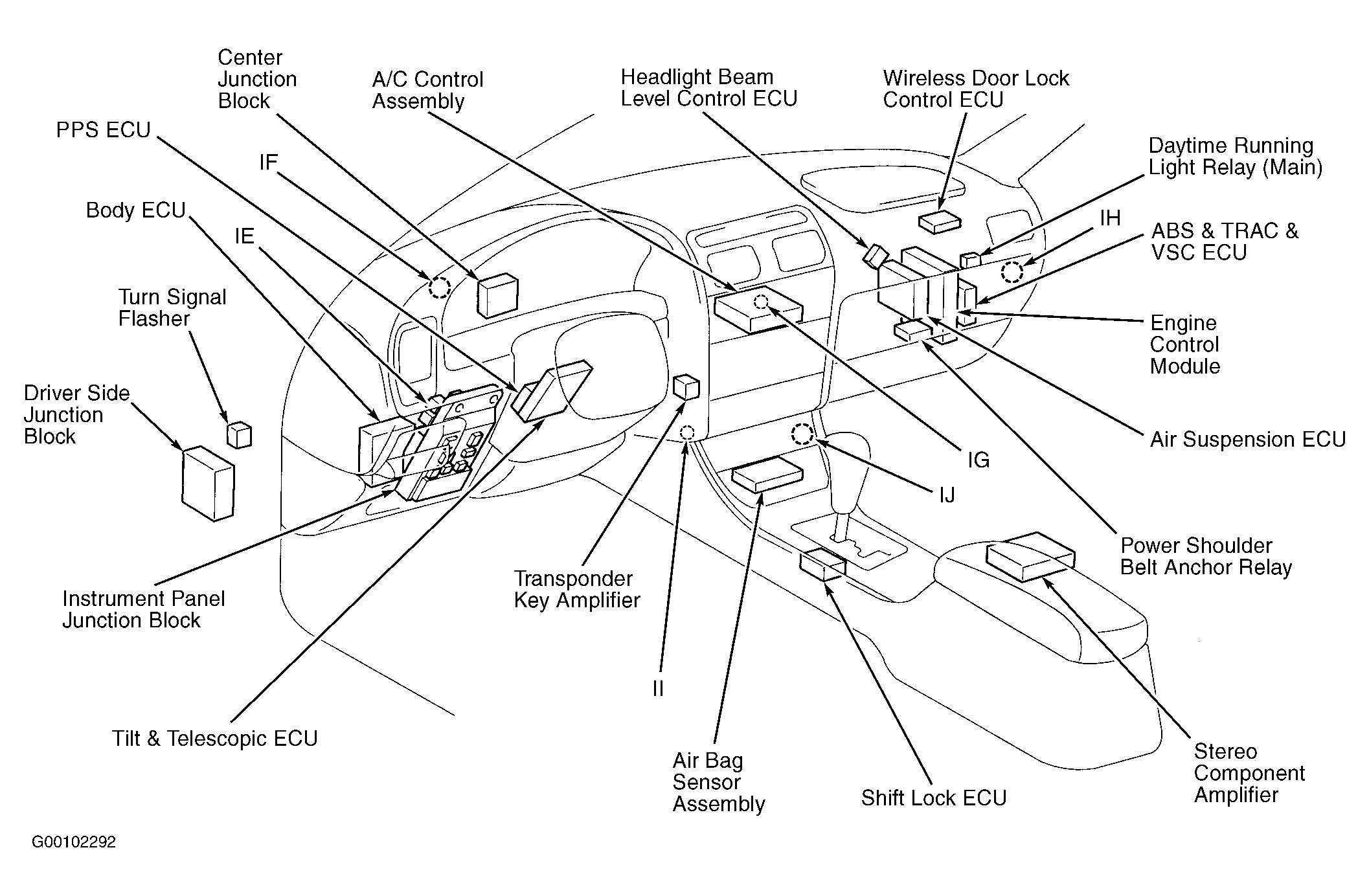

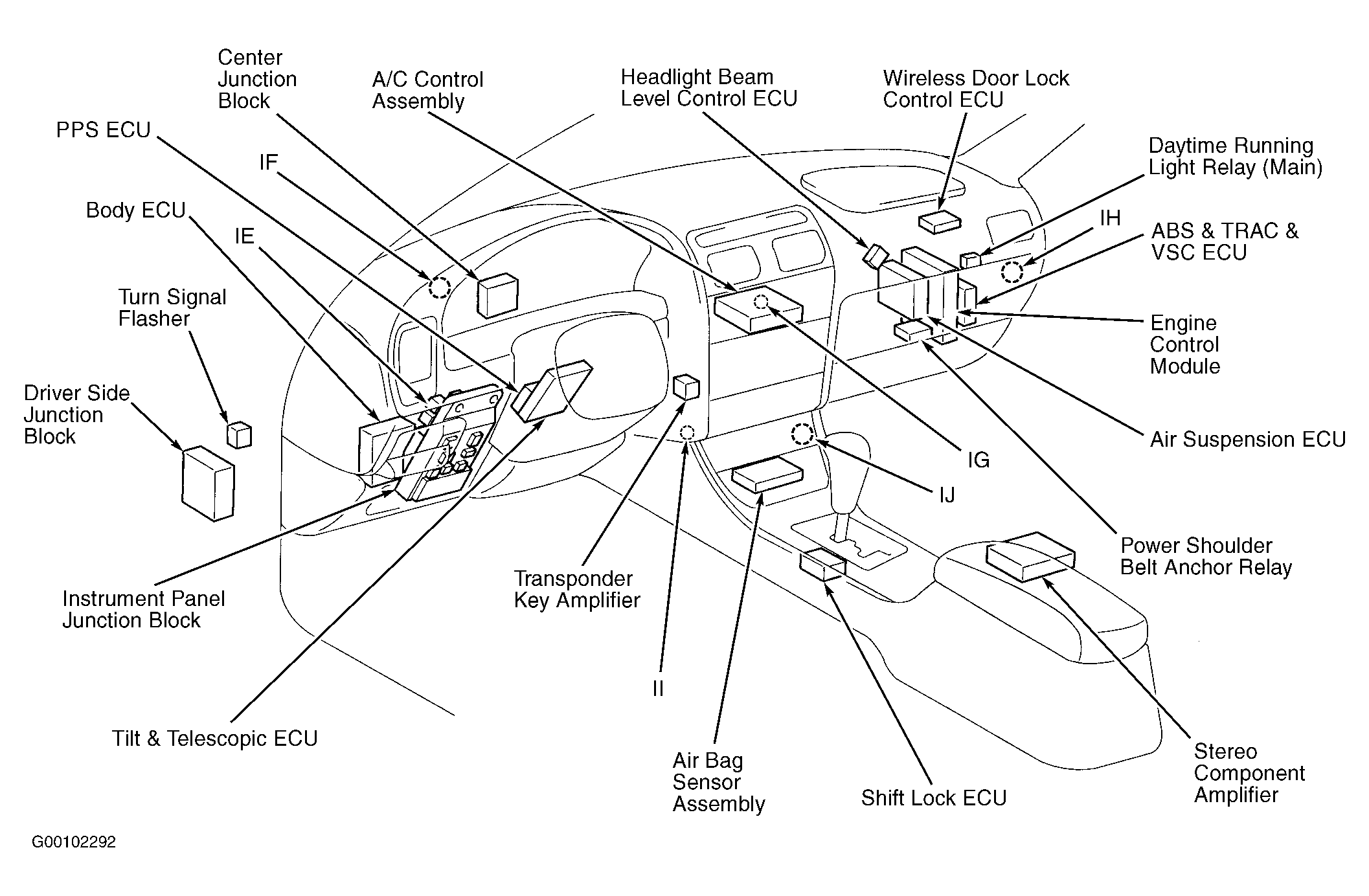

Center Junction Block Behind instrument cluster. See Figure.
Driver Side Junction Block Behind left kick panel. See Figure.

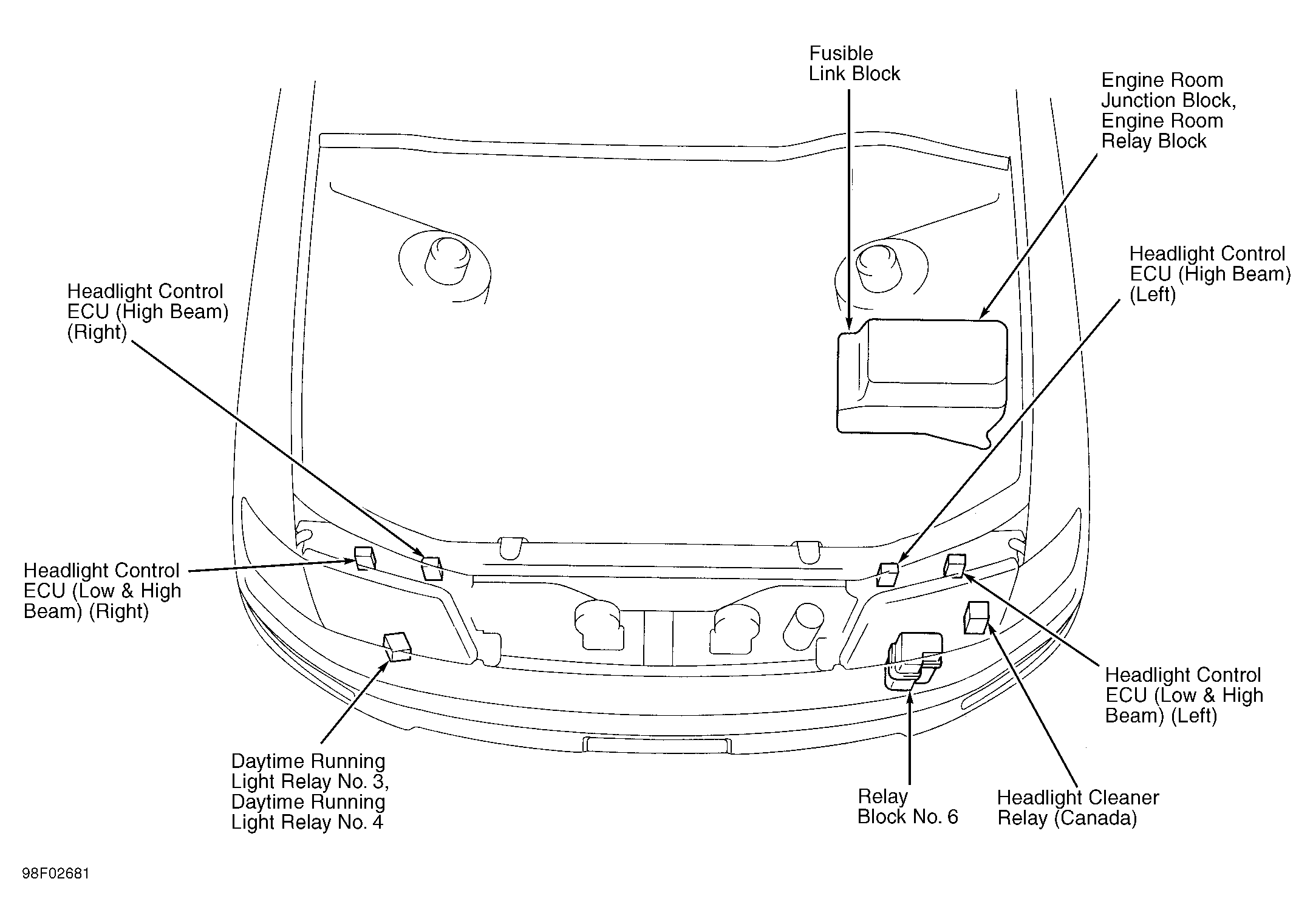

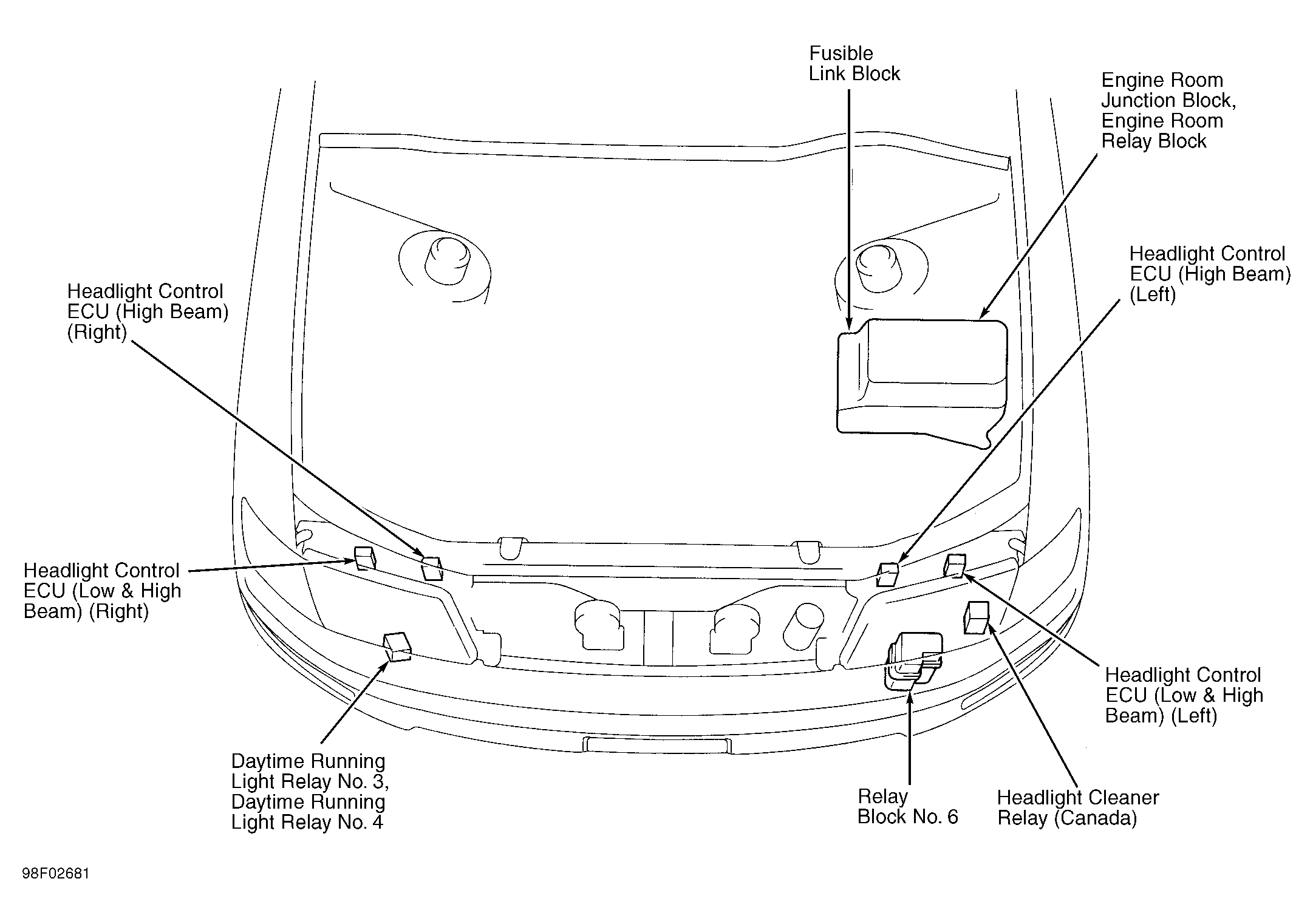

Engine Room Junction Block On left side of engine compartment, forward of strut tower. See Figure.
Engine Room Relay Block On left side of engine compartment, forward of strut tower. See Figure.
Fuse Holder Behind left side of dash.
Fusible Link Block On left side of engine compartment, forward of strut tower. See Figure.
Instrument Panel Junction Block At rear of parking brake release lever. See Figure.
Relay Block No. 6 Under left headlight. See Figure.
