Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

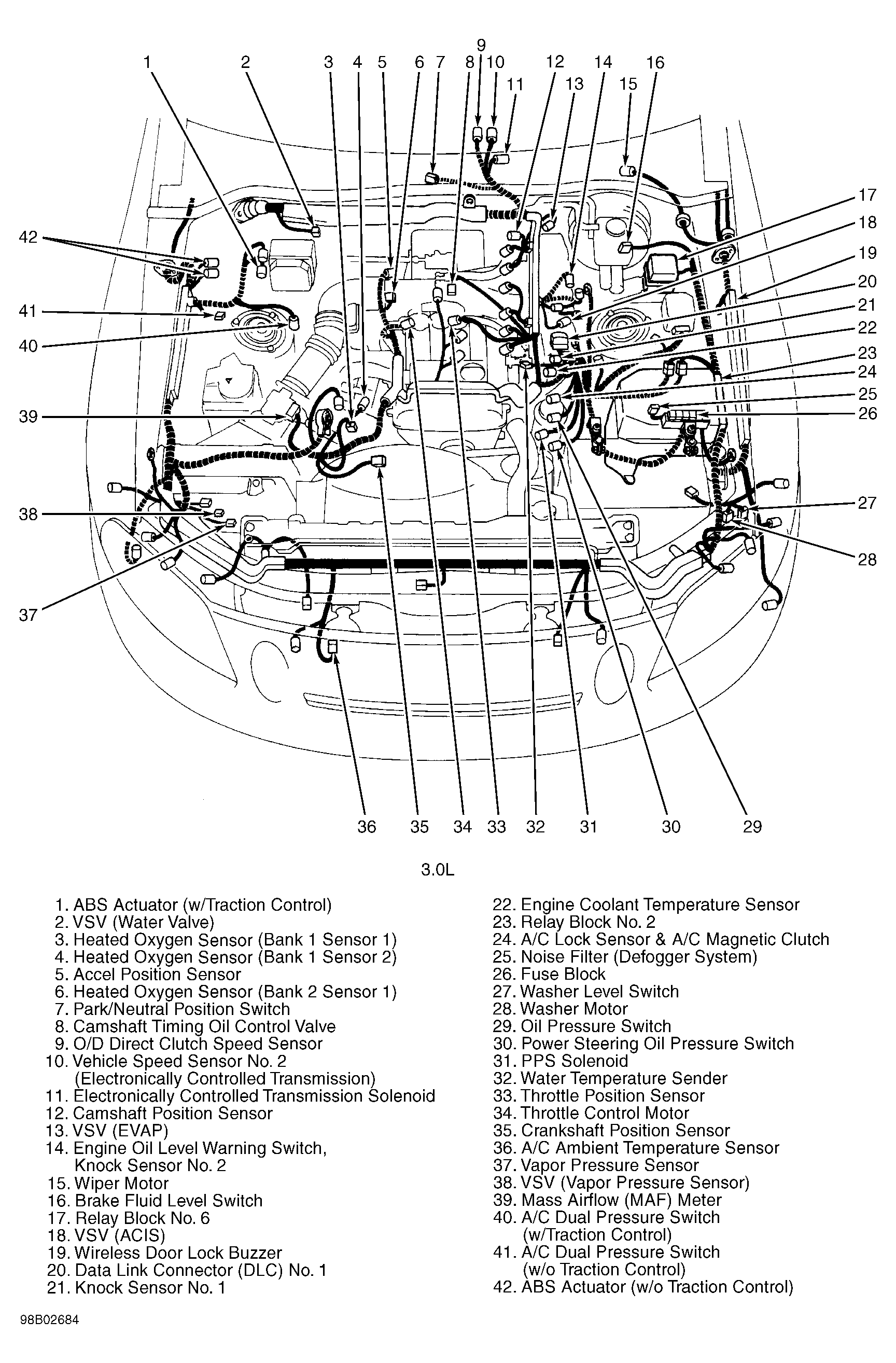

| Fuse Block (3.0L) | At left side of engine compartment, behind battery. See Figure. |

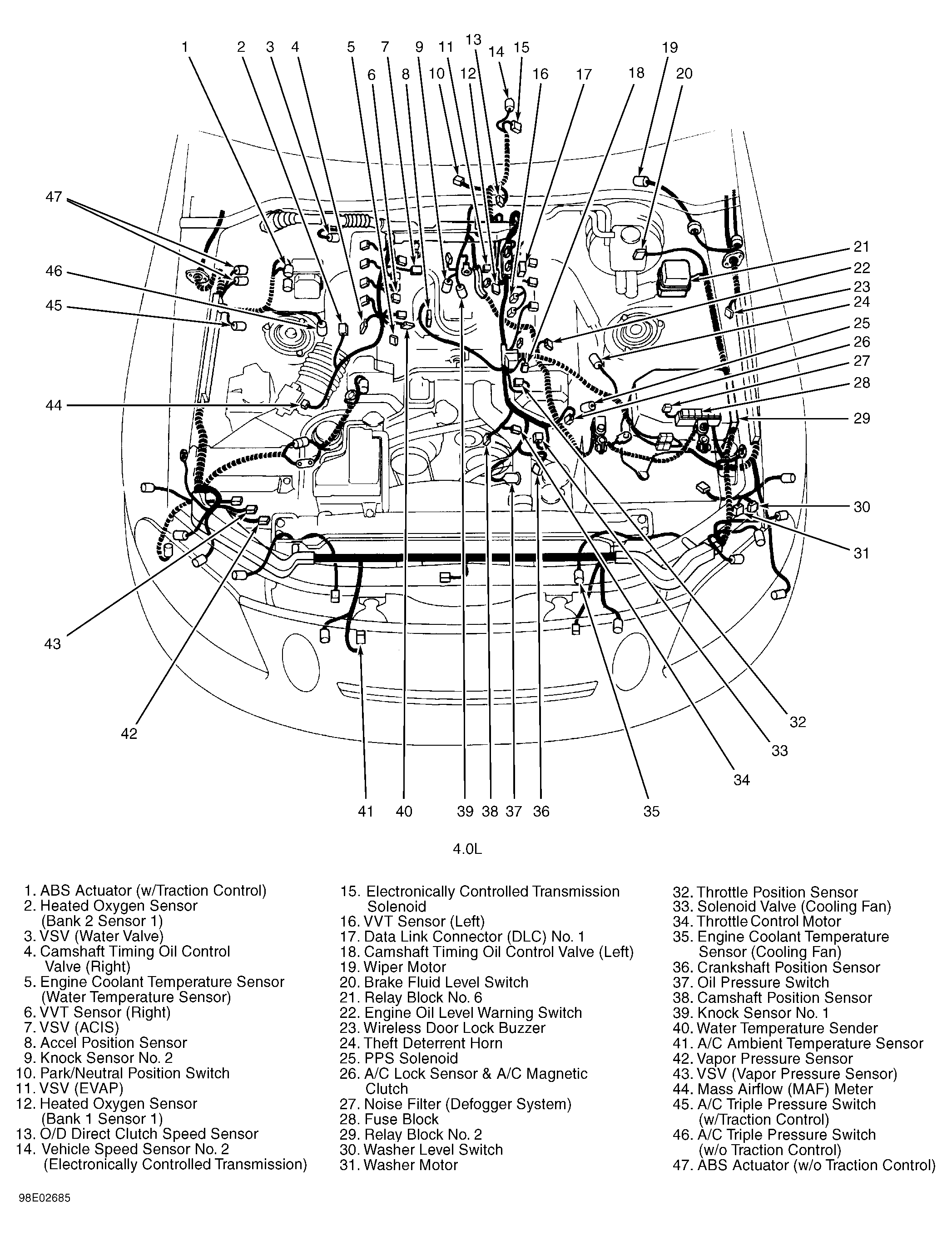

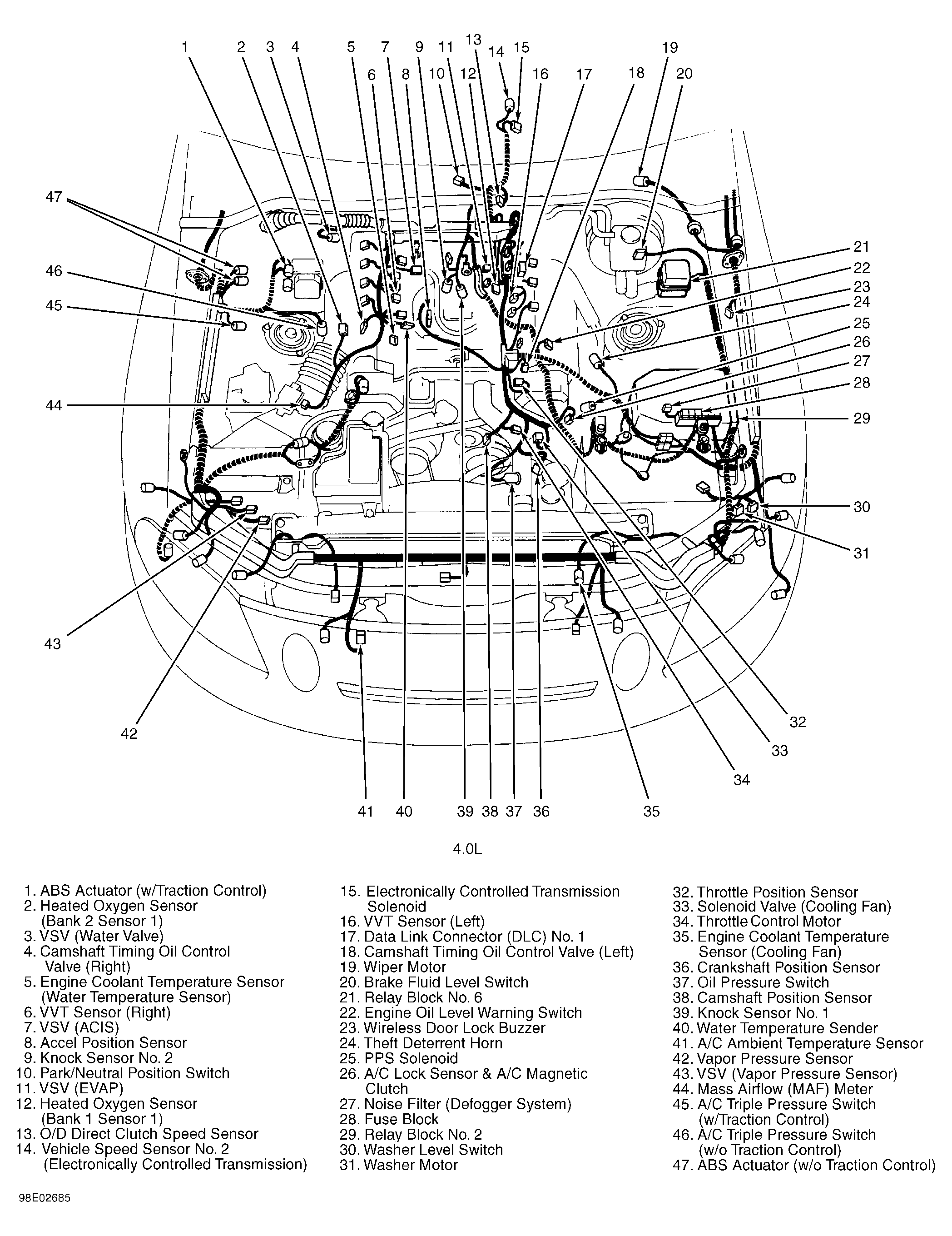

| Fuse Block (4.0L) | At left side of engine compartment, behind battery. See Figure. |

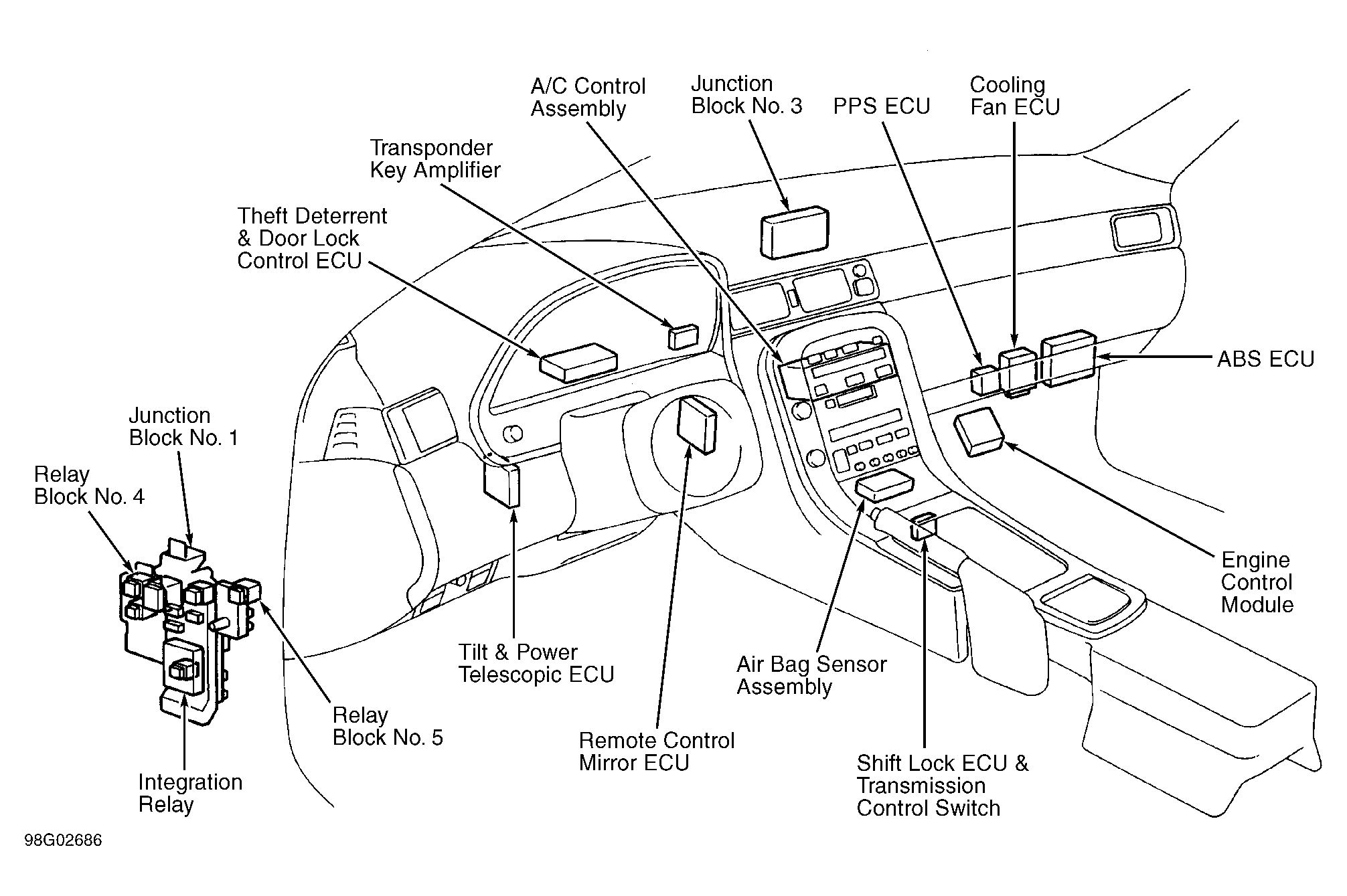

| Junction Block No. 1 | Behind left kick panel. See Figure. |
| Junction Block No. 3 | Behind center of dash. See Figure. |
| Relay Block No. 2 (3.0L) | On left side of engine compartment, behind battery. See Figure. |
| Relay Block No. 2 (4.0L) | On left side of engine compartment, behind battery. See Figure. |
| Relay Block No. 4 | Behind left kick panel, on front side of junction block No. 1. See Figure. |
| Relay Block No. 5 | Behind left kick panel, on rear side of junction block No. 1. See Figure. |
| Relay Block No. 6 (3.0L) | On left side of engine compartment, behind strut tower. See Figure. |
| Relay Block No. 6 (4.0L) | On left side of engine compartment, behind strut tower. See Figure. |
