Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

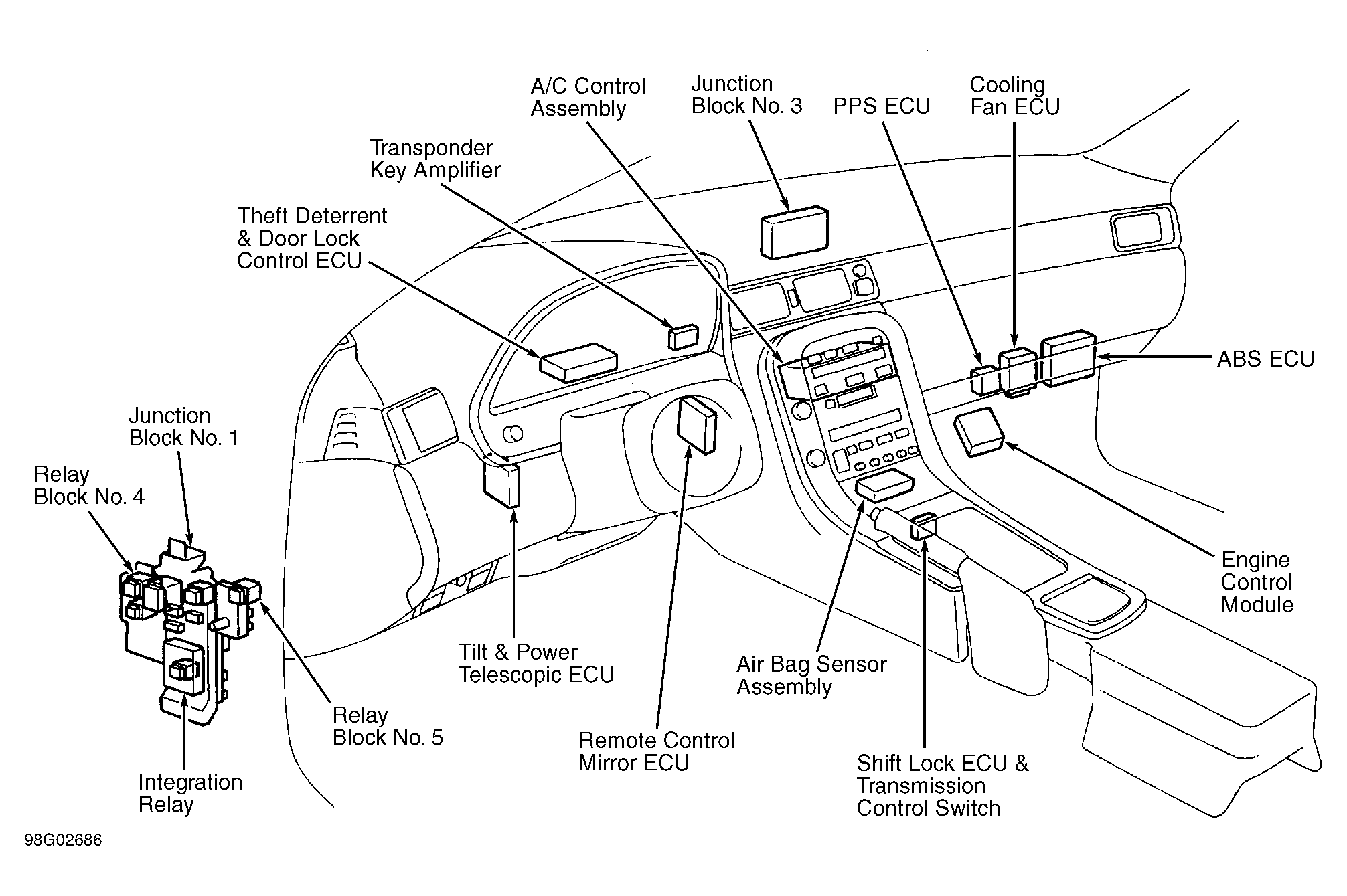

| ABS ECU | Behind right side of dash. See Figure. |

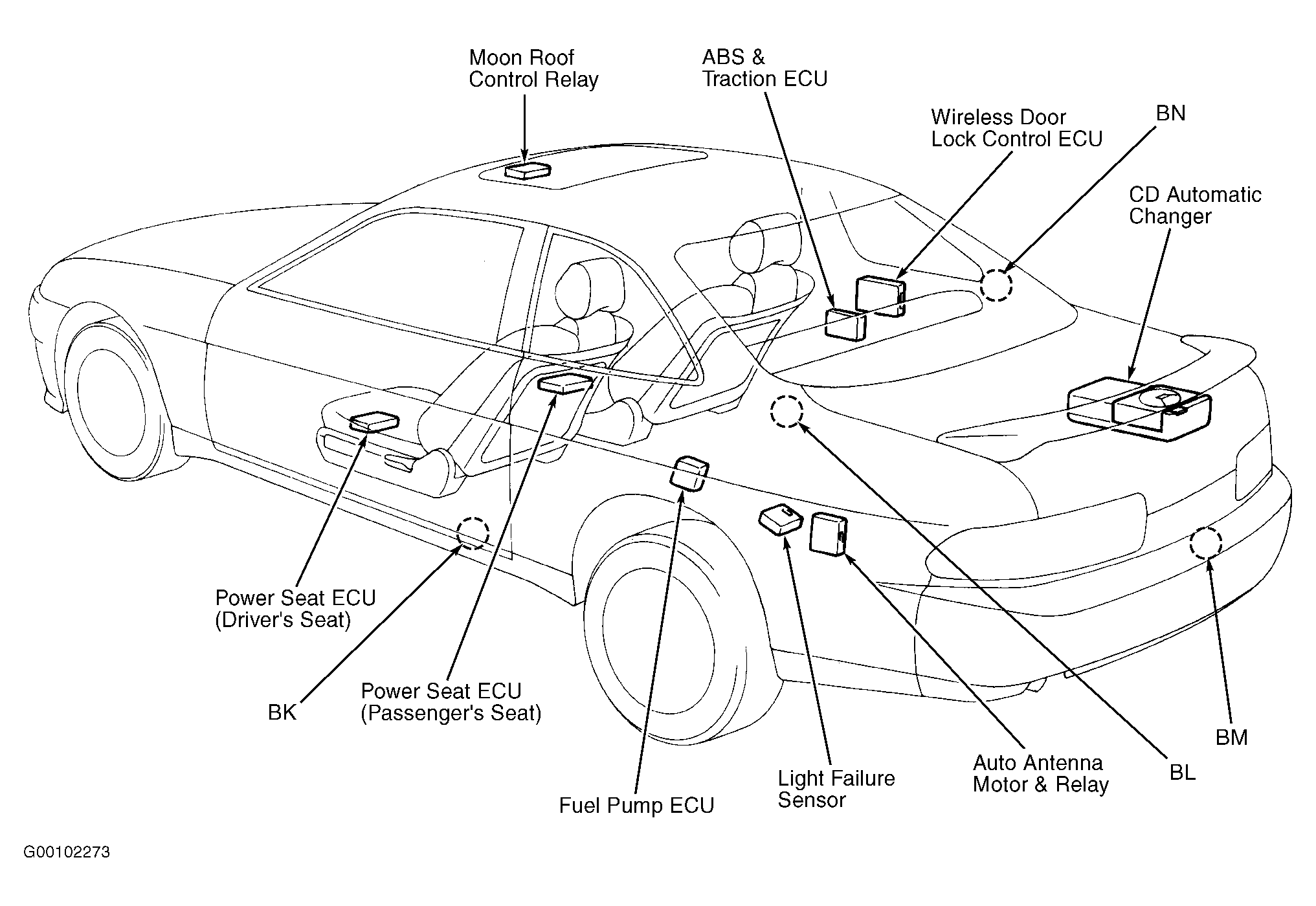

| ABS & Traction ECU | Above base of right "B" pillar. See Figure. |
| A/C Control Assembly | Behind center of dash. See Figure. |
| Air Bag Sensor Assembly | Behind center of dash, forward of center console. See Figure. |
| Cooling Fan ECU | Behind right side of dash. See Figure. |
| Engine Control Module | Behind lower right side of dash. See Figure. |

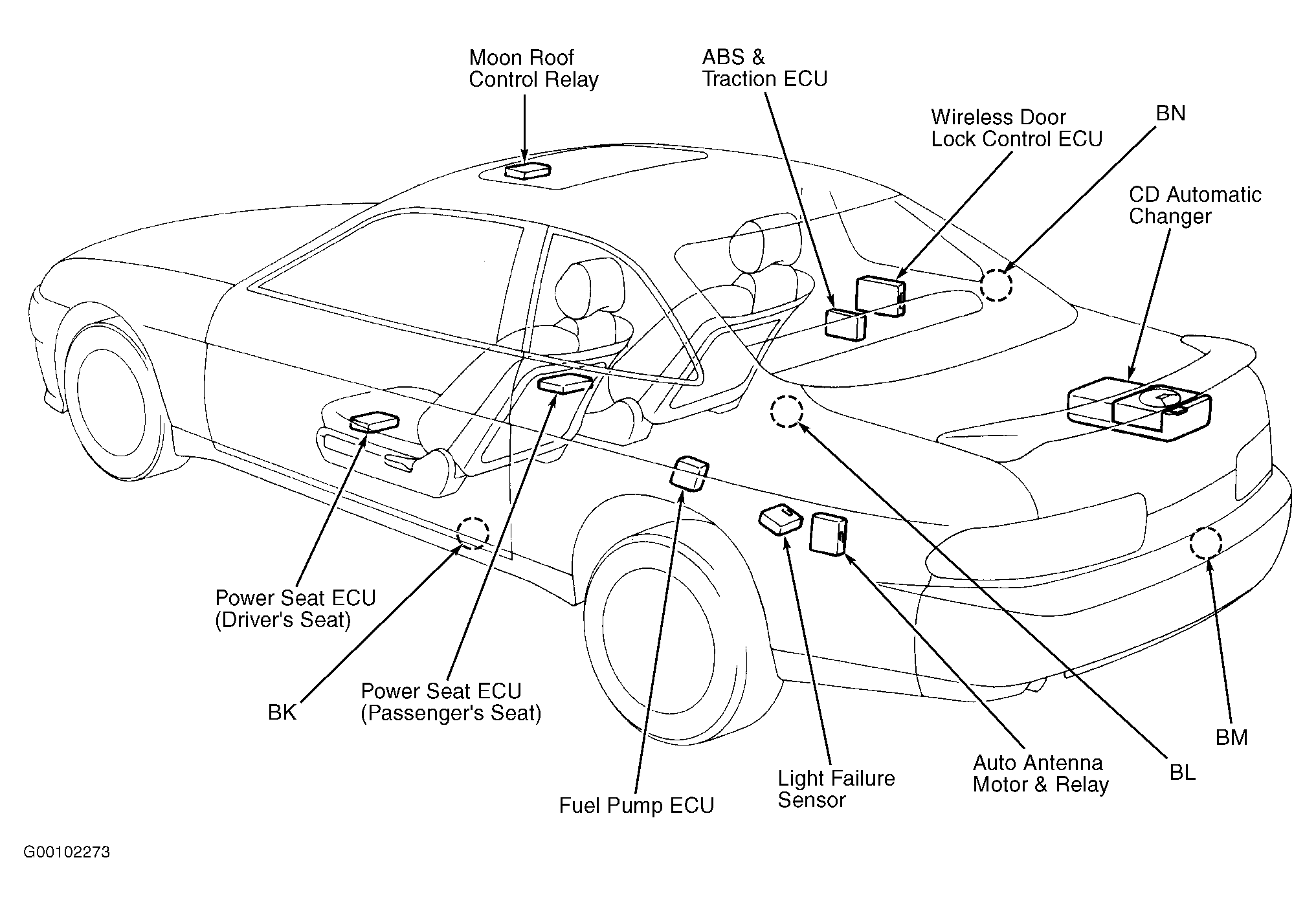

| Fuel Pump ECU | At left side of luggage compartment, above wheelwell. See Figure. |
| Power Seat ECU (Driver's Seat) | Under driver's seat. See Figure. |
| Power Seat ECU (Passenger's Seat) | Under passenger's seat. See Figure. |
| PPS ECU | Behind right side of dash. See Figure. |
| Remote Control Mirror ECU | Behind left center of dash. See Figure. |
| Shift Lock ECU & Transmission Control Switch | Under center console, near selector lever. See Figure. |
| Theft Deterrent & Door Lock Control ECU | Behind instrument cluster. See Figure. |
| Tilt & Power Telescopic ECU | Behind left side of dash. See Figure. |
| Wireless Door Lock Control ECU | Above base of right "B" pillar. See Figure. |
