Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

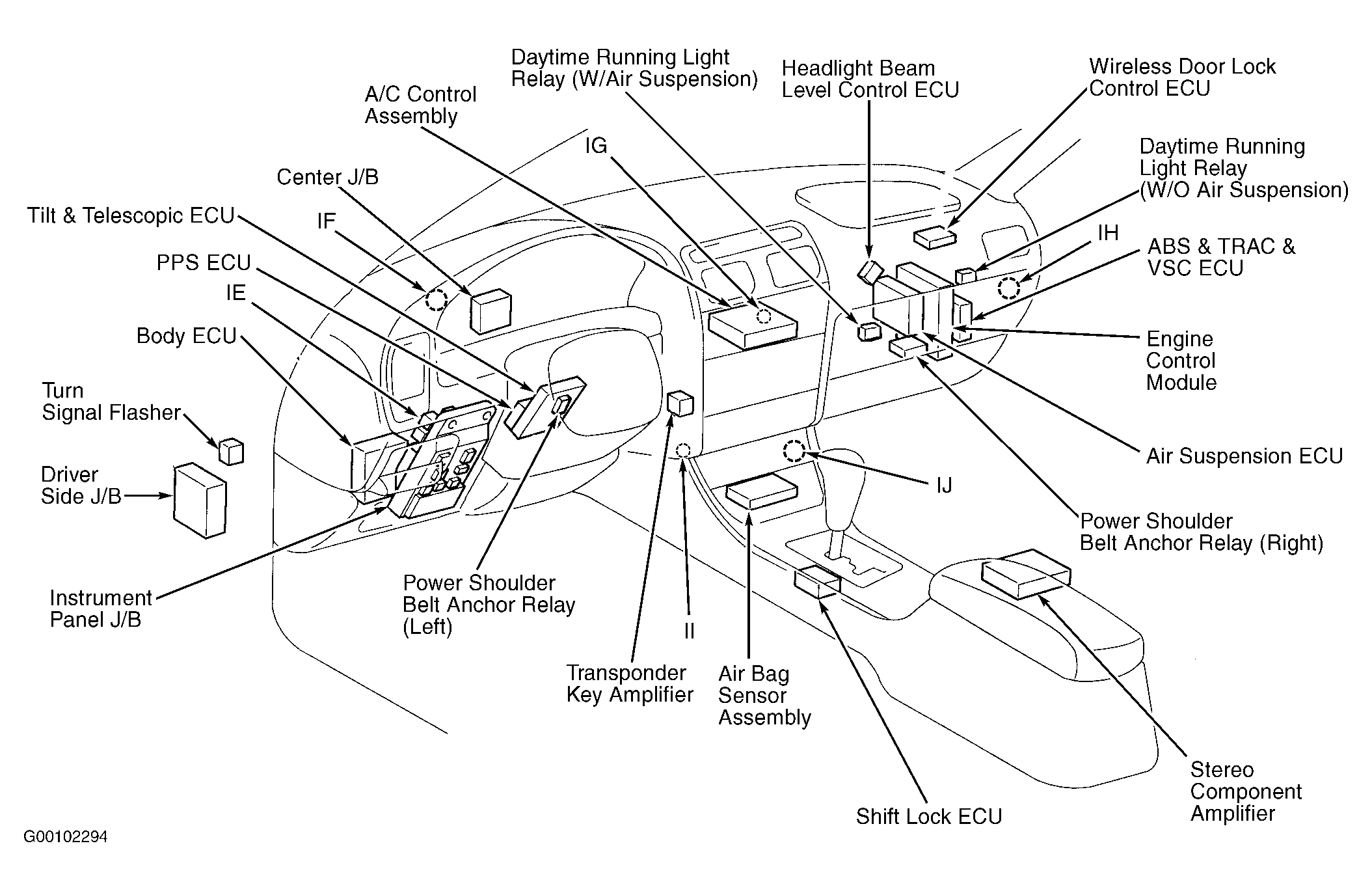

| AB, TRAC & VSC ECU | Behind right side of dash. See Figure. |
| A/C Control Assembly | Behind center of dash. See Figure. |
| Air Bag Sensor Assembly | Behind front of center console. See Figure. |
| Air Suspension ECU | Behind right side of dash. See Figure. |
| Blower Controller | Behind right side of dash. |
| Body ECU | Behind left side of dash. See Figure. |

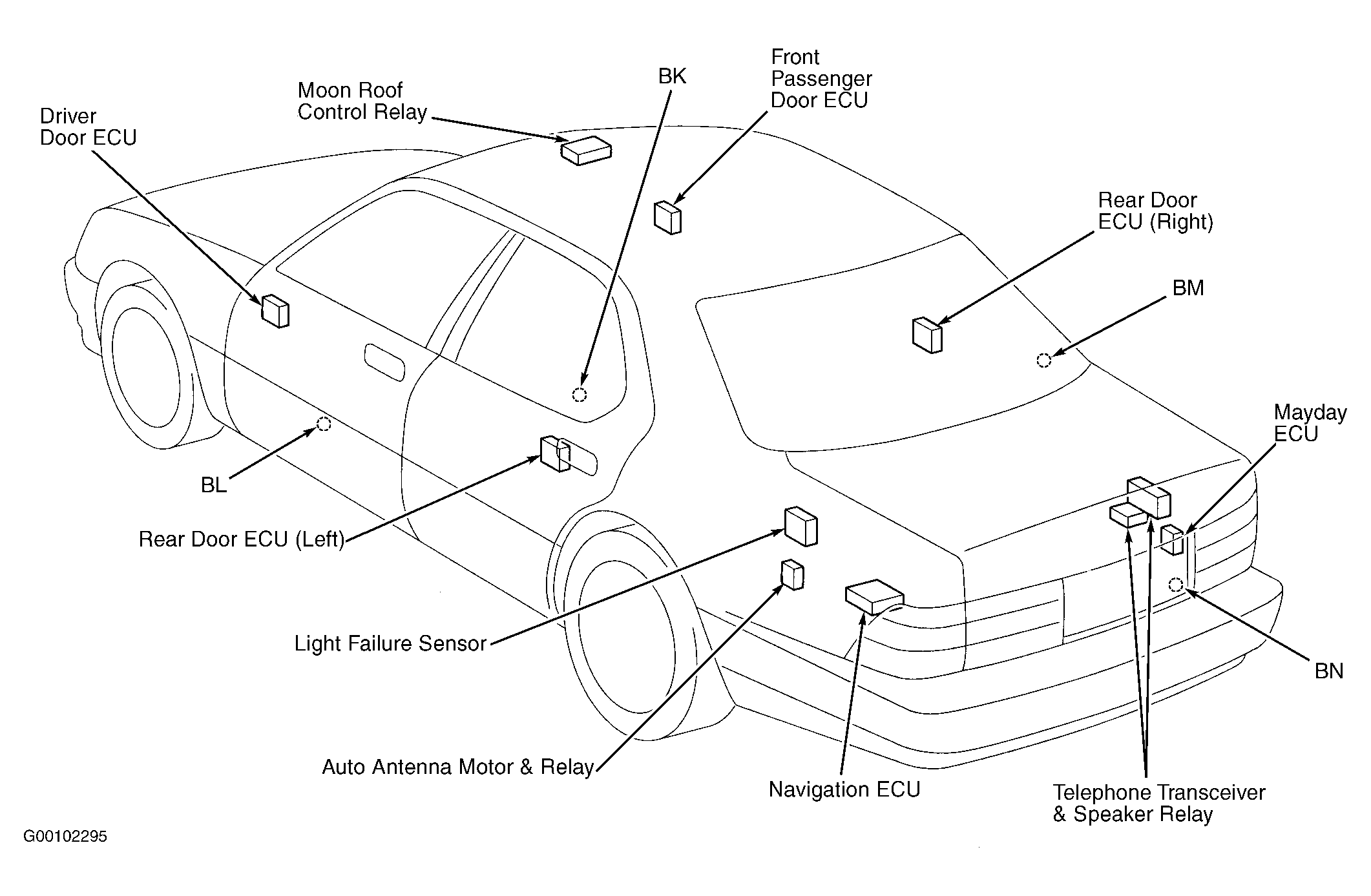

| Driver Door ECU | In driver's door. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Front Passenger Door ECU | In right front door. See Figure. |
| Headlight Beam Level Control ECU | Behind right side of dash. See Figure. |

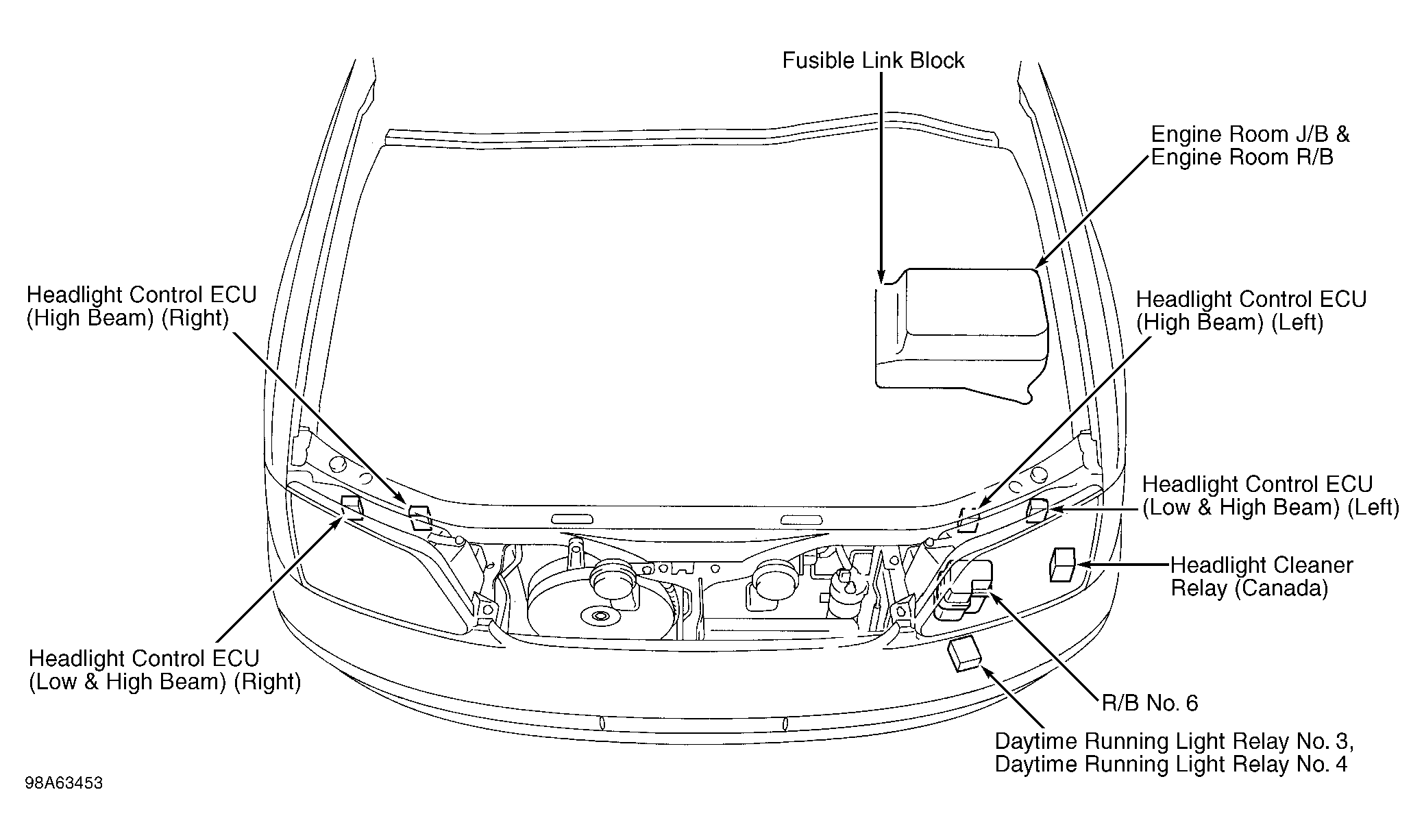

| Headlight Control ECU (High Beam) (Left) | Behind left headlight. See Figure. |
| Headlight Control ECU (High Beam) (Right) | Behind right headlight. See Figure. |
| Headlight Control ECU (Low & High Beam) (Left) | Behind left headlight. See Figure. |
| Headlight Control ECU (Low & High Beam) (Right) | Behind right headlight. See Figure. |
| Mayday ECU | In right side of luggage compartment. See Figure. |
| Navigation ECU | At left rear corner of luggage compartment. See Figure. |
| Power Seat ECU | Under driver's seat. |
| PPS ECU | Behind left side of dash. See Figure. |
| Rear Door ECU (Left) | In left rear door. See Figure. |
| Rear Door ECU (Right) | In right rear door. See Figure. |
| Shift Lock ECU | Under center console, near selector lever. See Figure. |
| Tilt & Telescopic ECU | Behind left side of dash. See Figure. |
| Wireless Door Lock Control ECU | Behind right side of dash. See Figure. |
