Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

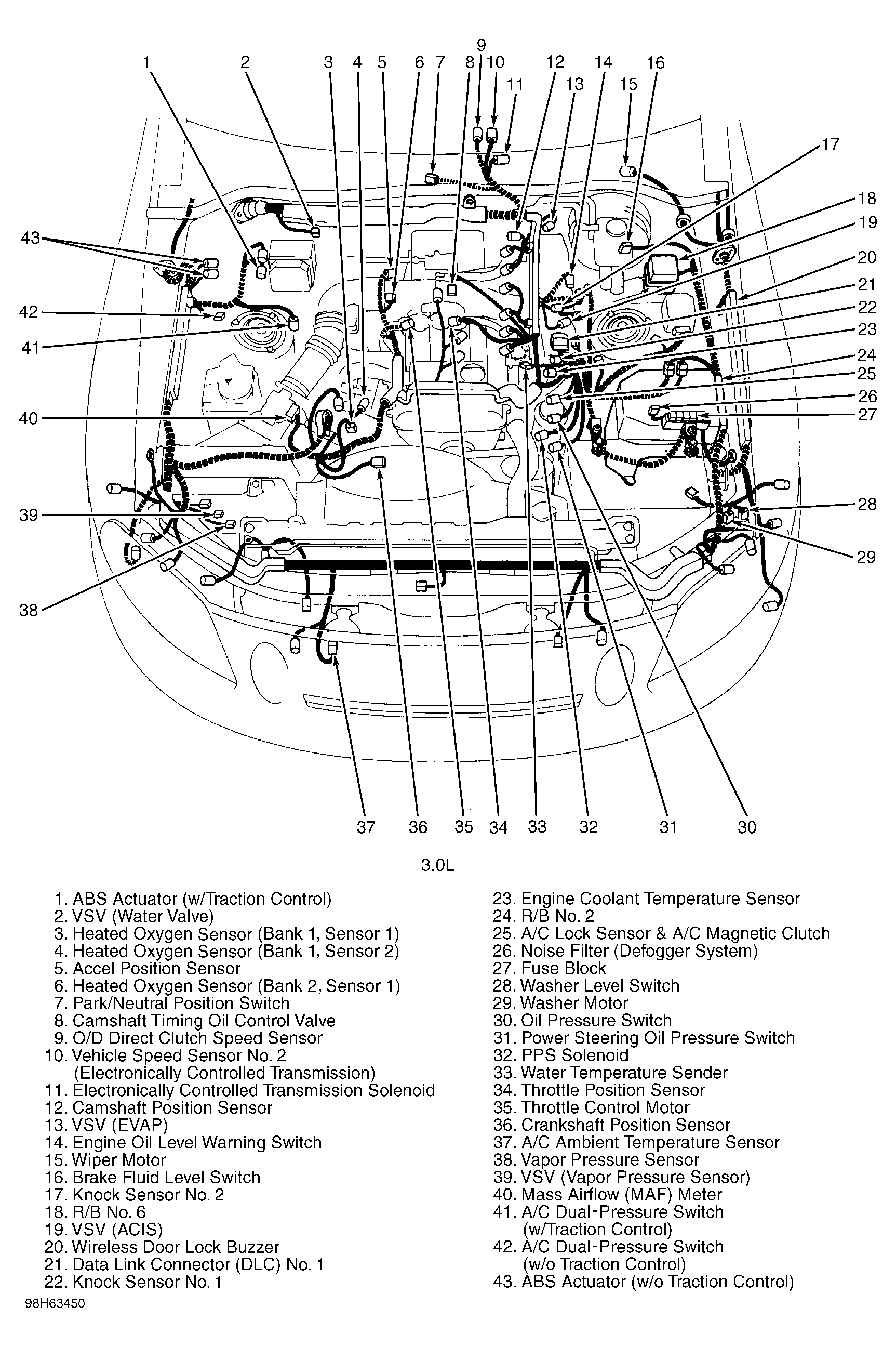

Fuse Block (3.0L) At left side of engine compartment, behind battery. See Figure.

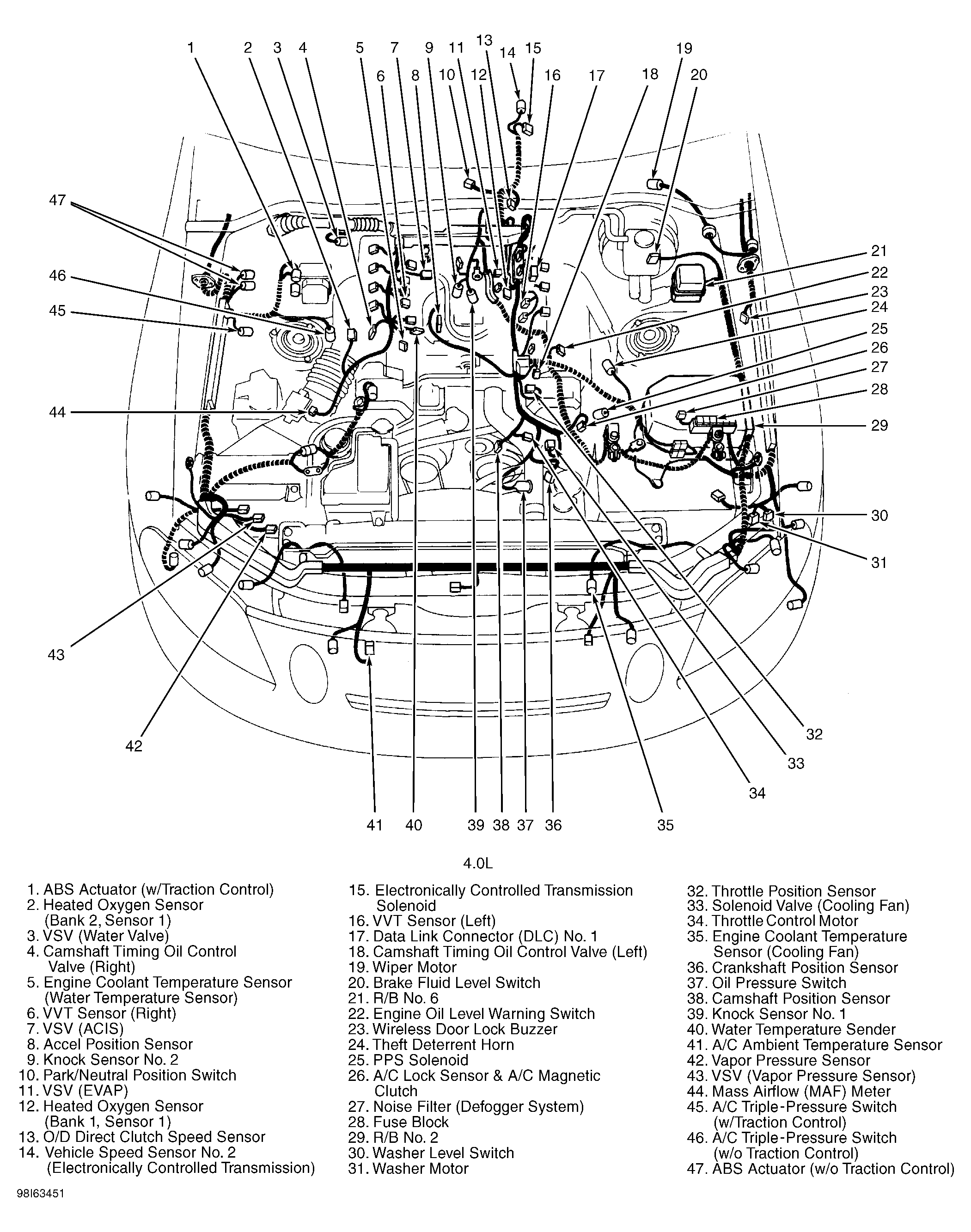

Fuse Block (4.0L) At left side of engine compartment, behind battery. See Figure.

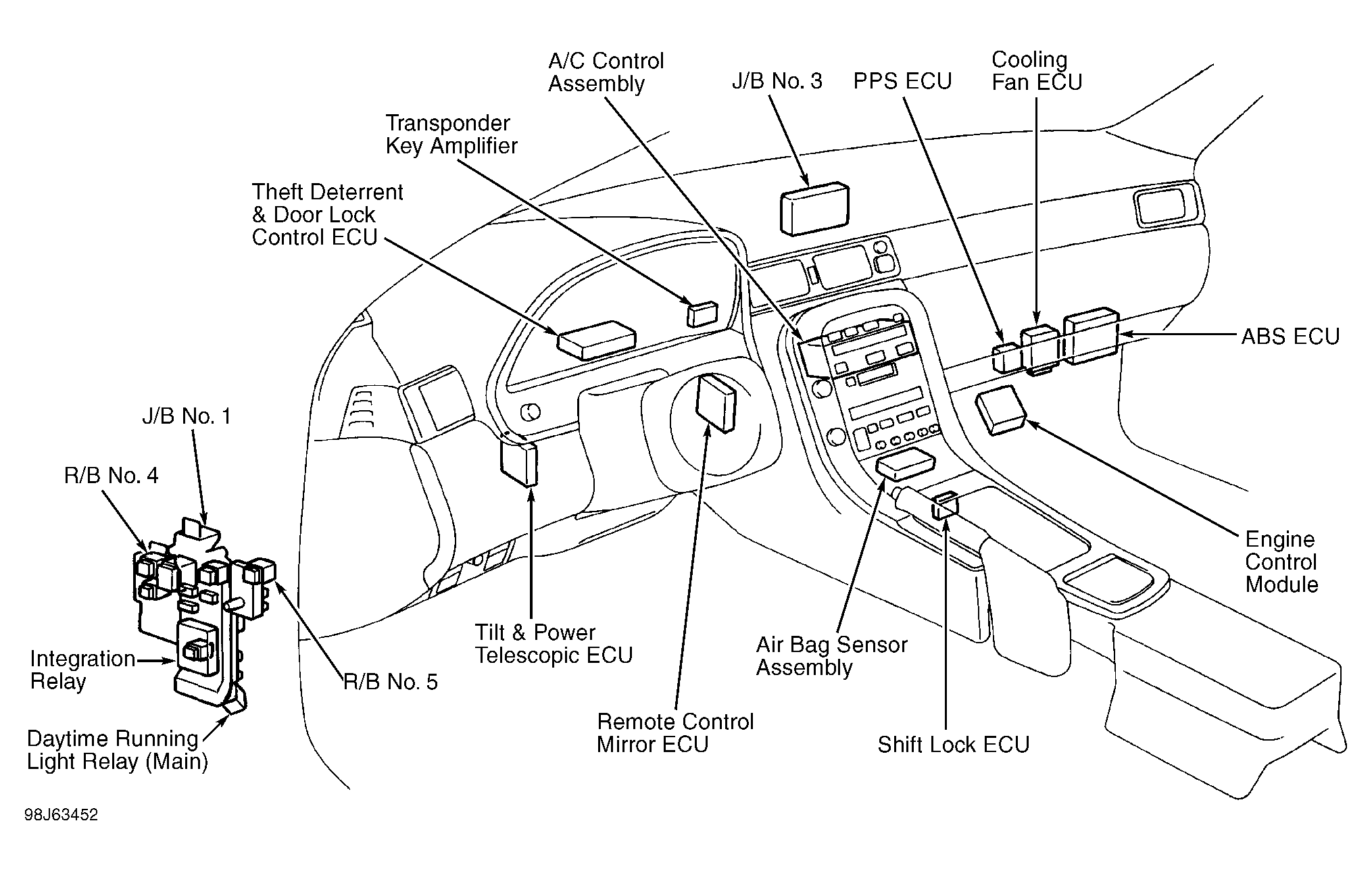

J/B No. 1 Behind left kick panel. See Figure.
J/B No. 3 Behind center of dash. See Figure.
R/B No. 2 (3.0L) On left side of engine compartment, behind battery. See Figure.
R/B No. 2 (4.0L) On left side of engine compartment, behind battery. See Figure.
R/B No. 4 Behind left kick panel, on front side of J/B No. 1. See Figure.
R/B No. 5 Behind left kick panel, on rear side of J/B No. 1. See Figure.
R/B No. 6 (3.0L) On left side of engine compartment, behind strut tower. See Figure.
R/B No. 6 (4.0L) On left side of engine compartment, behind strut tower. See Figure.
