Master Switch

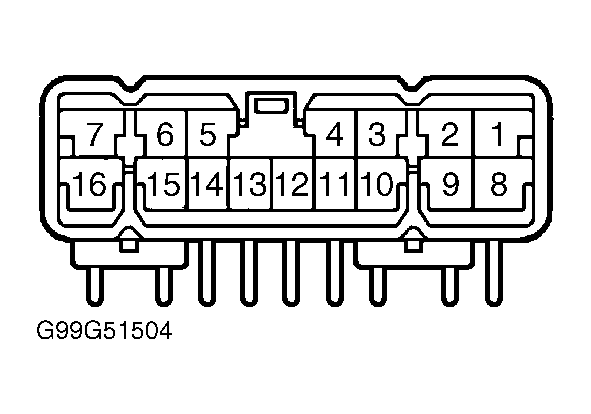

Remove master switch. Using DVOM, check for continuity between terminals of master switch. See Fig 1. Ensure continuity is as specified between appropriate terminals in indicated switch positions. See MASTER SWITCH CONTINUITY SPECIFICATIONS table. If continuity is not as specified, replace master switch.
MASTER SWITCH CONTINUITY SPECIFICATIONS
| Switch & Position (1) | Test Between Terminals No. | Continuity | |||
|---|---|---|---|---|---|
| Driver's Window | |||||
| UP (Auto) | 4, 9 & 11 | Yes | |||
| UP (Manual) | 4 & 9 | Yes | |||
| OFF (Neutral) | Any | No | |||
| DOWN (Manual) | 2 & 4 | Yes | |||
| DOWN (Auto) | 2, 4 & 11 | Yes | |||
| Right Front Window | |||||
| UP (Auto) | 4, 13 & 15 | Yes | |||
| UP (Manual) | 4 & 13 | Yes | |||
| OFF (Neutral) | Any | No | |||
| DOWN (Manual) | 4 & 5 | Yes | |||
| DOWN (Auto) | 4, 5 & 15 | Yes | |||
| Left Rear Window | |||||
| UP | 8 & 12; 7 & 10 | Yes | |||
| OFF (Neutral) | 7, 8 & 10 | Yes | |||
| DOWN | 10 & 12; 7 & 8 | Yes | |||
| Right Rear Window | |||||
| UP | 12 & 14; 7 & 16 | Yes | |||
| OFF (Neutral) | 7, 14 & 16 | Yes | |||
| DOWN | 12 & 16; 7 & 14 | Yes | |||
|
|||||
