Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS, TRAC & VSC ECU | Behind left side of dash. See Figure. |
| A/C Control Assembly | Behind center of dash. See Figure. |
| Blower Motor Controller | Behind right side of dash. |
| Body ECU No. 1 | In passenger side J/B. See Figure. |
| Body ECU No. 2 | In driver side J/B. See Figure. |
| Center Air Bag Sensor Assembly | Behind center of dash, forward of center console. See Figure. |

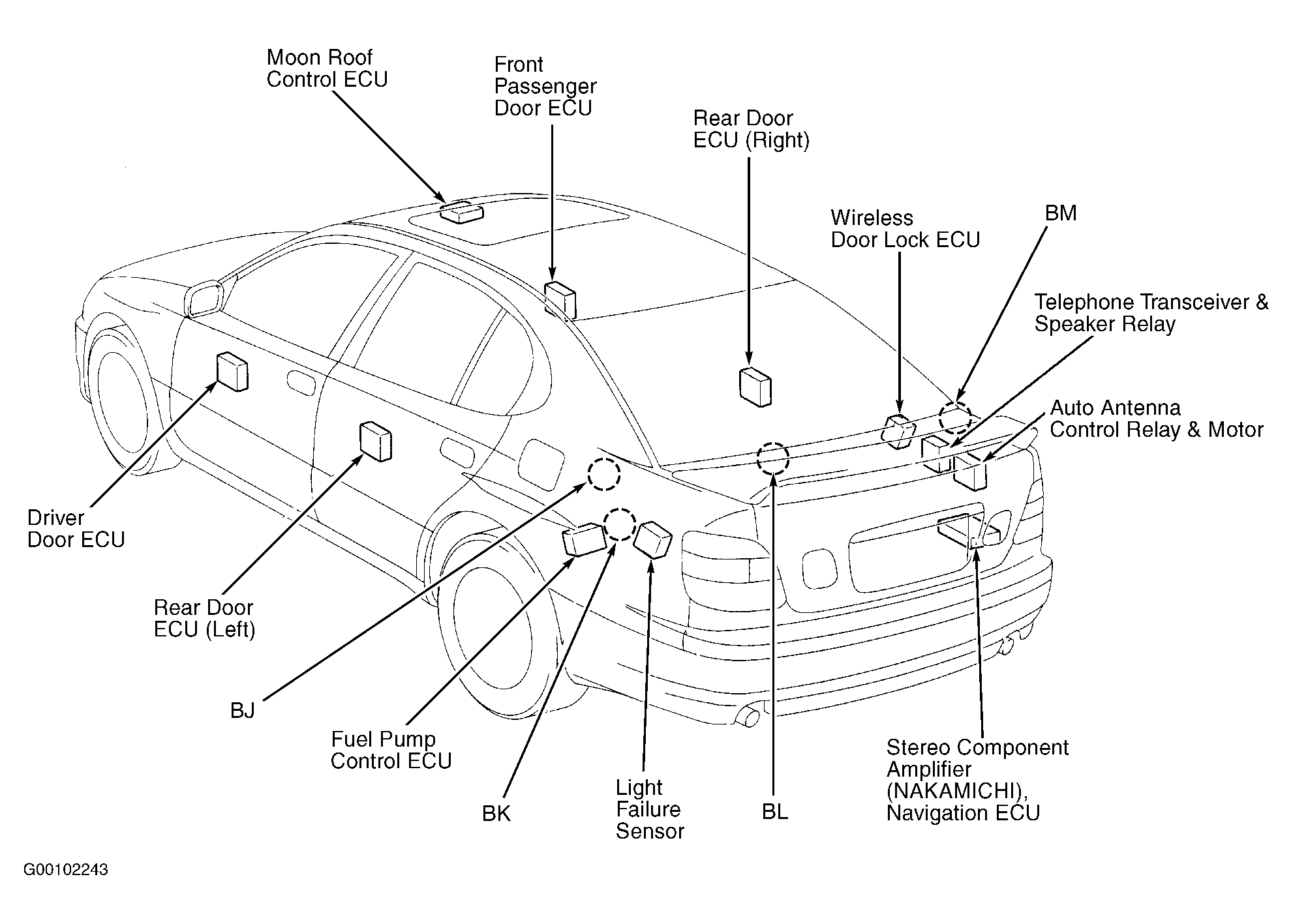

| Driver Door ECU | In driver's door. See Figure. |
| Engine Control Module | At left side of engine compartment, in ECU box. See Figure. |
| Front Passenger Door ECU | In right front door. See Figure. |
| Fuel Pump Control ECU | At left side of luggage compartment. See Figure. |
| Headlight Beam Level Control ECU | At left front corner of engine compartment. See Figure. |
| Headlight Control ECU (Left) | Behind left headlight. See Figure. |
| Headlight Control ECU (Right) | Behind right headlight. See Figure. |
| Moon Roof Control ECU | In front of moon roof opening. See Figure. |
| Navigation ECU | At right rear corner of luggage compartment. See Figure. |
| Power Seat ECU | Under driver's seat. |
| PPS ECU | Behind left side of dash. See Figure. |
| Rear Door ECU (Left) | In left rear door. See Figure. |
| Rear Door ECU (Right) | In right rear door. See Figure. |
| Shift Lock Control ECU | Under center console, near selector lever. See Figure. |
| Tilt & Telescopic ECU | Behind left side of dash. See Figure. |
| Wireless Door Lock ECU | At right side of luggage compartment. See Figure. |
