Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

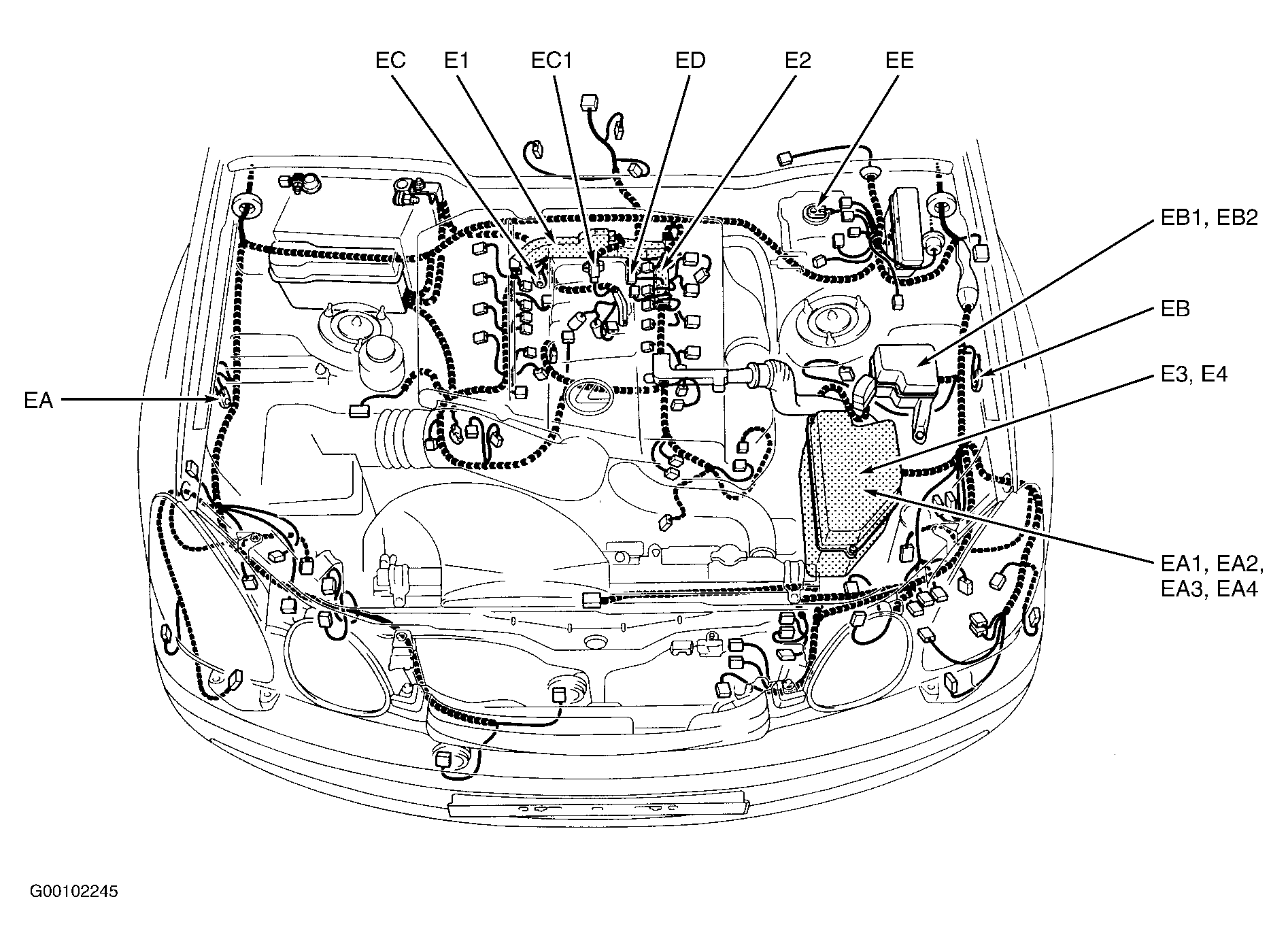

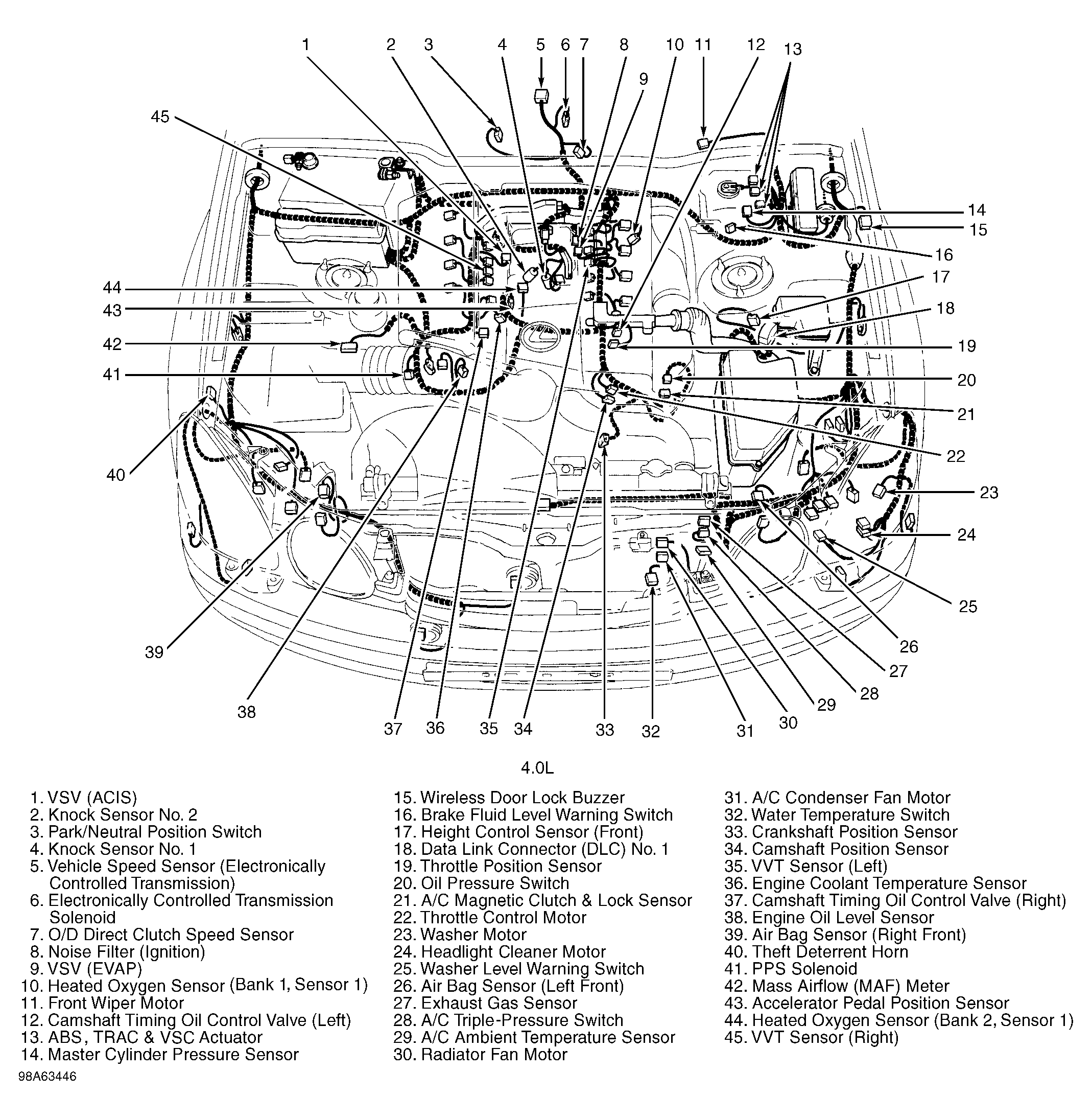

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

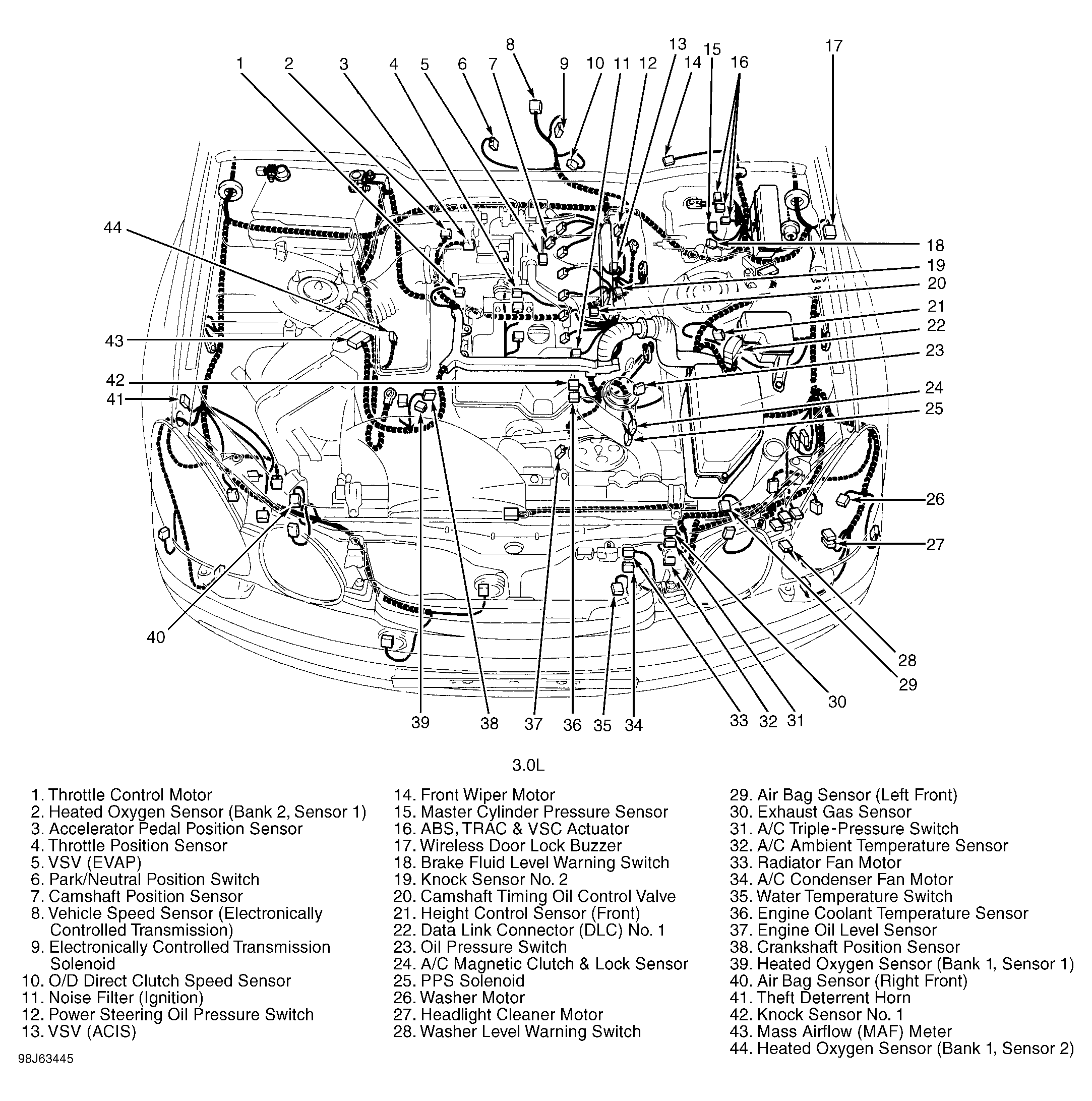

Fig 2: Engine Compartment (3.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

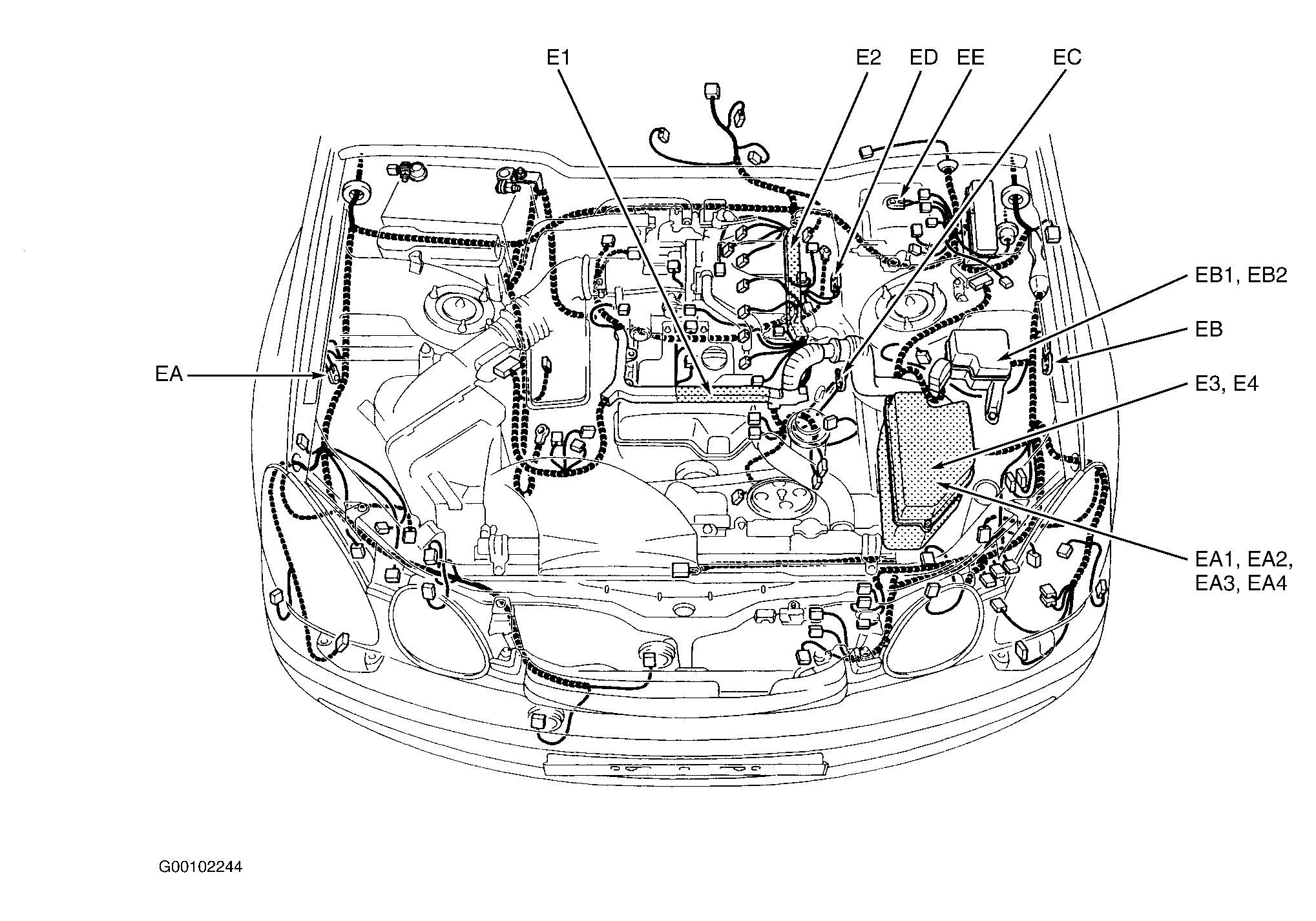

Fig 3: Engine Compartment (4.3L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Left Side Of Vehicle

Fig 6: Engine Compartment (3.0L)

Fig 7: Engine Compartment (4.3L)
