Power Mirror Motor: Notes

Disconnect power mirror motor harness connector. Apply battery voltage and ground between specified terminals of power mirror motor harness connector (reverse polarity to move/operate motor in opposite direction). See appropriate POWER MIRROR MOTOR TEST table. See Fig 1-Fig 8 . If motor does not operate as specified, replace power mirror motor.

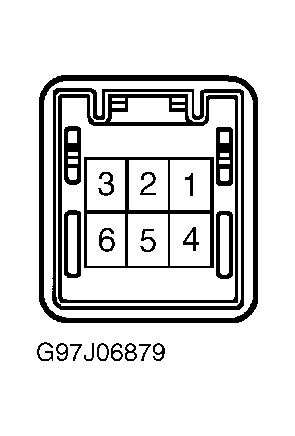

Fig 1: Power Mirror Motor Connector Terminals (ES300)

G97J06879

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

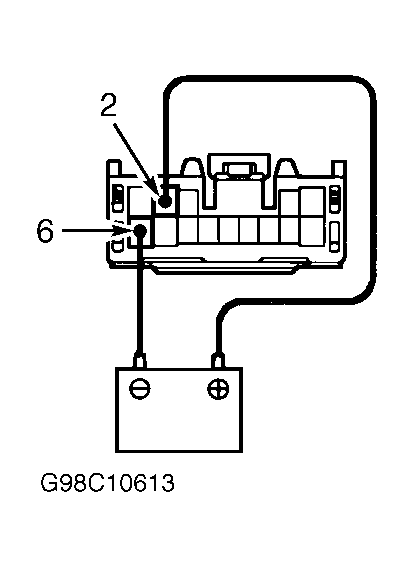

Fig 2: Power Mirror Motor Connector Terminals (GS300 & GS400 With Memory)

G98C10613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

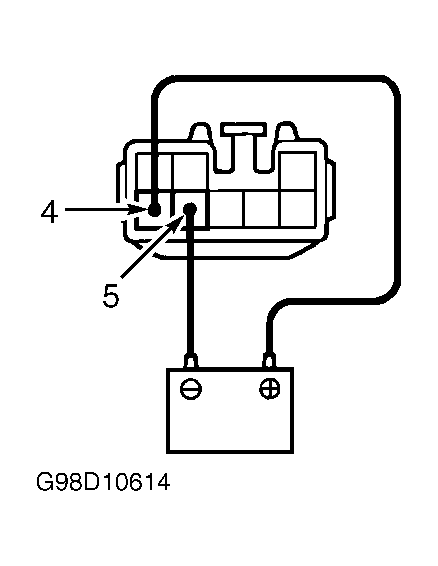

Fig 3: Power Mirror Motor Connector Terminals (GS300 & GS400 Without Memory & RX300)

G98D10614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

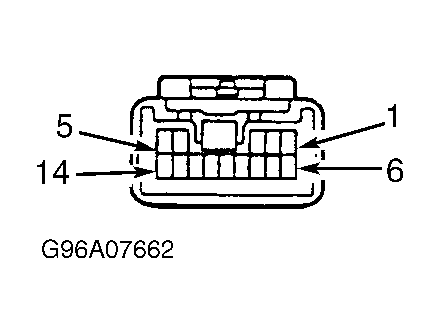

Fig 4: Power Mirror Motor Connector Terminals (LS400 With Memory)

G96A07662

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

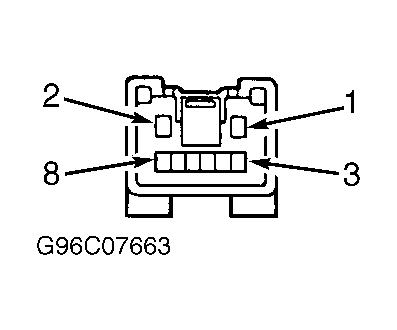

Fig 5: Power Mirror Motor Connector Terminals (LS400 Without Memory)

G96C07663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

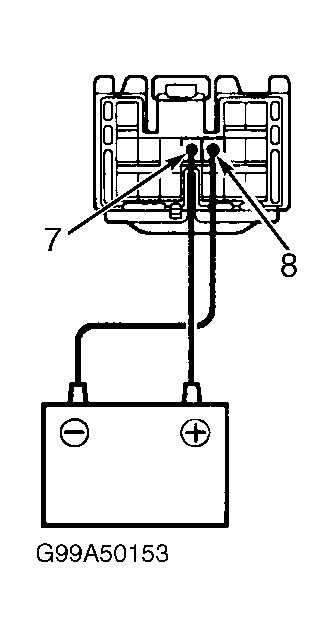

Fig 6: Power Mirror Motor Connector Terminals (LX470)

G99A50153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

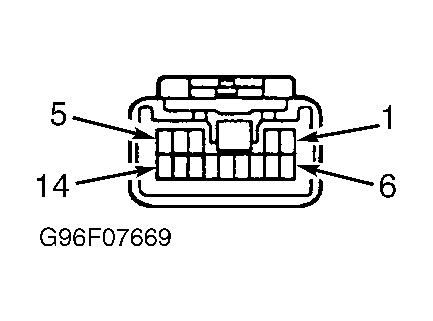

Fig 7: Power Mirror Motor Connector Terminals (SC300 & SC400 With Memory)

G96F07669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

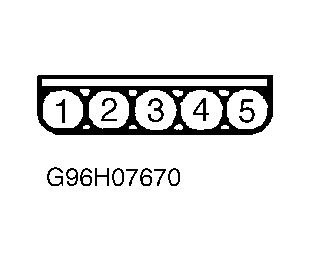

Fig 8: Power Mirror Motor Connector Terminals (SC300 & SC400 Without Memory)

G96H07670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
