Electrical Component Locator: Grounds
GROUNDS
| Component | Component Location |
|---|---|

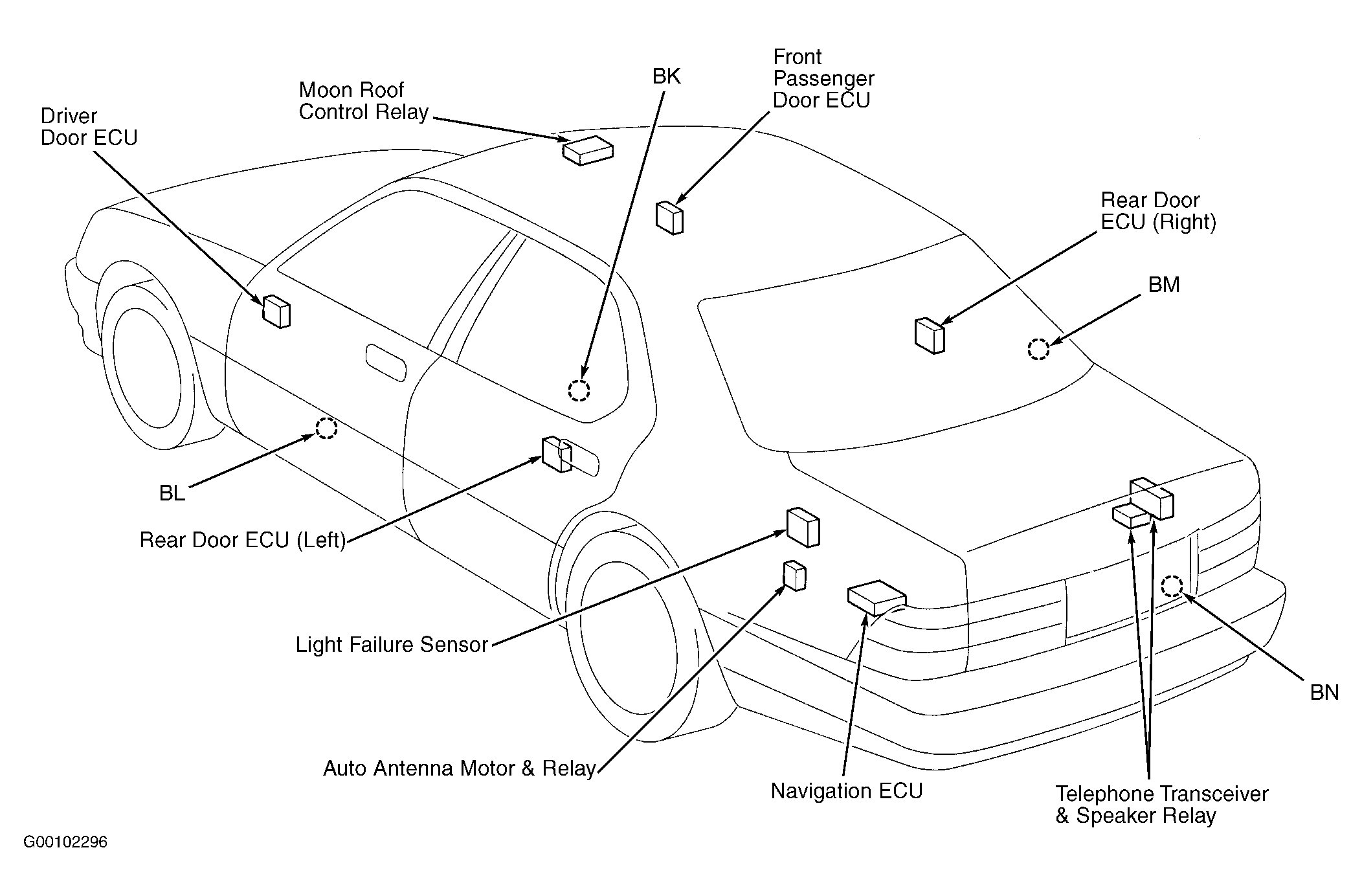

| BK | Under right front seat. See Figure. |
| BL | Under driver's seat. See Figure. |
| BM | At bottom of right rear pillar. See Figure. |
| BN | At right rear of trunk. See Figure. |
| EA | At front of right fender. See Figure. |
| EB | At front of left fender. See Figure. |
| EC | Rear of right cylinder head. See Figure. |
| ED | Rear of left cylinder head. See Figure. |

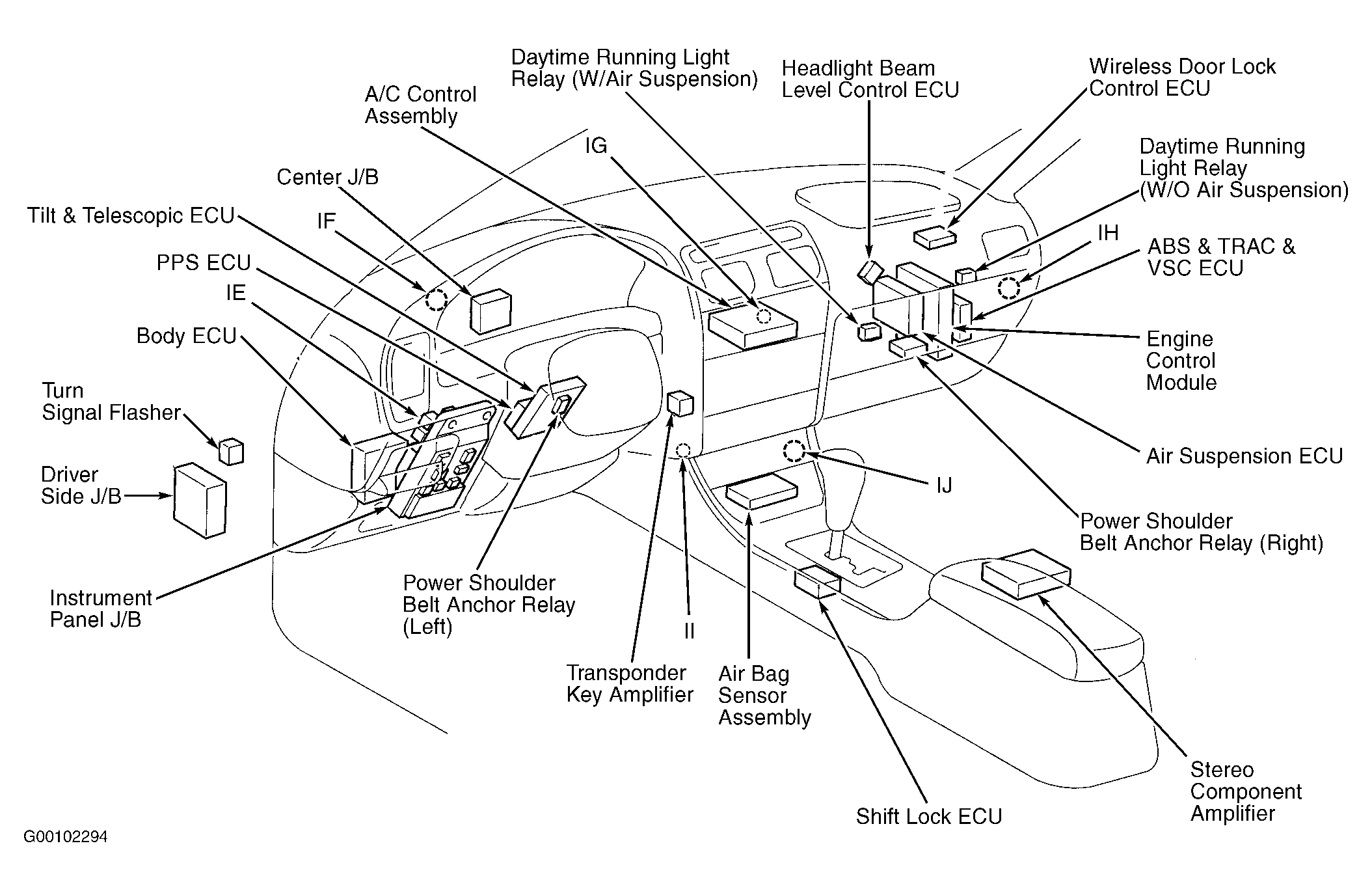

| IE | Behind dash, on left side of J/B. See Figure. |
| IF | Behind instrument cluster. See Figure. |
| IG | At right dash brace. See Figure. |
| IH | At right side of dash. See Figure. |
| II | At left dash brace. See Figure. |
| IJ | At right dash brace. See Figure. |
