Abs Ecu

The following pin voltage charts are supplied to determine whether ABS ECU is receiving and transmitting proper voltage signals. Charts may also help determine if ECU harness is shorted or open. See Fig 1 and Fig 2 . ABS ECU is located behind left side of dash, near junction block.

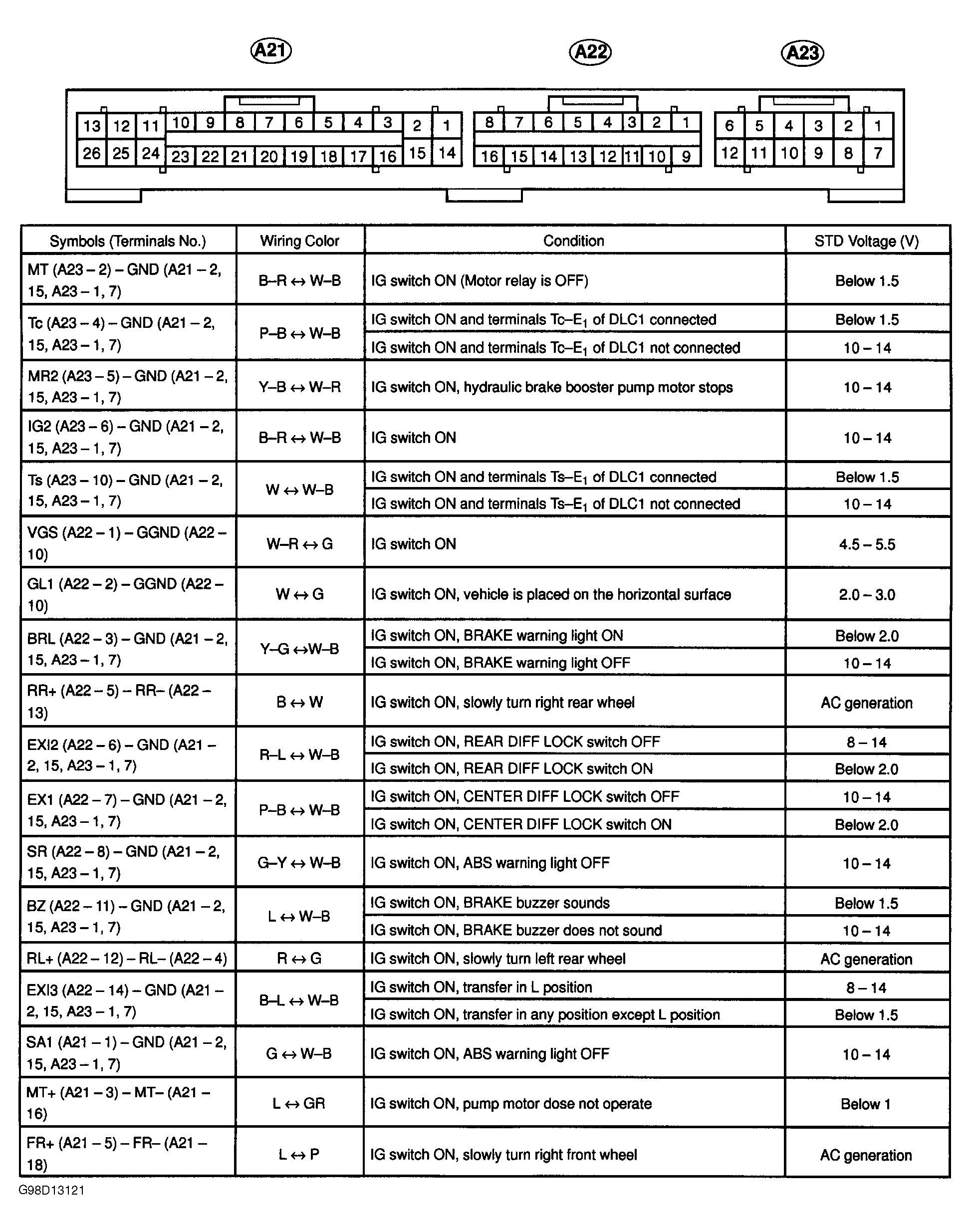

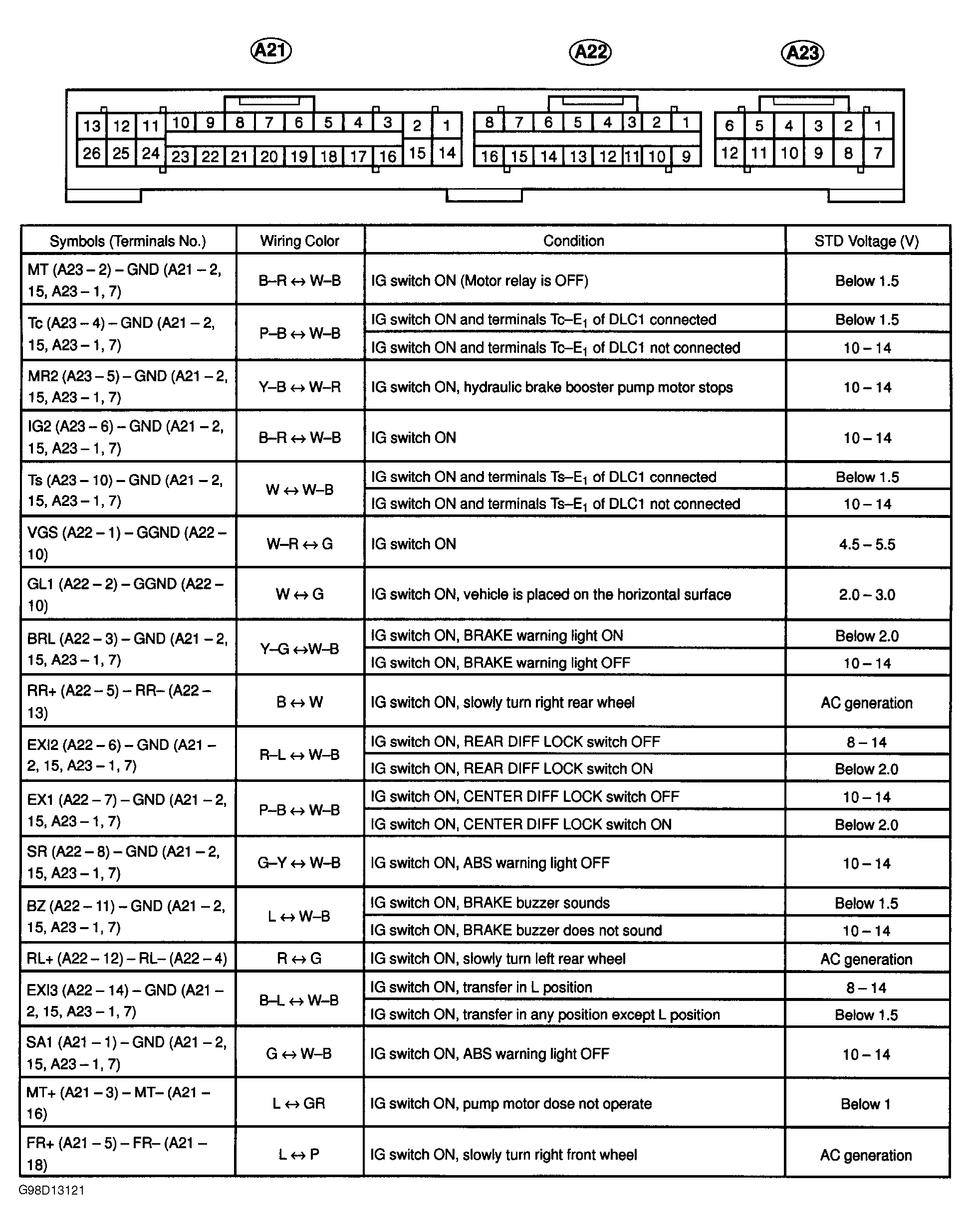

Fig 1: ABS ECU Pin Voltage Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

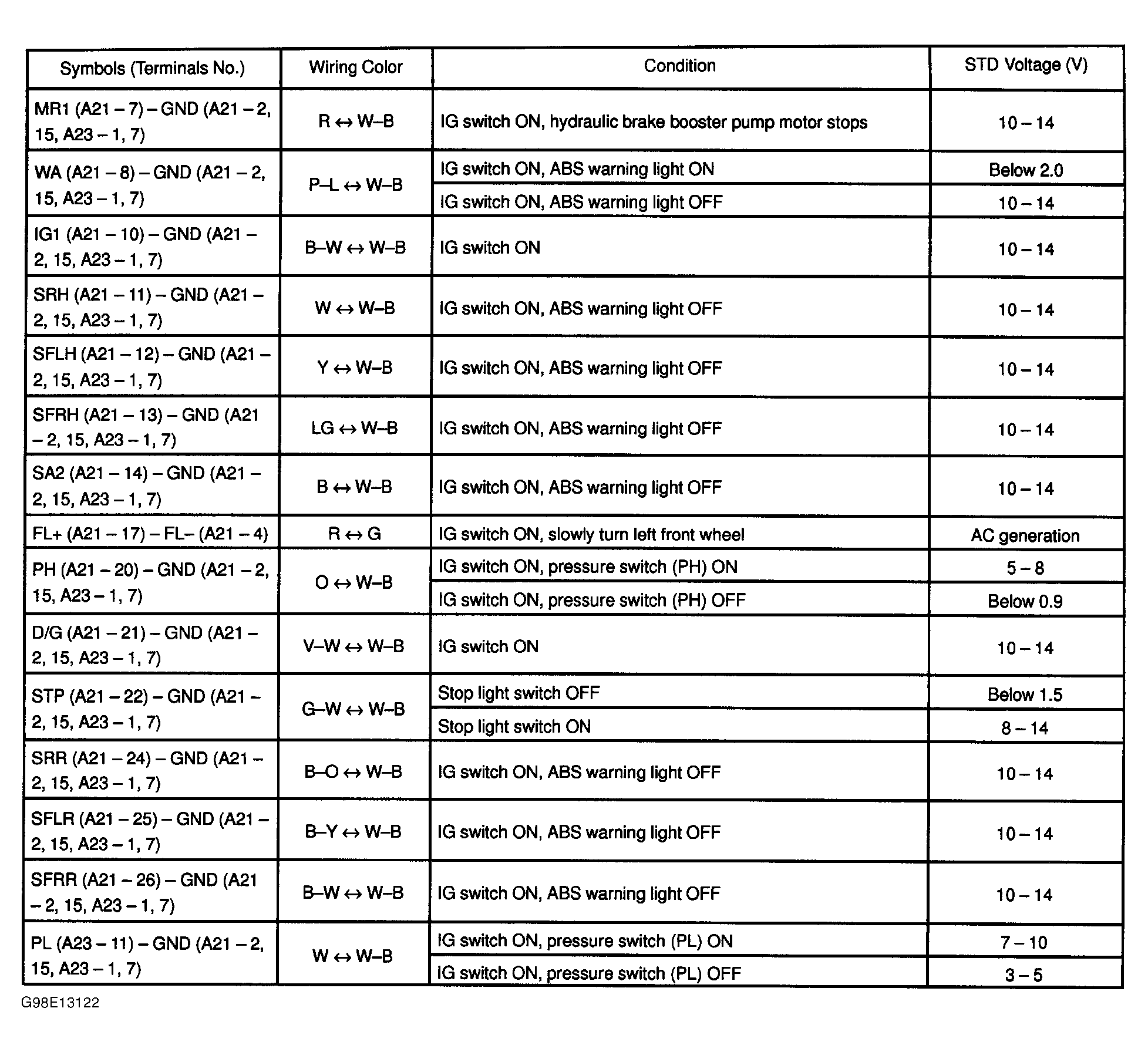

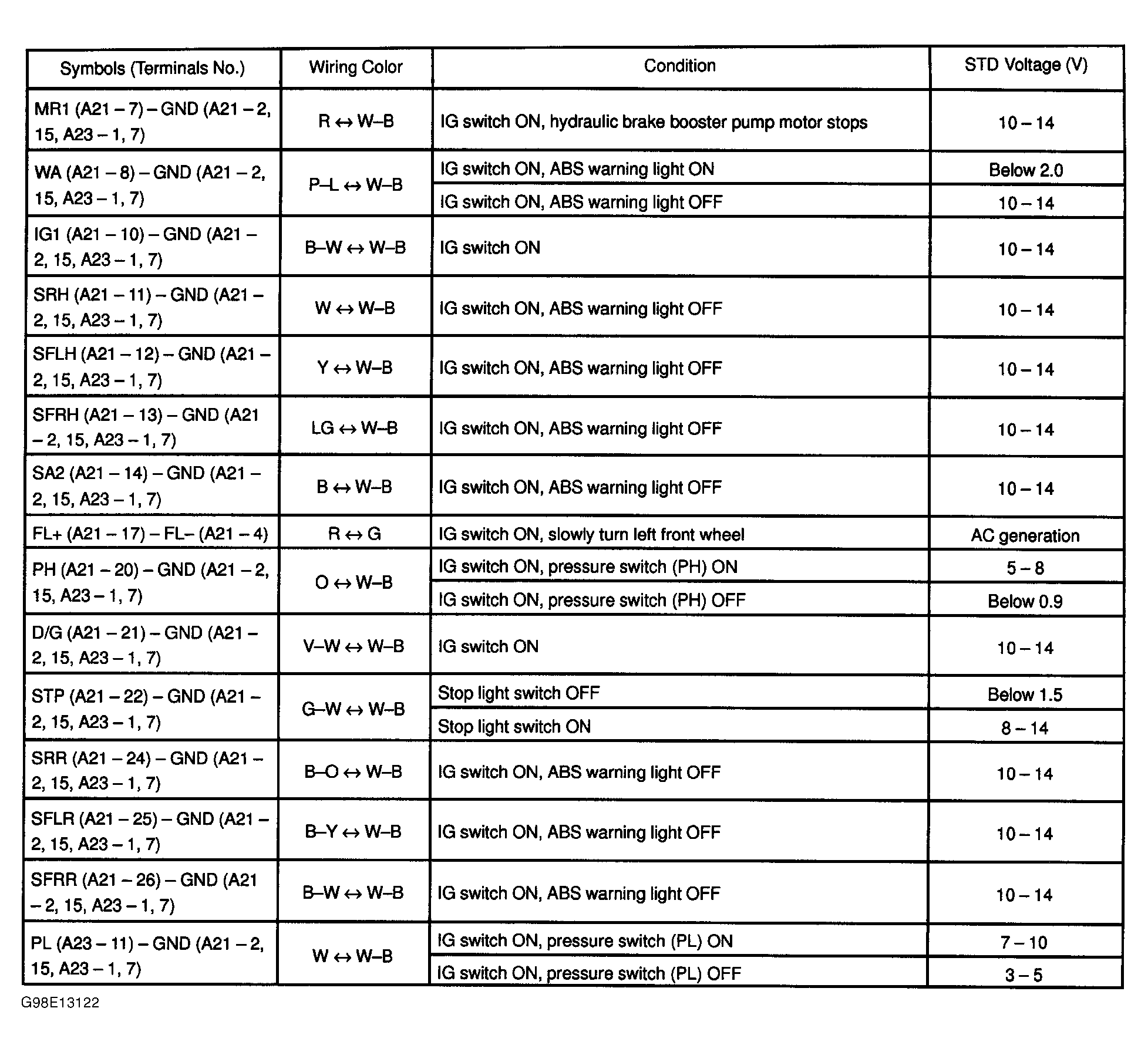

Fig 2: ABS ECU Pin Voltage Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
