Front Planetary Gear: Reassembly

Coat thrust bearings and races with petroleum jelly. Install thrust bearings and races, ensuring tabs on race align with planetary gear. Install races in planetary ring gear and planetary gear with the flat side against the gear surface. See Fig 1.

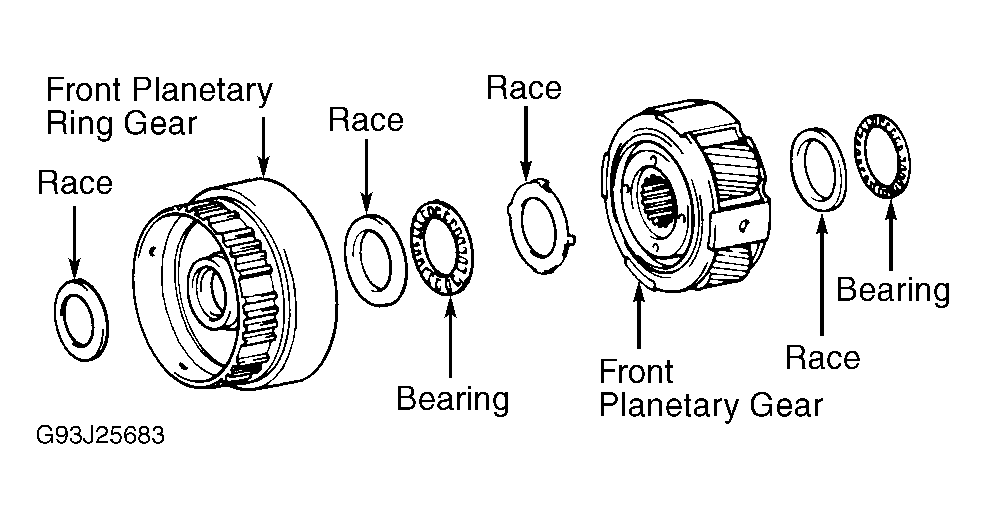

Fig 1: Exploded View Of Front Planetary Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
