Oil Pump: Reassembly

Install oil seal until seal is even with outer edge of pump housing. Place stator shaft in torque converter while working on pump. Coat all components with ATF. See Fig 1.
Align reference marks on gears during installation. To complete reassembly, reverse disassembly procedure. Tighten bolts to specification. DO NOT over expand seal rings during installation. Ensure seal rings move smoothly after installation. Ensure drive gear rotates smoothly when installed in torque converter.

Fig 1: Exploded View Of Oil Pump Assembly

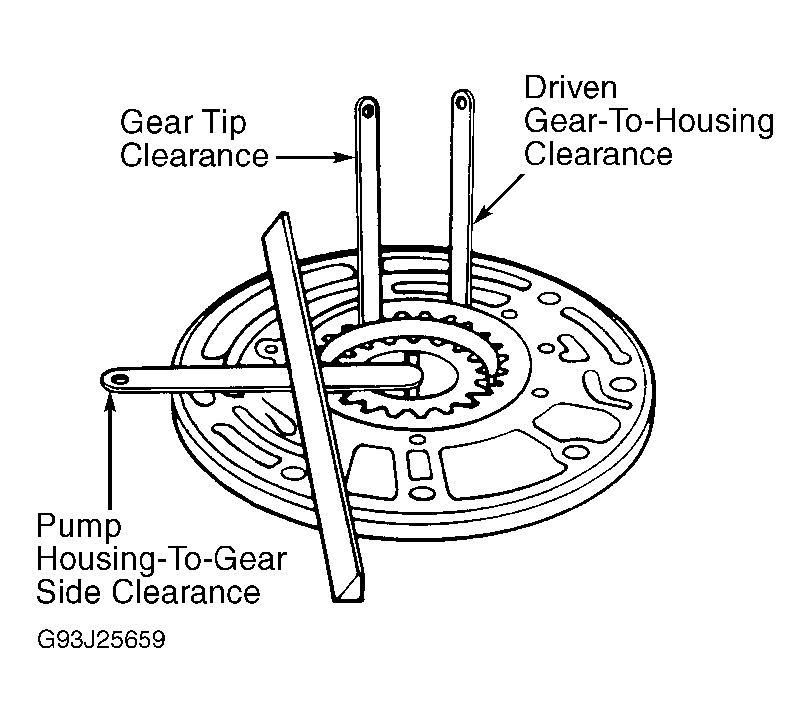

Fig 2: Measuring Oil Pump Clearances
